6.2.4 Flap for the 230 V connection, square
Opening:  Reach into the recessed grip (Fig. 52,1) on the external flap (Fig. 52,2) and
swing the external flap upward.
Closing:
 Swivel the external flap downwards and press it shut.
6.2.5 Cap for the drinking water filler neck
Opening:  Insert the key in the locking cylinder (Fig. 53,2 or Fig. 54,2) and turn it in an
anticlockwise direction.
 Remove cap.
Closing:
 Insert the cap in the drinking water filler neck.
 Turn key in a clockwise direction.
 Remove the key.

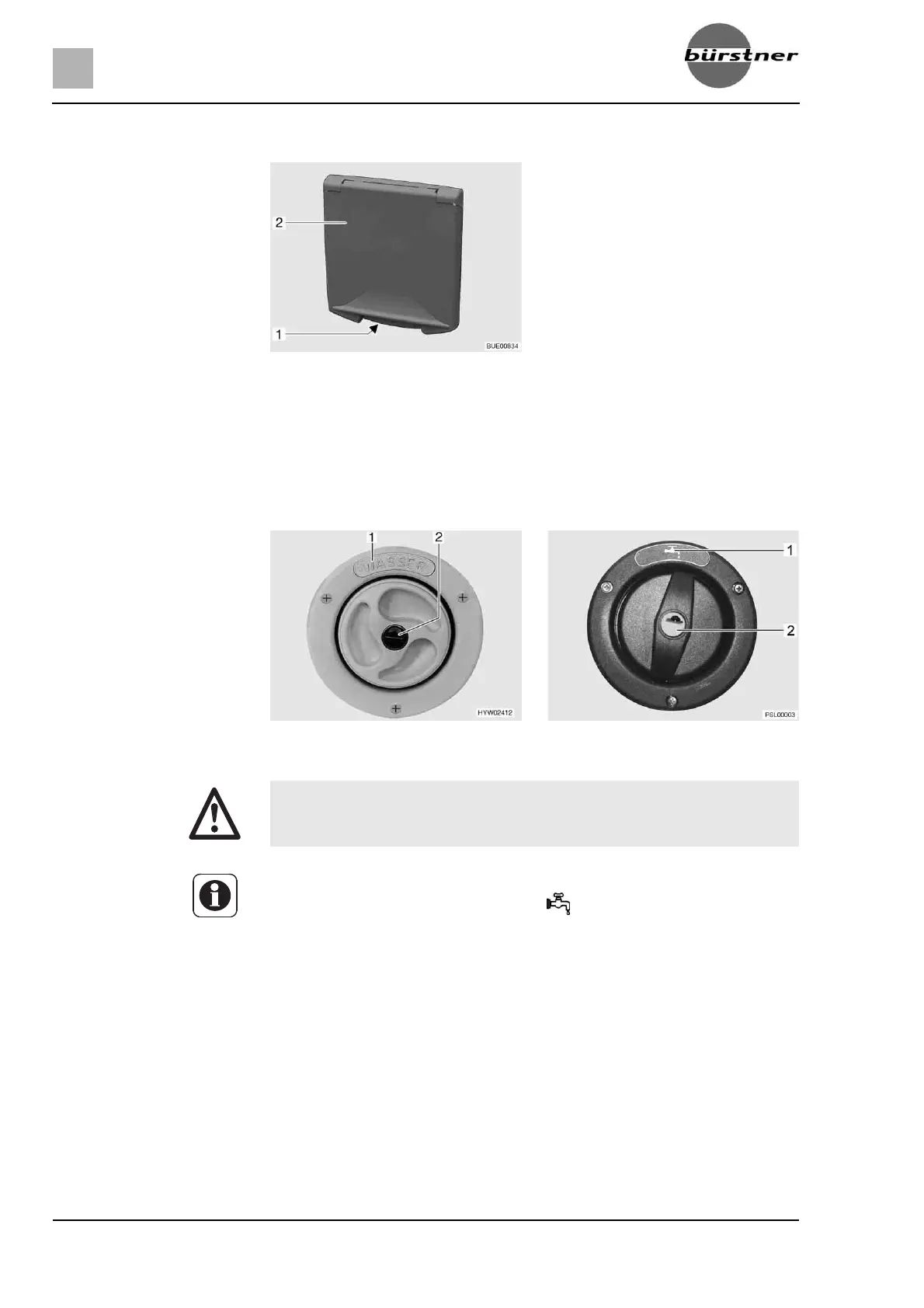

Fig. 52 Flap for the 230 V connection
1 Recessed grip
2 External flap
Fig. 53 Cap for the drinking water filler
neck
Fig. 54 Cap for the drinking water filler
neck (alternative)
X The cap for the drinking water filler neck and for the fuel filler neck are
very similar. Before filling the tank, always check the label.
Z The drinking water filler neck is labelled by the word "WASSER" (water)
(Fig. 53,1) or marked by the symbol " " (Fig. 54,1).
