Burstner I 2012 - Front Lights (Variant)

223I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Maintenance
12
 Put in a new bulb.
 Reassemble the direction indicator in the reverse order.
Daytime running light The lights have LEDs. To change the LEDs, contact an authorised dealer or a
service centre.
Fog light The bulbs are changed in the engine compartment.
 Open bonnet (see chapter 4).
 Put your hand behind the fog light and remove rubber cap (Fig. 256,1) from
lamp housing.
 Press metal clip (Fig. 256,2) together and release from holder.
 Remove bulb (Fig. 256,3) with cable from lamp housing.
 Put in a new bulb.
 Reassemble the lamp in the reverse order.
12.8.2 Front lights (variant)
Low beam/main beam The bulbs are changed in the engine compartment.

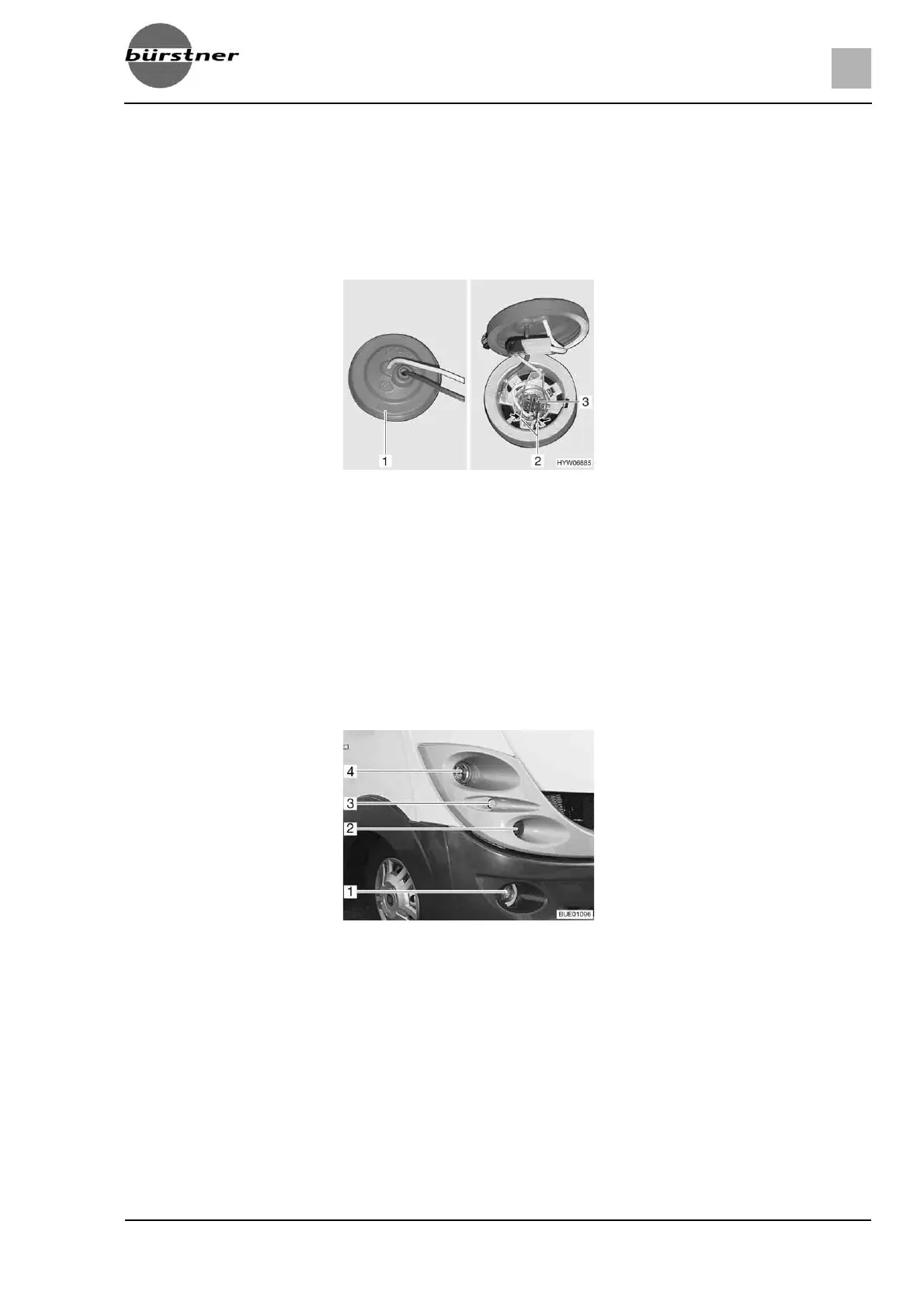

Fig. 256 Fog light
Fig. 257 Front lights
1 Fog light
2 Direction indicator
3 Parking light
4 Main beam/low beam
