202 I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Sanitary fittings
10
Removal of sewage tank: Push the slide lever (Fig. 246,1) in. The sliding trap is closed. To empty, the
sliding trap of the toilet must be closed.
Open the flap for the sewage tank on the outside of the vehicle.
Pull up the retaining clip (Fig. 243,3) and use the handle (Fig. 243,2) to lift
the sewage tank (Fig. 243,1) straight up.
Tilt the sewage tank slightly and remove fully. The display "Sewage tank
removed" (Fig. 247,4) lights up on the control and operating unit.
Emptying the sewage tank:
Take the sewage tank to a disposal point especially provided for this pur-
pose.
Turn the drainage neck as far upwards as possible.
Remove the cap of the drainage neck.
Point the sewage tank with the drainage neck downwards.
Activate the aeration knob with your thumb. The sewage tank empties.
Flush the sewage tank with water.
Close drainage neck with the cap.
Return the drainage neck to its original position.
Push the sewage tank back to its original position without applying any
force.
Ensure that the sewage tank is secured by the retaining clip.
Lock the flap for the sewage tank.

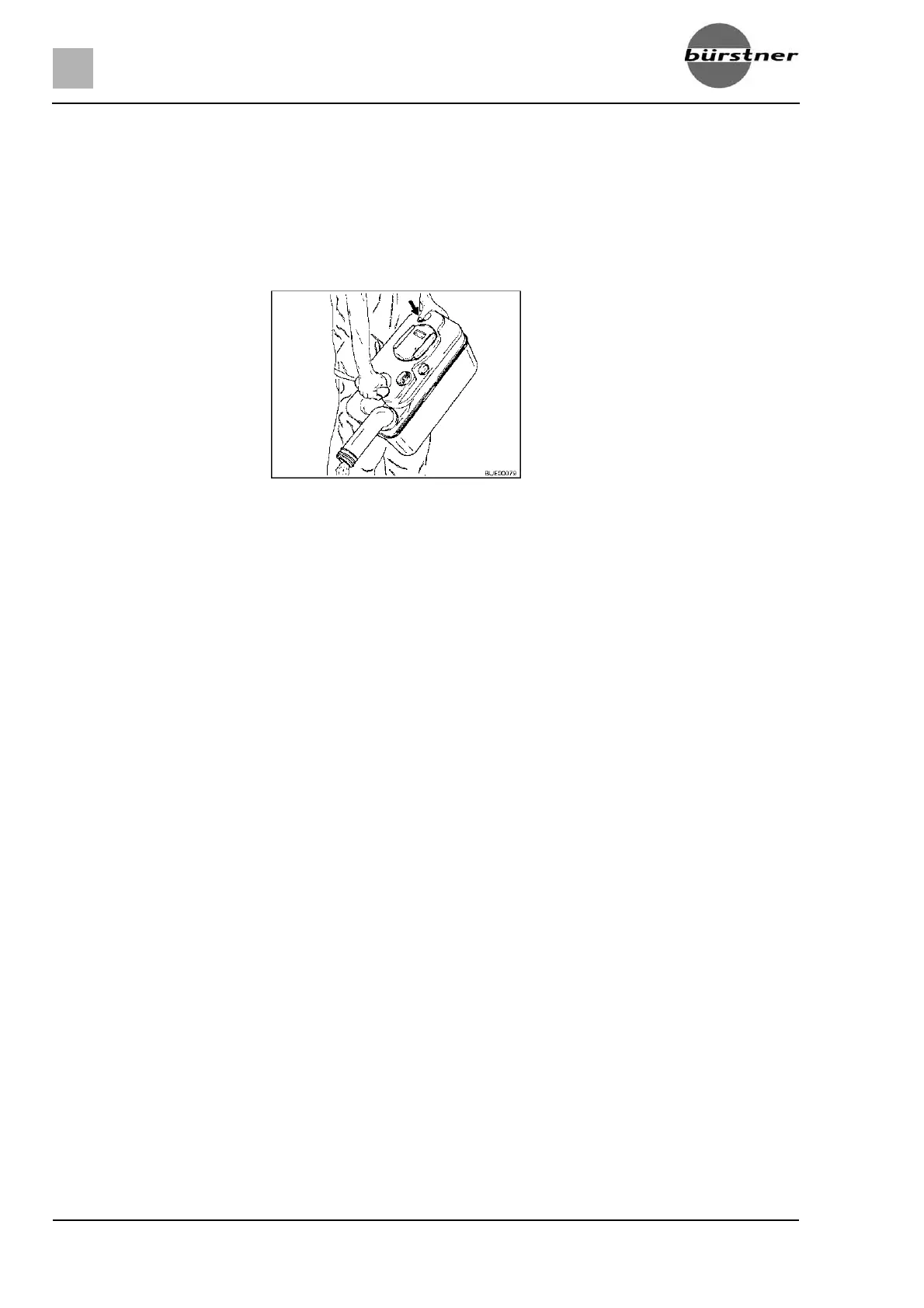

Fig. 248 Emptying the sewage tank
