28 I-Modell - 11/12 - Ausgabe 09/11 - 2096165 - BUE-0056-05EN
Before the journey
3
The load rack permits transport of a load weighing up to 130 kg. For the trans-
port of the load different attachments are available. They are e.g. bike rack or
a transport box. Our authorised dealers and service centres will be happy to
advise you.
The load rack (Fig. 5) permits transport of a motorcycle or a motor scooter
weighing up to 130 kg.
Scope of delivery The following parts belong to the scope of delivery:
z Rack trough (Fig. 5,3) and retaining clip (Fig. 5,1) with attachment to
vehicle (Fig. 6)
z Rear lights (Fig. 5,4)
z Vehicle licence plate light (Fig. 5,5)
z 13-pole Jäger System plug
z Ramp (Fig. 5,2)
Attachment to vehicle The two side members (Fig. 6,1) of the load rack are fixed to the floor of the
vehicle by means of tommy screws (Fig. 6,2) on the square drives (Fig. 6,4).
The load rack is secured by a bolt (Fig. 6,3) with locking ring.
Entry in the vehicle
documents
Have your dealer or service centre install the add-on parts. They will also take
care of all the formalities for you.
X Always make sure to store the load roadworthy and secure it against
falling.
X The load may not jut out beyond the maximum width of the vehicle. The
lighting and the official licence plate on the load rack may not be covered
by the load.
Z The load rack and caravan coupling may not be used simultaneously.
Z An entry must be made in the vehicle documents in order to attach a load
rack. The required documents are enclosed with the load rack.
Z Have your dealer or service centre install the load rack.
Z Observe the country-specific regulations.
Z Also read the manufacturer's instruction manual.

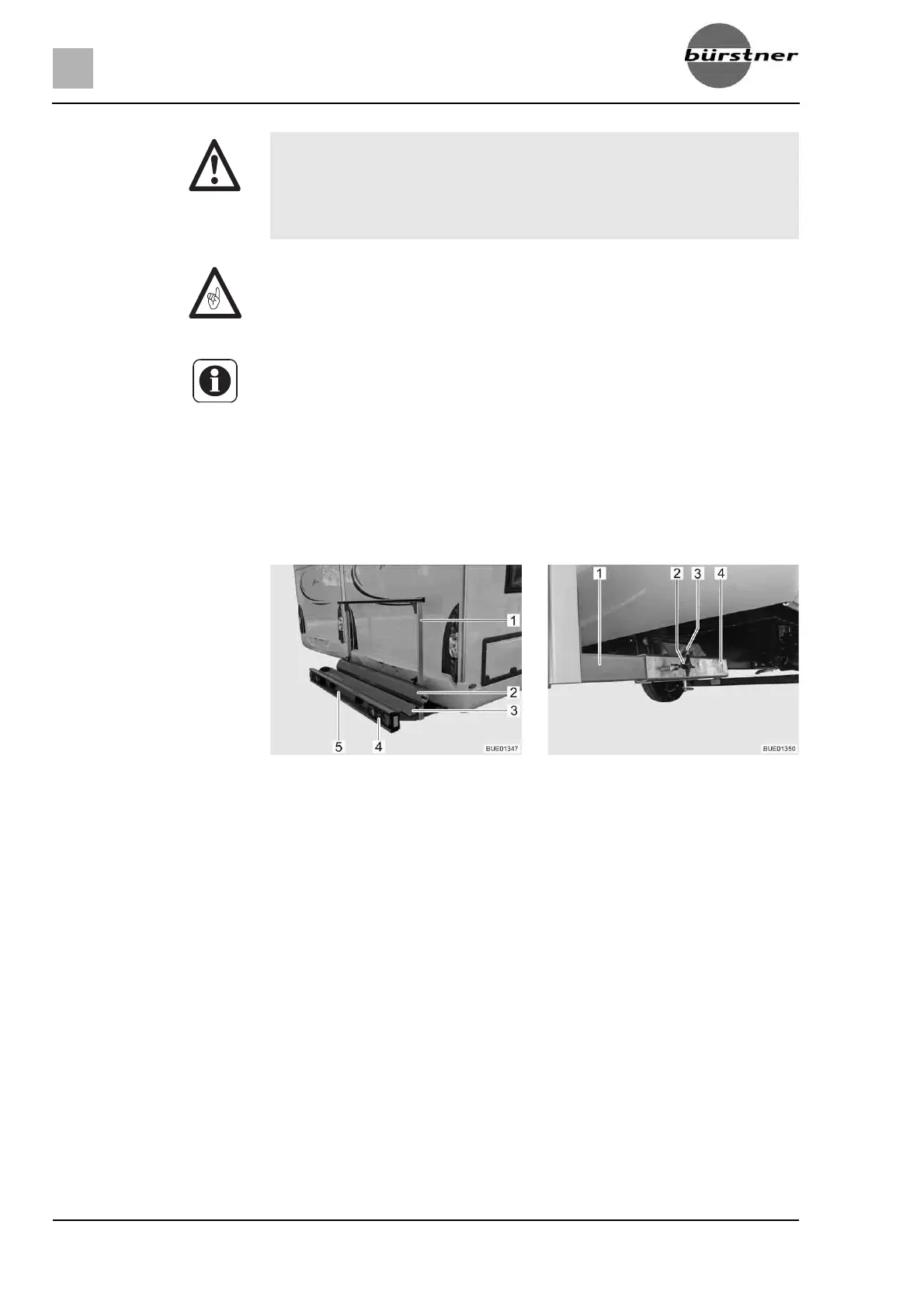

Fig. 5 Load rack Fig. 6 Attachment to vehicle
