The pull-down bed is located in the driver's cabin above the seats.
Opening the pull-down bed:
 Switch off the lamps underneath the pull-down bed.
 Rotate the driver's and front passenger's seats in the direction of travel,
lock in position, push completely forwards and turn the backrest as far back
as possible.
 Close the shade in the driver's cabin.
 Push the release knob (Fig. 102,1). The lock is released.
 With both hands, pull the pull-down bed down as far as it will go.
 Make sure that the pull-down bed is in the lower end position and is not
resting on obstacles such as headrests, cushions or similar.
Closing the pull-down bed:
 Switch off the lamps in the pull-down bed.
 Use both hands to push pull-down bed upwards as far as it will go. When
doing this, ensure that the snap latch engages audibly in the locking
bracket.
 Check that the pull-down bed is locked correctly. To do this, pull down the
pull-down bed firmly.
Safety net If fitted, the safety net (Fig. 103,2) and the retaining belts are located beneath
the mattress of the pull-down bed. Only use the safety net if persons are
already in the pull-down bed.
Setting up:
 Attach retaining belts (Fig. 103,1) to the hooks on the ceiling.
Access ladder Always use the provided access ladder to climb up to the pull-down bed.
Attaching the foldable step
ladder:
 Hook step ladder (Fig. 103,5) to the pull-down bed by attaching the two
hooks (Fig. 103,4) in the holding bar (Fig. 103,3).
 Grasp the upper edge of the folded-up part of the step ladder and unfold it
so that all four feet are securely on the ground.

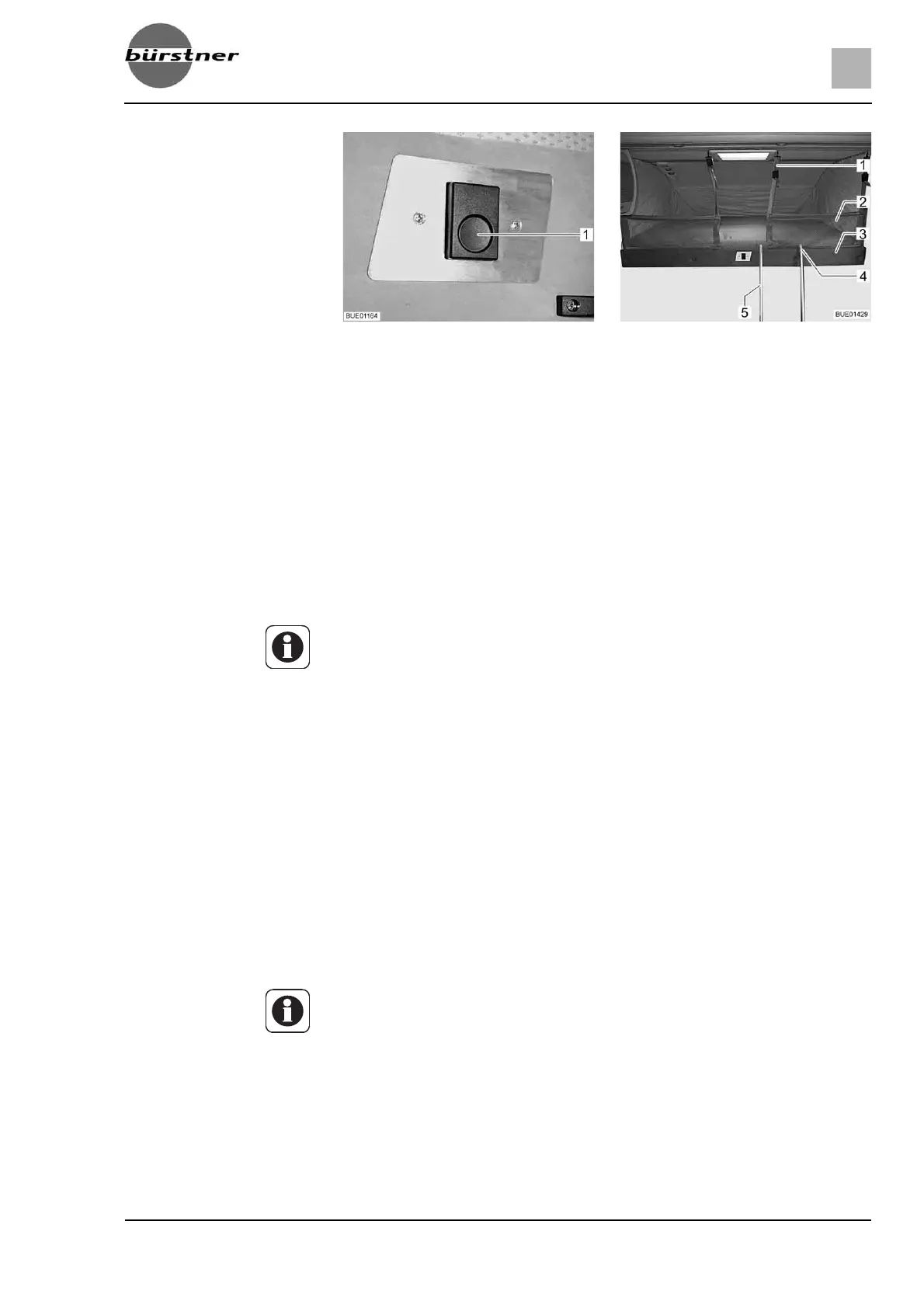

Fig. 102 Lock Fig. 103 Pull-down bed complete with
applied safety net
Z When closing the pull-down bed, pull the side fabric panels inwards. This
prevents the fabric from getting trapped in the lock of the pull-down bed.
Z The access ladder will differ according to the model.
