Making ready for
operation
After every power interruption (e.g. lay-up over winter), the electrical drive
must be made ready for operation again. To do so carry out a reference run.
Carrying out a reference
run:
Using the arrow key (Fig. 105,3) on the manual control unit, bring the pull-
down bed down as far as it will go or into any intermediate position.
Press the "R" key (Fig. 105,2) three times in a row.
Within 10 seconds, bring the pull-down bed upwards using the arrow key
(Fig. 105,4).
When the end position is reached, a beeping noise is emitted. Release the
arrow key.
Opening the pull-down bed:
Switch off the lamps underneath the pull-down bed.
On the manual control unit (Fig. 105,1), press the arrow key (Fig. 105,3)
and keep it pressed until the pull-down bed has moved downwards to its
end position.
Make sure that the pull-down bed is in the lower end position and is not
resting on obstacles such as headrests, cushions or similar.
Closing the pull-down bed:
Switch off the reading lamps on the ceiling.
On the manual control unit (Fig. 105,1), press the arrow key (Fig. 105,4)
and keep it pressed until the pull-down bed has moved up into its end posi-
tion.
Ensure that there are no objects stuck between the roof and the pull-down
bed.
Z Only raise or lower the pull-down bed if it is loaded with a maximum of
15 kg. This maximum load includes the contents of the wall-mounted cup-
board at the base of the pull-down bed. If the pull-down bed is overloaded,
the overload protection switches off the lifting motor. However, the lifting
mechanism can still be damaged.
Z Before starting a journey, the pull-down bed must be brought into the
uppermost end position. No objects must be stuck between the roof and
the pull-down bed.

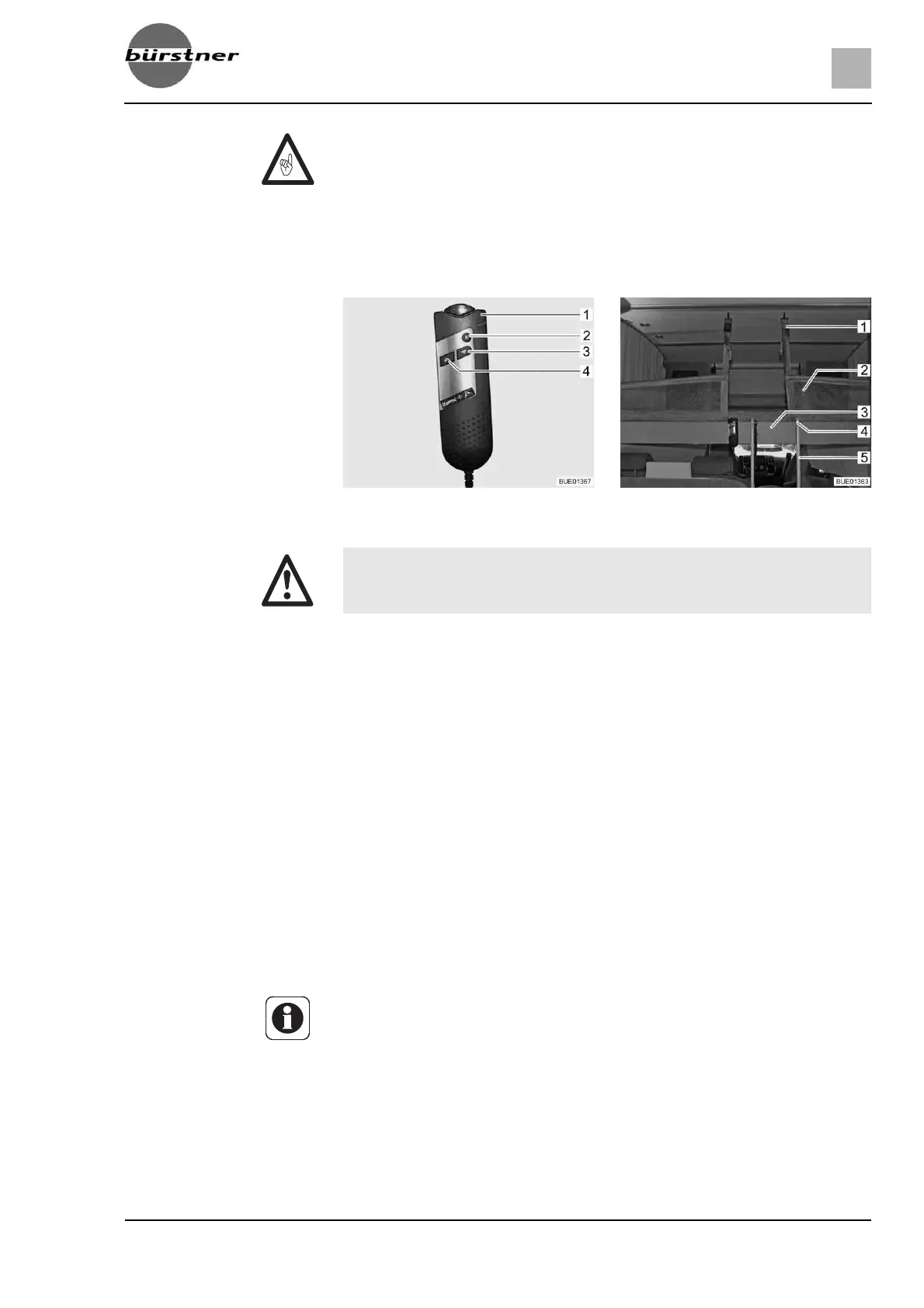

Fig. 105 Manual control unit Fig. 106 Pull-down bed complete with
applied safety net
X When making ready for operation, overload protection is not in use.
Z When closing the pull-down bed, pull the side fabric panels inwards. This
prevents the fabric from getting trapped in the lock of the pull-down bed.
