Retracting:
 On the manual control unit (Fig. 113,3) push the " " button (Fig. 113,2)
and keep it pressed. The foot section is retracted. The head sections are
raised.
Extending:
 On the manual control unit (Fig. 113,3) push the " " button (Fig. 113,1)
and keep it pressed. The foot section is extended. The head sections are
lowered.
Adjusting the head sections:
 On the manual control unit (Fig. 113,3), press the " " button (Fig. 113,2)
or " " button (Fig. 113,1) until the desired position is reached.
The head sections remain in the desired position.
Emergency operation Proceed as follows if the bed can no longer be adjusted via the manual control
unit:
 Remove the connection (e.g. pin and cotter pin (Fig. 114,1 and 3)) between
the push rod (Fig. 114,2) and the slatted frame (Fig. 114,4).
 Slowly push the slatted frame all the way forward. When doing this, hold
onto the head sections of the slatted frames.
 Contact customer service.

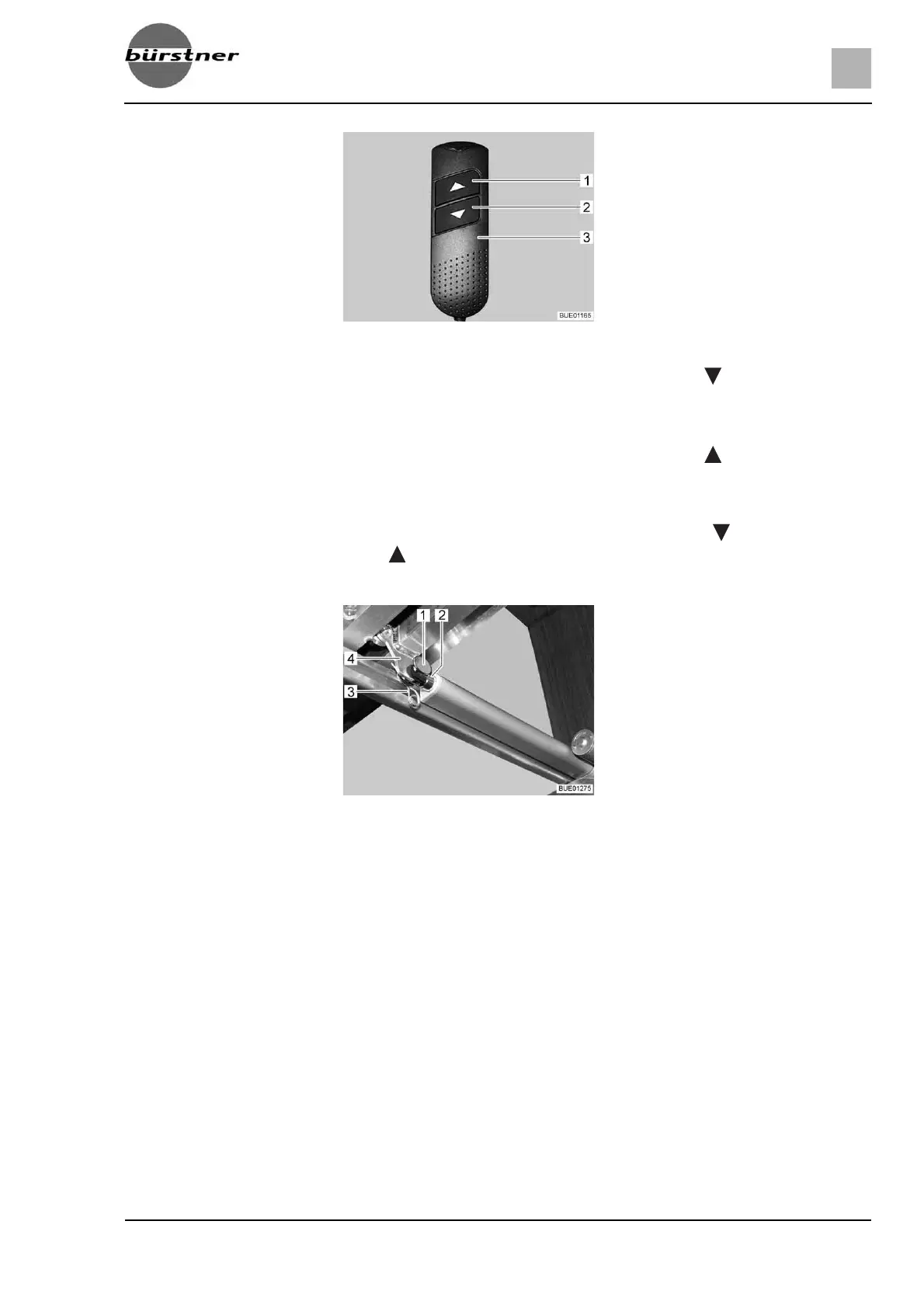

Fig. 113 Manual control unit
Fig. 114 Drive
