Appendix A Assembly Drawings Page A-55
Table A-45: Terminal Block Assembly, Front Panel, BK730A-2 (9103890A)
Item Part Number Quantity Description Reference
1 615021 1 T-Rail, DIN, 10"
2 9103436 13 Terminal block, Z-roofstyle, ZDU 4-2/4AN
3 9103437 2 Terminal block, Z-roofstyle, ground, ZPE 4-2/4AN
4 9103438 10 End plate, ZAP ZDU 4-2/4AN
5 9103439 3 Cross-connection, ZQV 4/2
6 9103440 2 Fuse terminal, ZSI 2.5/2, 1/4 X 1 1/4, 10A
7 9103442 4 End bracket, EW 35
8 9103465 1 Power Supply, Switching, 12V
9 9103685 1 Relay, 12 VDC, SPDT, Din Rail Mounting

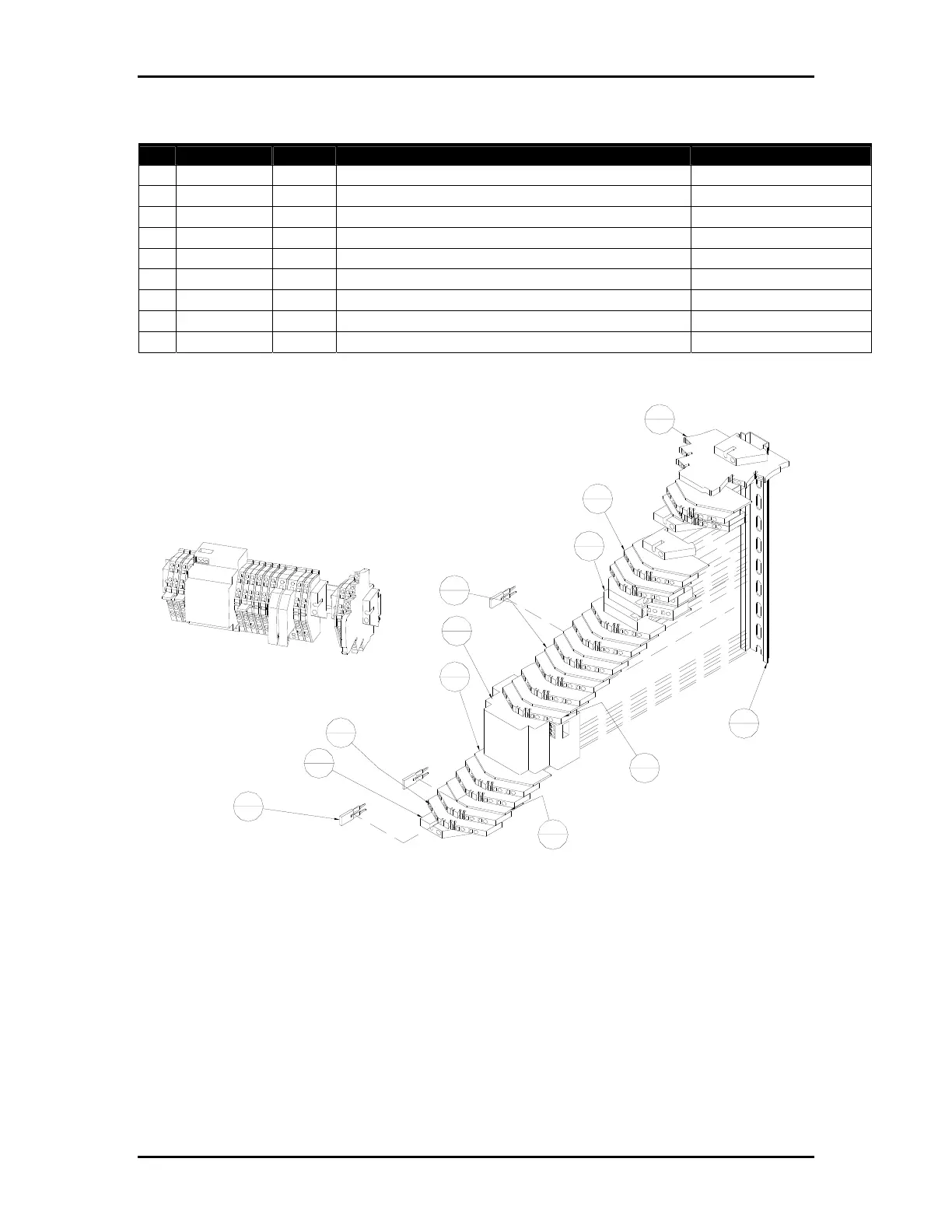

Figure A-47: Terminal Block Assembly, Front Panel, BK730A-2 (9103890A)
1
1
9
1
5
3
8
1
4
10
4
10
7
4
2
13
3
2
4
10
6
2
3
2
