BUSKRO BK730-2 - Page 133

Appendix A Assembly Drawings Page A-54
Buskro Ltd. BK730-2 Tabber
Table A-44: Front Panel Assembly, Tabber Version 2 (9103883A)
Item Part Number Quantity Description Reference
1 402520 2 Screw, BHCS, 6-32 UNC x 3/8"
2 404510 6 Screw, BHCS, 10-32 UNF x 1/4"
3 420006 2 Nut, 6-32 UNC
4 600005 1 DC Controller, 90 VDC
5 606014 1 Cable, #22-4, Shielded, 18"
6 606040 1 Cable, #14-2, SJOW, BK/WH, 22"
7 606531 1 Cable, #22-2, Shielded, 12"
8 640300 1 Metal Oxide Varistor, 120 VAC
9 640301 1 Diode
10 700321 1 Cover, Dart Control
11 803020 1 Label, High Voltage
12 9103686 1 Strain Relief, 1/2" NPT, 0.28-0.47" OD, Blk. Nylon
13 9103875 1 Printed Circuit Board, Dummy for Speed Control Board
14 9103883 1 Front Panel, BK730A-2
15 9103890A 1 Terminal Block Assembly, BK730A-2 Page A-55

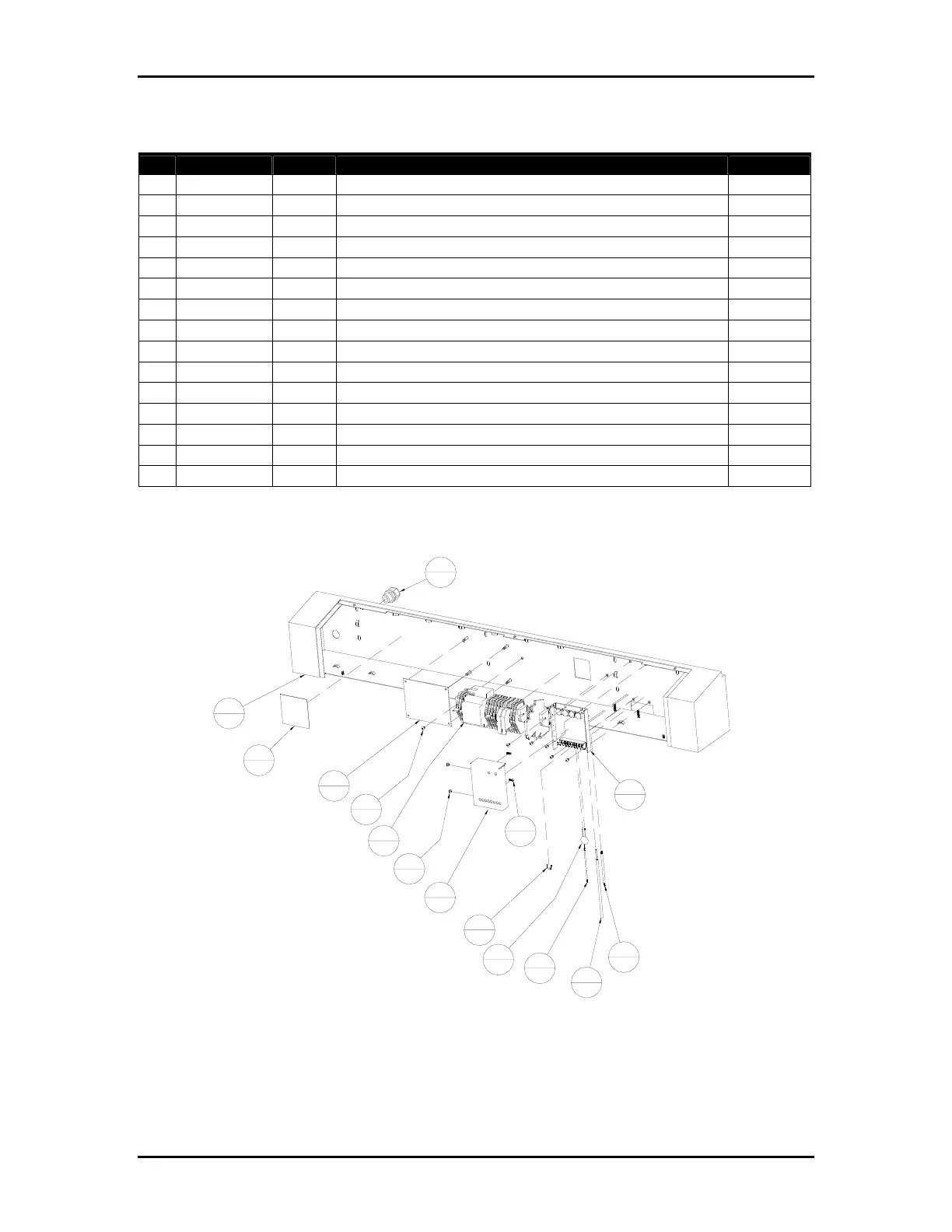

Figure A-46: Front Panel Assembly, Tabber Version 2 (9103883A)
12
1
14
1
13
1
2
6
9
1
5
1
7
1
6
1
8
1
4
1
3
2
15
1
1
2
10
1
11
1
