Appendix A Assembly Drawings Page A-53
Table A-43: Panel, Front Door Ass'y, BK730A-2 (9103882A)
Item Part Number Quantity Description Reference
1 600011 1 Potentiometer, w/Dart 600005
2 603120 1 Switch, Green Push Button
3 603121 1 Switch, Red Mushroom Push Button
4 603122 1 Switch, 2-Position Rotary Knob
5 603125 3 Switch, Locking Collar
6 603126 3 Block, N.O. Contact, Green
7 603127 3 Block, N.C. Contact, Red
8 606013 2 Cable, #22-6, Unshielded, 70"
9 606014 1 Cable, #22-4, Shielded, 75"
10 606014 1 Cable, #22-4, Shielded, 26"
11 606052 1 Cable, #14-7, Unshielded, 28"
12 609004 3 Shrink Wrap, 1/8"
13 609110 8 Connector, Push-on, 16-14 AWG, Blue
14 609530 2 Connector, Push-On, 22-18 AWG, Red, 187 Tab
15 613002 1 Knob, 36mm, Skirted
16 9102205 2 Switch, Breaker, 15A, 2 Pole, Illuminated Green
17 9102422 1 Switch, Rocker, 125VAC/4A, 250VAC/2A
18 9103882 1 Panel, Front Access Door, BK730A-2
19 9103967 1 Connector, 8-Octal, Standard Socket, Type S

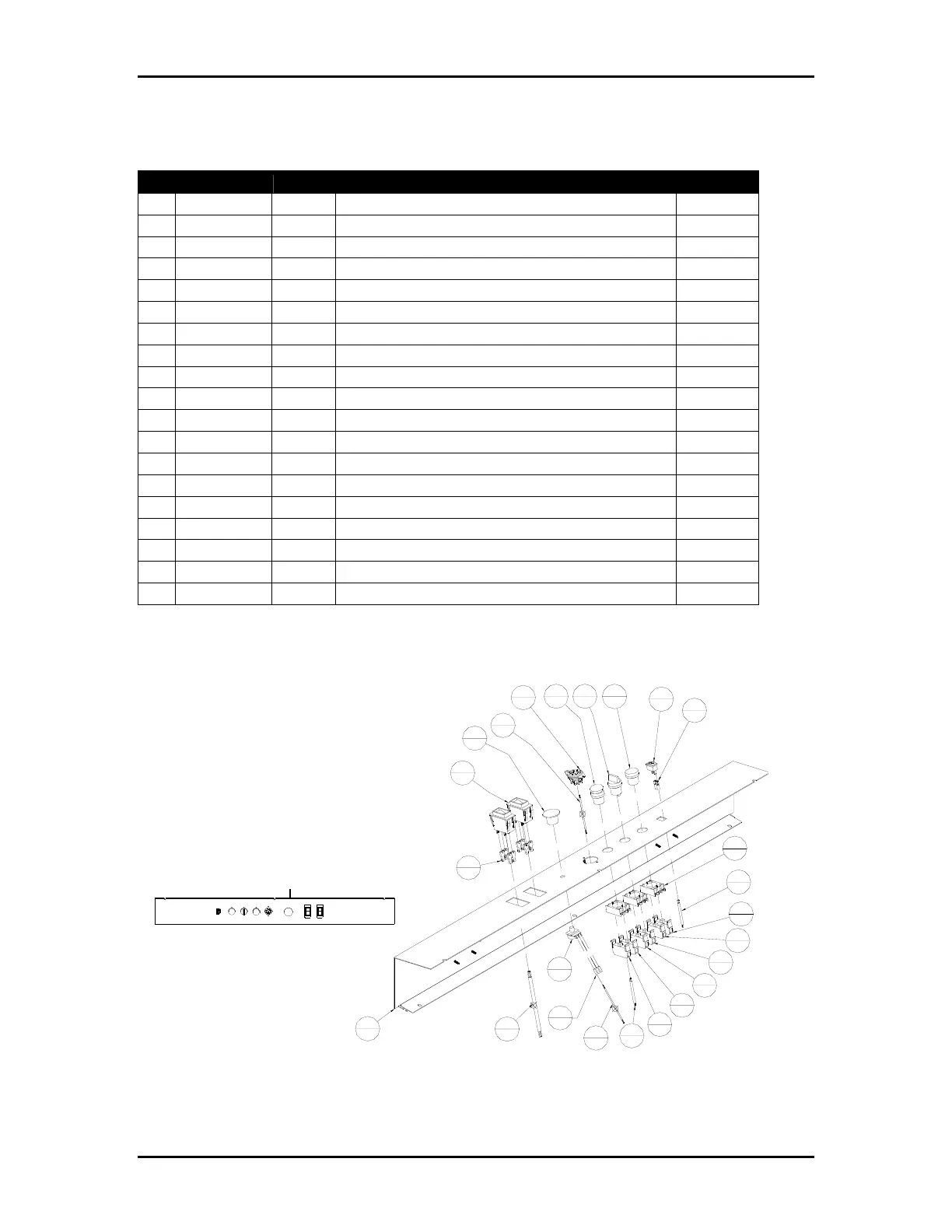

Figure A-45: Panel, Front Door Assembly, BK730A-2 (9103882A)
17
1
15
1
16
2
18
1
8
2
6
3
13
8
3
1
4
1
12
3
7
3
7
3
7
3
1
1
19
1
14
2
6
3
6
3
10
1
5
3
8
2
11
1
9
1
2
1
