Appendix A Assembly Drawings Page A-52
Table A-42: Connector Plate Harness, BK730 (700743A)
Item Part Number Quantity Description Reference
1 402010 6 Screw, FHCS, 6-32 UNC x 1/4"
2 402310 8 Screw, PHMS, 6-32 UNC x 1/4"
3 700743 1 Connector Plate, Rear, BK730
4 700743C1 1 Power Cable, Tabber
5 700743C2 1 Output Cable
6 700743C3 1 Encoder Cable
7 700743C4 1 Photo F/B Cable
8 700743C5 1 Jam Cable

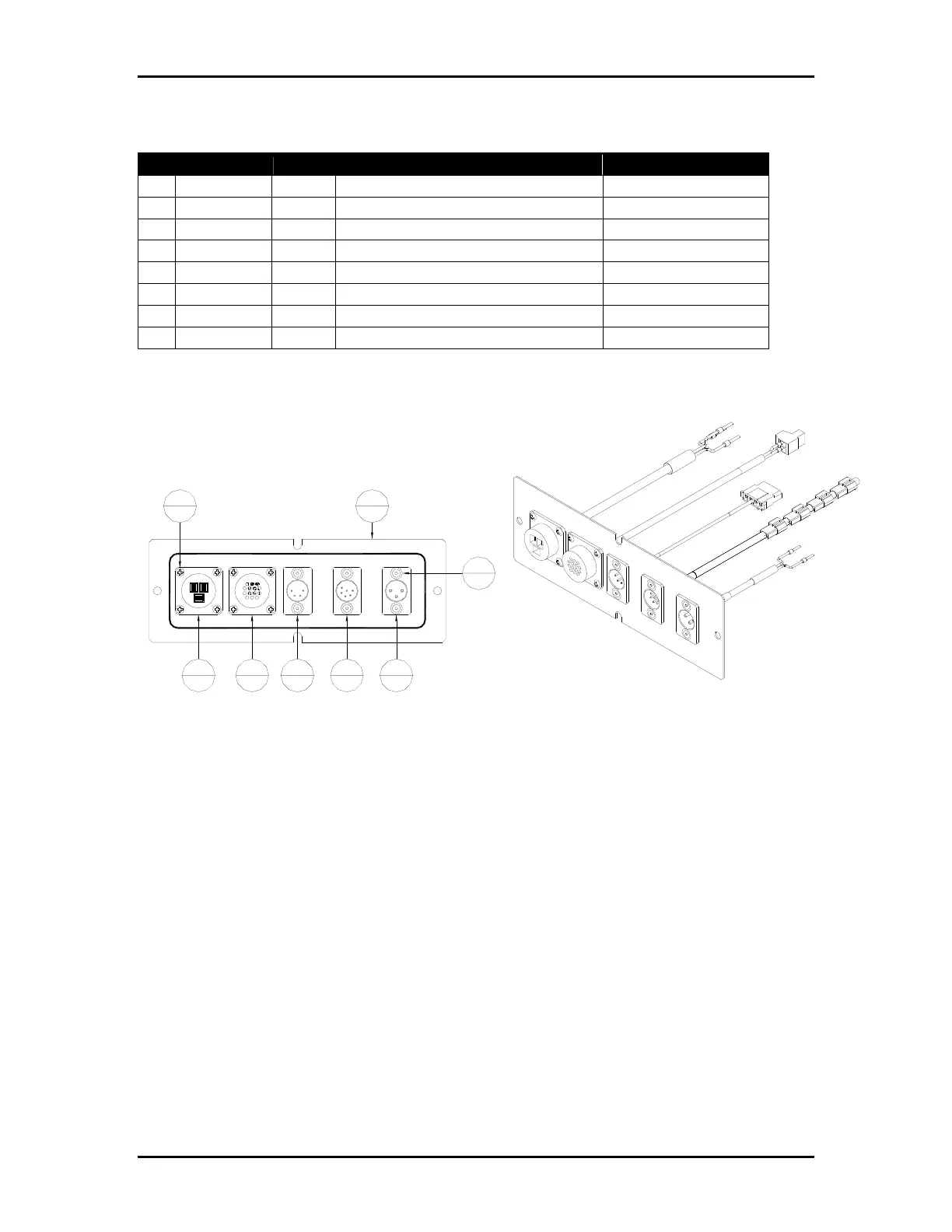

Figure A-44: Connector Plate Harness, BK730 (700743A)
4
1
5
1
6
1
7
1
8
1
2
8
1
6
3
1
ENCODER PHOTO F / BOUTPUTPOWER JAM
