BUSKRO BK730-2 - Page 139

Appendix A Assembly Drawings Page A-60
Table A-49: Power from IEC to Front Panel (9104451A)
Item Part Number Quantity Description Reference
1 606016 1 Cable, #22-15 Shielded, 68" Sleeved Length, 75" Total
2 609003 2 Shrink Wrap, 3/8" I.D., 1"
3 614113 1 Cable Clamp
4 9100197 1 14-Pin Weidmuller
5 9100785 14 Contact, Female, 24-20 AWG, Size 20 DF
6 9102054 1 Receptacle, Female, 23-57
7 9103468 14 Ferrule, #22 AWG, Torquoise

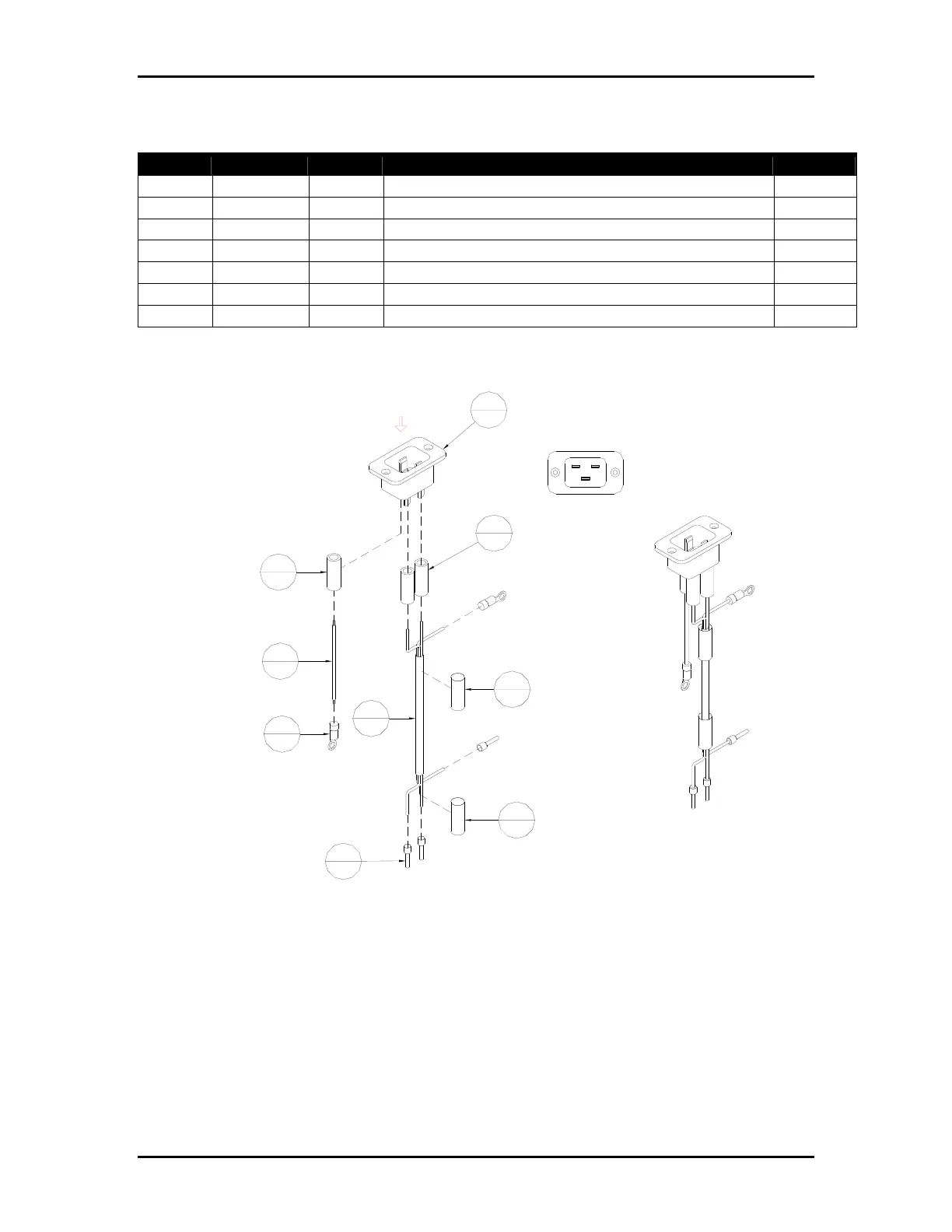

Figure A-51: Power from IEC to Front Panel (9104451A)
VIEW A
L
N
GND
VIEW A
3
2
1
4
5
6
7
8
5
1
2
3
2
3
6
1
4
2
7
3
3
2
3
2
1
1
Buskro Ltd. BK730-2 Tabber
