Table A-50: Terminal Block Assembly, Rear Panel, BK730A-2 (9104173A)
Item Part Number Quantity Description Reference
1 610104 1 Relay, 120 VAC, LY3
2 615004 1 Relay Base
3 615021 1 T-Rail, DIN, 8"
4 9103436 7 Terminal block, Z-roofstyle, ZDU 4-2/4AN
5 9103437 1 Terminal block, Z-roofstyle, ground, ZPE 4-2/4AN
6 9103438 1 End plate, ZAP ZDU 4-2/4AN
7 9103439 2 Cross-connection, ZQV 4/2
8 9103442 2 End bracket, EW 35

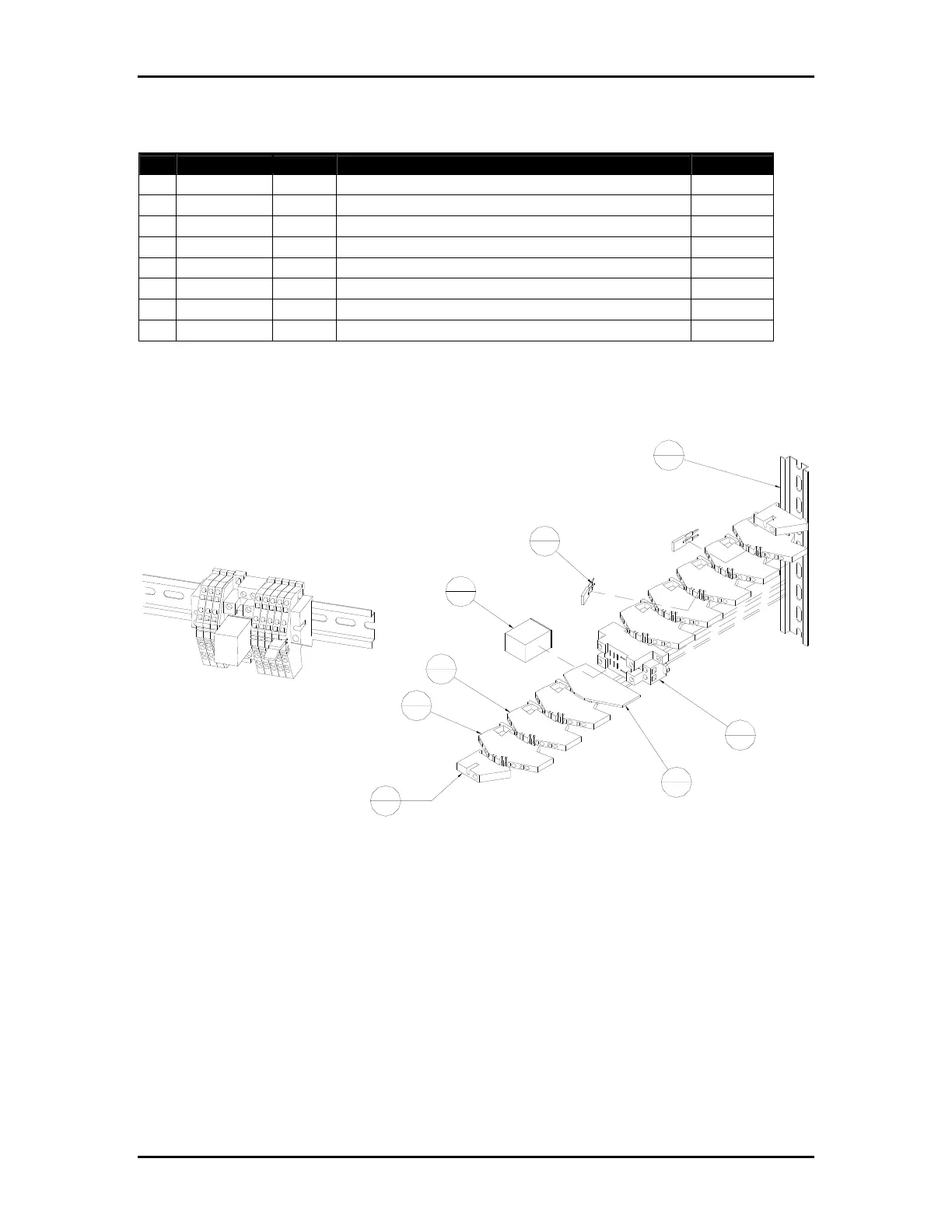

Figure A-52: Terminal Block Assembly, Rear Panel, BK730A-2 (9104173A)
8
2
5
1
4
7
1
1
2
1
3
1
6
1
7
2
