Appendix B Electrical Drawings Page B-16

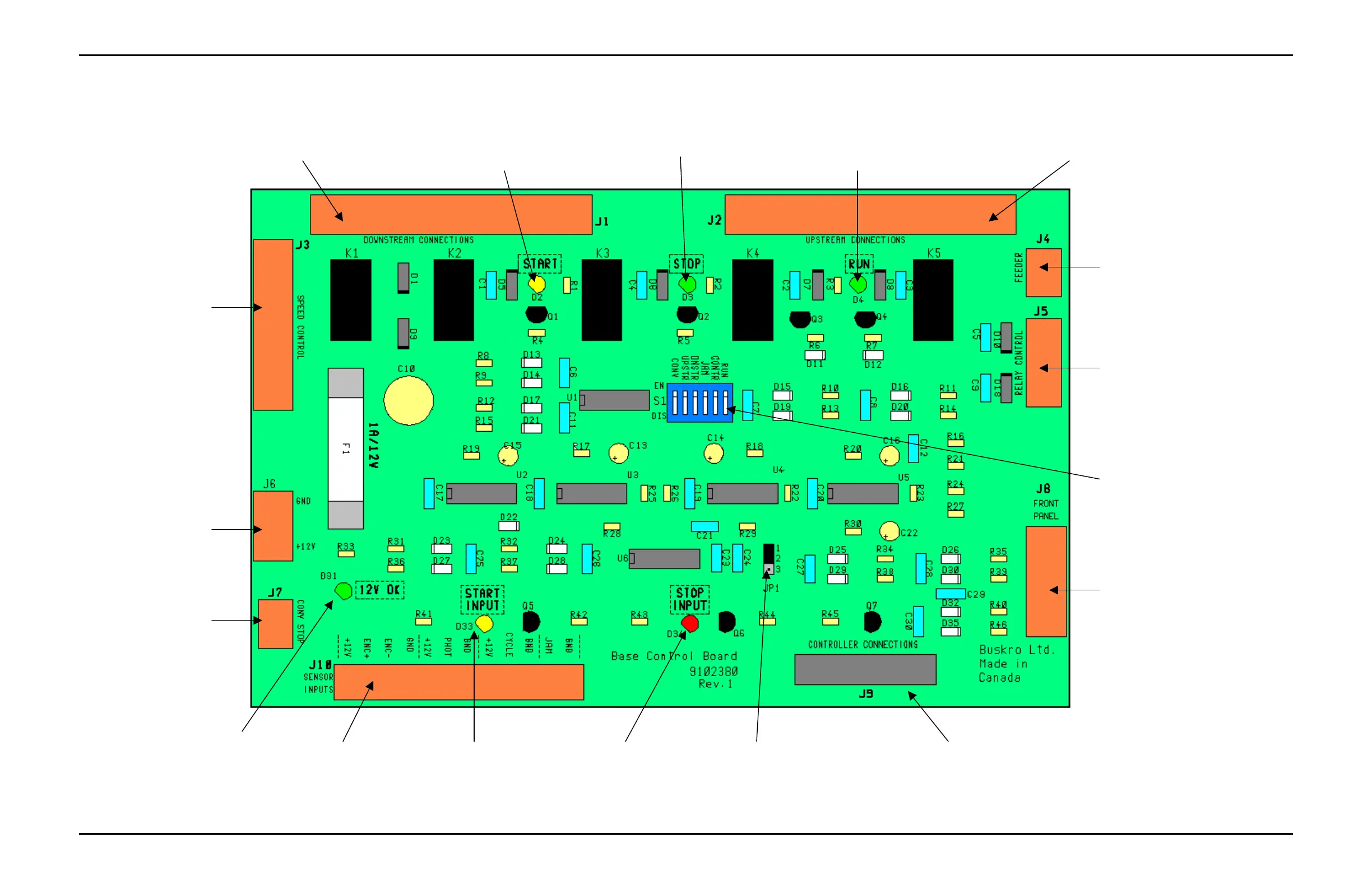

Figure B-16: The Base Control Board (p/n 9102380A)
Indicates that a RUN Signal is
applied to the Machine’s RUN
Relay:
Lit = Machine is running
Off = Machine is stopped
Indicates that a STOP Pulse is
sent to other Equipment:
Lit = NO Pulse is sent
Off = Pulse is being sent
Indicates that a START Pulse is
sent to other Equipment:
Lit = Pulse is being sent
Off = No Pulse is sent
Connections to/from an
Upstream Machine
Connections to/from a Downstream Machine
Run/Stop Control for a
Friction Feeder
Connection to optional
S
eed Control Board
Outputs to Run and Stack
Rela
s
Configuration DIP Switches
Power Connector
Connection to Front Panel Controls
STOP Input from a
Conveyor
Indicates that Power is
applied to Board
Indicates that a START Input is
received.
Lit = Input Received
Off = No Input
Indicates that a STOP Input is
received
Lit = Input Present
Off = No Input
Sensor Connections JAM Response Configuration Jumper Connections to Control Computer
Buskro Ltd. BK730-2 Tabber
