Configuring 60 GHz cnWave™ 189
These are the C-VLAN tag properties of added tag.

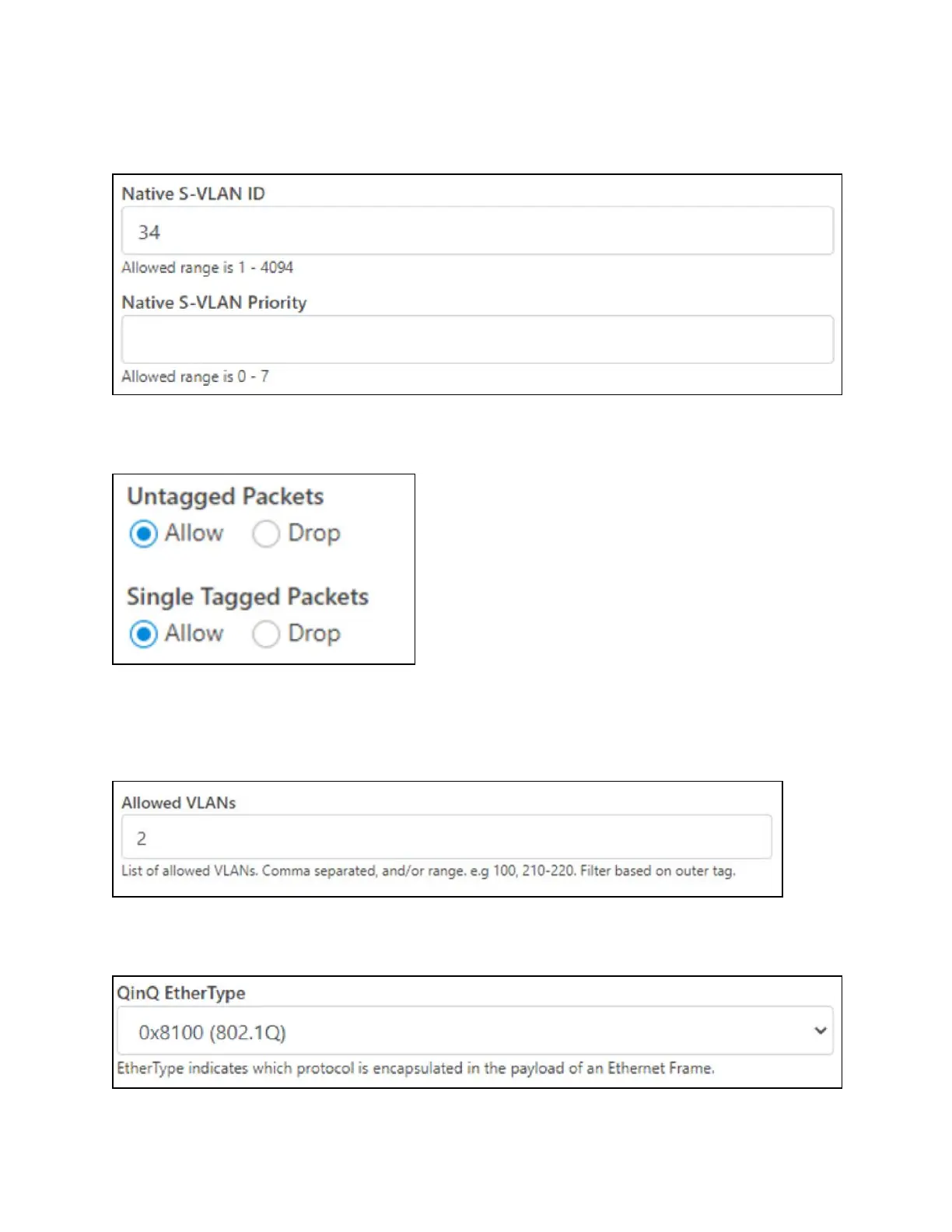

Figure 199:
Native S-VLAN ID and priority
These are the S-VLAN tag properties of the added outer tag.
Figure 200:
Untagged and Single tagged packets
In QinQ mode, the above options allow dropping untagged/single-tagged ingress packets. Native C-
VLAN fields are not necessary only when dropping single-tagged packets. Native S-VLAN fields are not
necessary when dropping untagged and single tagged packets.
Figure 201:
Allowed VLANs
Allow only the listed range of VLAN IDs. VLAN ID of the outer tag is used for this check.
Figure 202:
QinQ EtherType
