Configuring 60 GHz cnWave™ 190
QinQ EtherType is used while adding an outer tag. There are no other checks for EtherType.

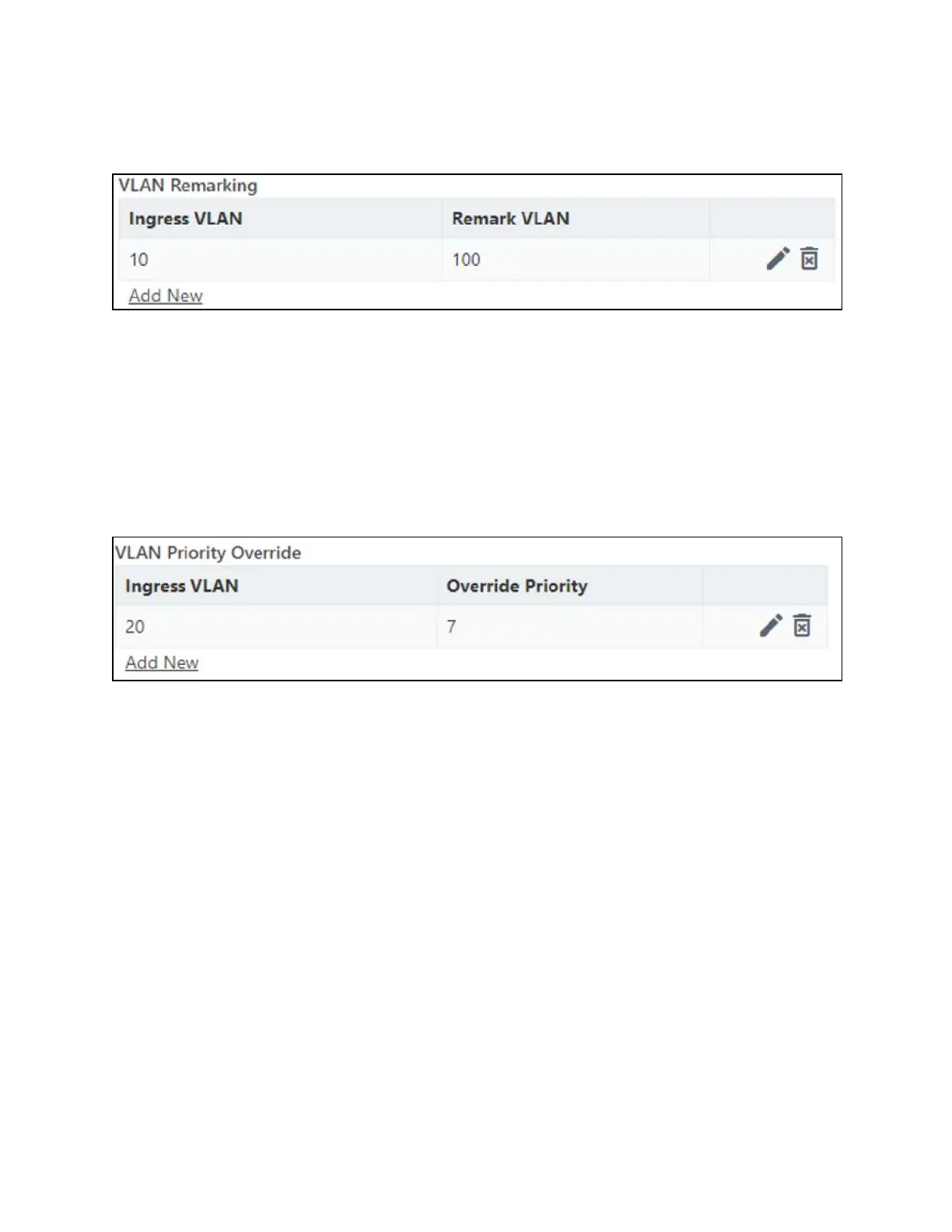

Figure 203:
VLAN ID Remarking
VLAN ID of the ingress packet is remarked. In the above example, if a packet with VLAN ID 10 enters an
Ethernet port, it is remarked to 100. In the egress path, the reverse remarking occurs. VLAN ID 100 is
remarked to 10 and egresses the ethernet port.
The VLAN ID of the outer tag is used for remaking. For a double-tagged packet, S-VLAN ID gets
remarked and for a single-tagged packet, C-VLAN 1D.
802.1p overriding
Priority field in the (outer) VLAN tag of ingress packet can be overwritten using this option.
Figure 204:
VLAN Priority Override
Priority field in the (outer) VLAN tag of ingress packet can be overwritten using this option.
