System Hardware 39
Figure 19:

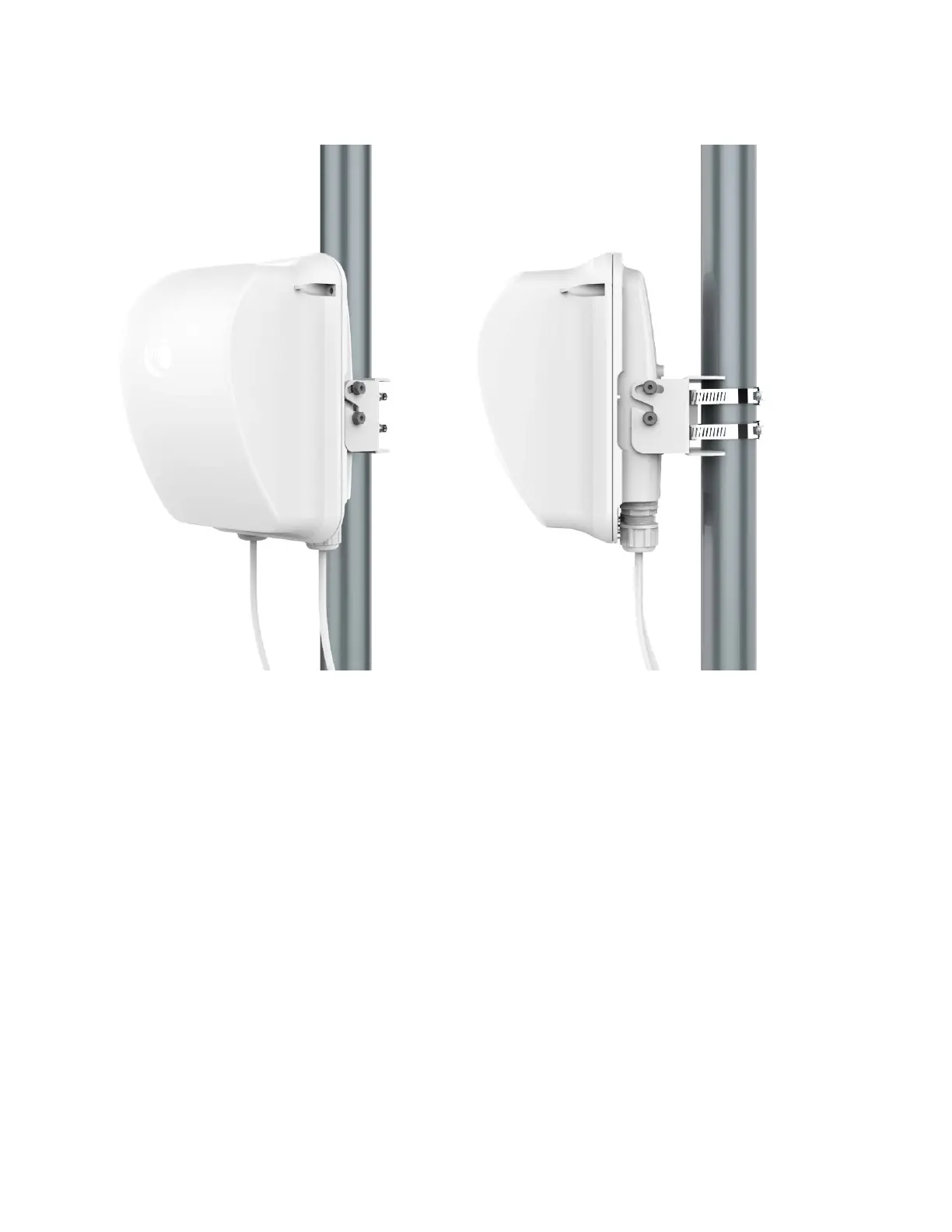

V2000 Adjustable pole mount
V3000 Precision bracket (C000000L125A)
The precision bracket (as shown in Figure 20) is used to mount the V3000 CN on a vertical pole with a
diameter in the range of 25 mm to 70 mm (1 inch to 2.75 inches). It accepts band clamps for larger
diameter poles.
The precision bracket provides fine adjustment of up to 18° in azimuth and +/-30° in elevation for
accurate alignment of the V3000.
