System Hardware 40

Figure 20:

Precision bracket

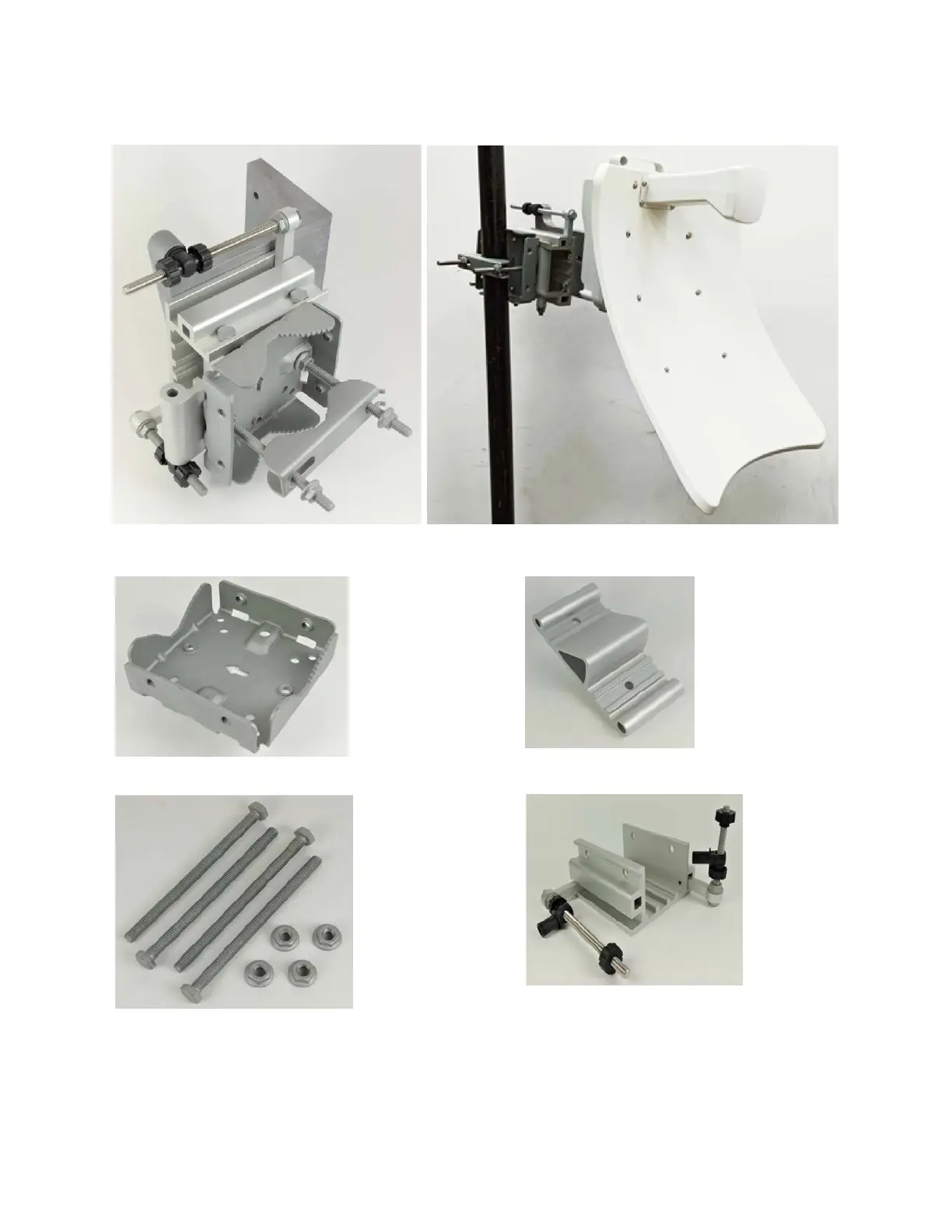

Figure 21:

Precision bracket components

Bracket body

Azimuth arm

Long (120 mm) M8 screws and flange nuts

Bracket base
