System Hardware 41

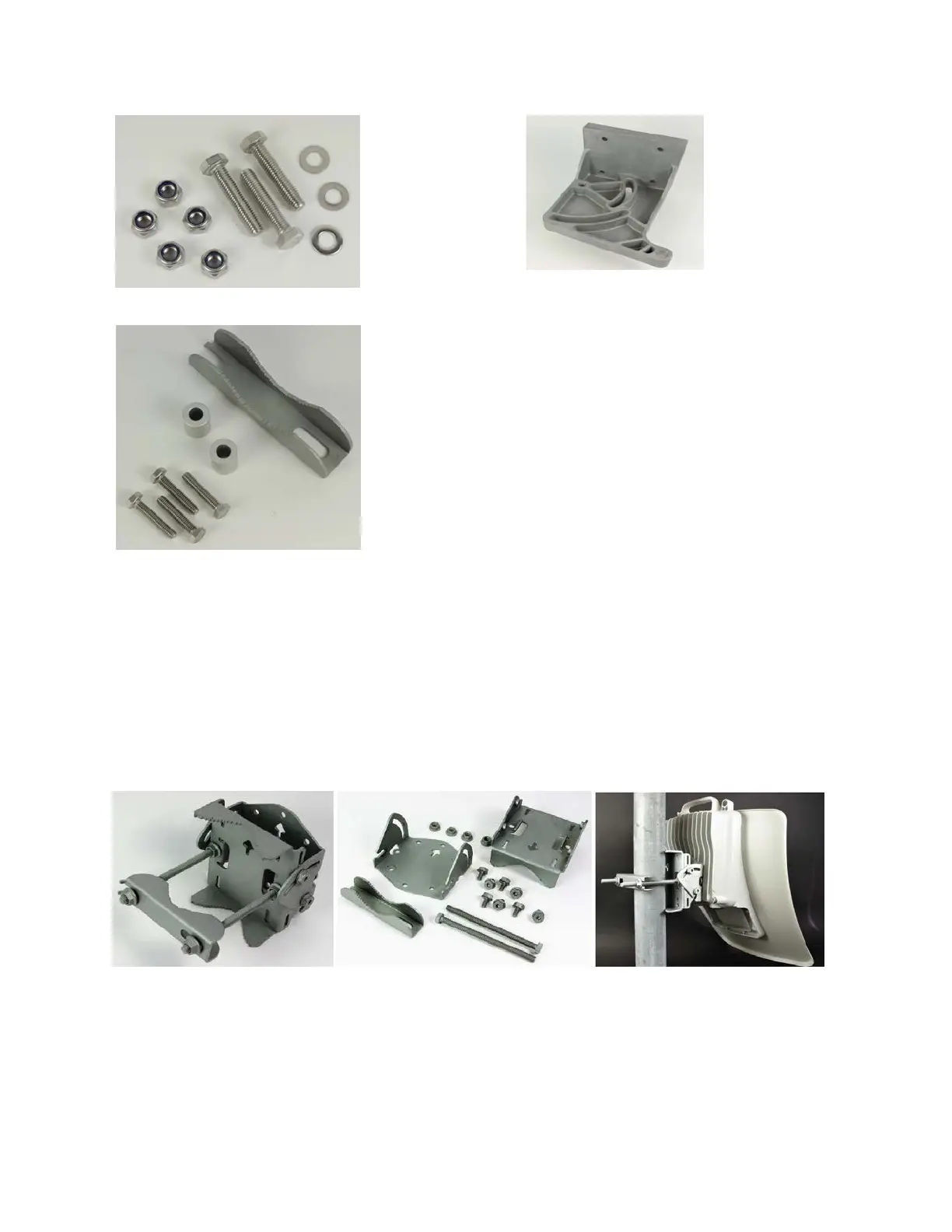

40 mm M8 screws, plain washers, and Nyloc nuts
V3000 mount
28 mm M6 screws, M8 spacers, and pole mount clamp
V3000 Tilt bracket (N000045L002A)
The tilt bracket (as shown in Figure 22) is used to provide elevation adjustment when a V3000 CN or
V5000 DN is mounted on a pole. The tilt bracket works with poles with diameters in the range of 25 mm
to 70 mm (1 inch to 2.75 inches).
The tilt bracket assembly may be used with third-party band clamps to mount the ODU on a larger pole
(the diameter range depends on the clamps used).
Figure 22:
Tilt bracket assembly
V5000 Pole mount (C000000L137A)
The pole mount (as shown in Figure 23) is used to mount a V5000 DN on a vertical pole with a diameter
in the range of 25 mm to 70 mm (1 inch to 2.75 inches. It provides coarse azimuth (but not elevation)
adjustment. Band clamps can be used for V5000 pole mount to accommodate the larger diameter poles.
