System Hardware 44

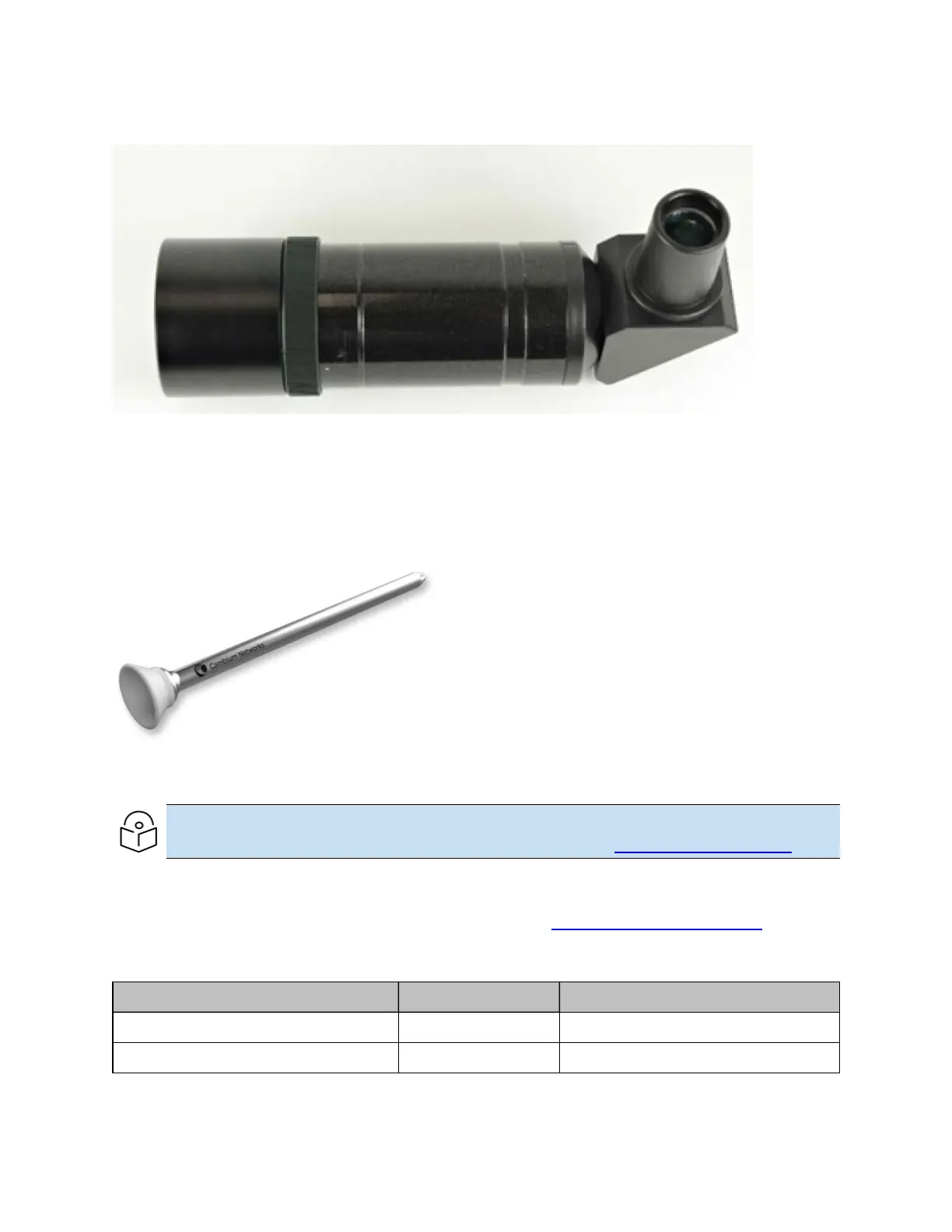

Figure 26:
Typical alignment telescope
Alignment Tube
The Alignment tube (as shown in Figure 27) is designed to be used with V3000 when setting up a Point-
to-Point link. It is Ideal for aligning a Point-to-Point link that spans up to 600 m.
Figure 27:
Alignment Tube
For longer links up to 3 km, Cambium Networks suggests to use the telescopic mounting kit
(C000000L139) and a finder scope.
Note
For details on how to fit the Alignment tube for V3000, refer to Fixing the alignment tube.
Radio accessory part numbers
Order radio accessories using the Cambium Part Number in the Radio accessory part numbers table
below.
Table 10: Radio accessory part numbers
Accessory Radio nodes Cambium Part Number
Telescope mounting kit V3000 C000000L139A
Alignment Tube V3000 C000000L190A
