System Hardware 47
V3000 CN

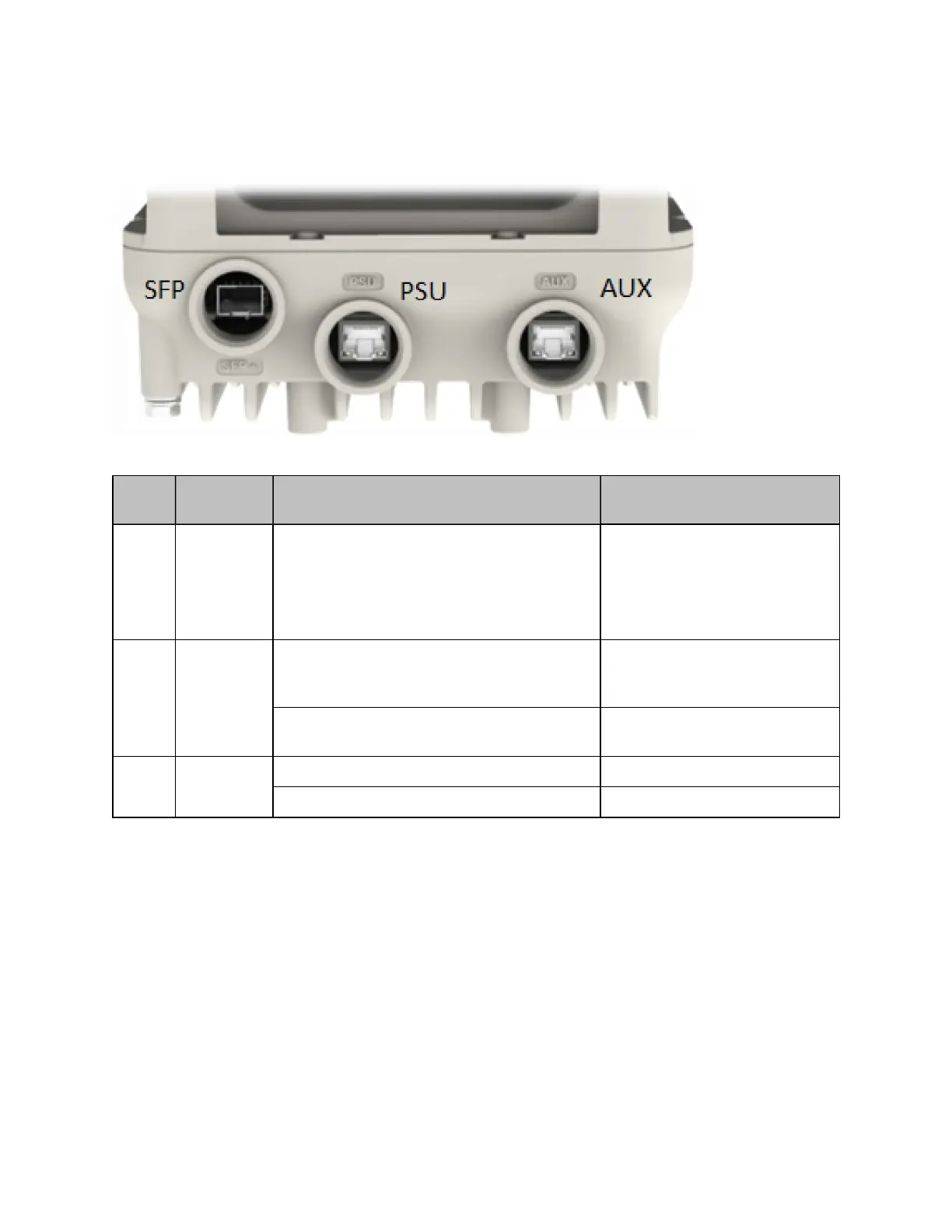

Figure 30:
External interfaces for V3000 CN
Table 13: External interfaces V3000 CN
Port
name
Connector Interface Description
SFP+ SFP 10G BASE-SR/10G BASE-LR/1G Base-SX
using optional SFP+/SFP optical or copper
module
SFP-1G-SX / SFP-1G-LX using optional SFP
optical or copper module
Data and management
PSU RJ45 PoE input Passive PoE or 802.3at (two
pairs or four pairs for higher
wattage)
100m/1000m/2.5G BASE-T/5G BASE-T/ 10G
BASE-T Ethernet
Data and management
AUX RJ45 PoE output Standard IEEE 802.3af/at
100/1000 BASE-T Ethernet Data and management
