Cameron Scanner 3100 EFM - Flameproof RTD Assembly (ATEX, Zone 1); Pole-Mounting Kits

Probe
length
Cable length

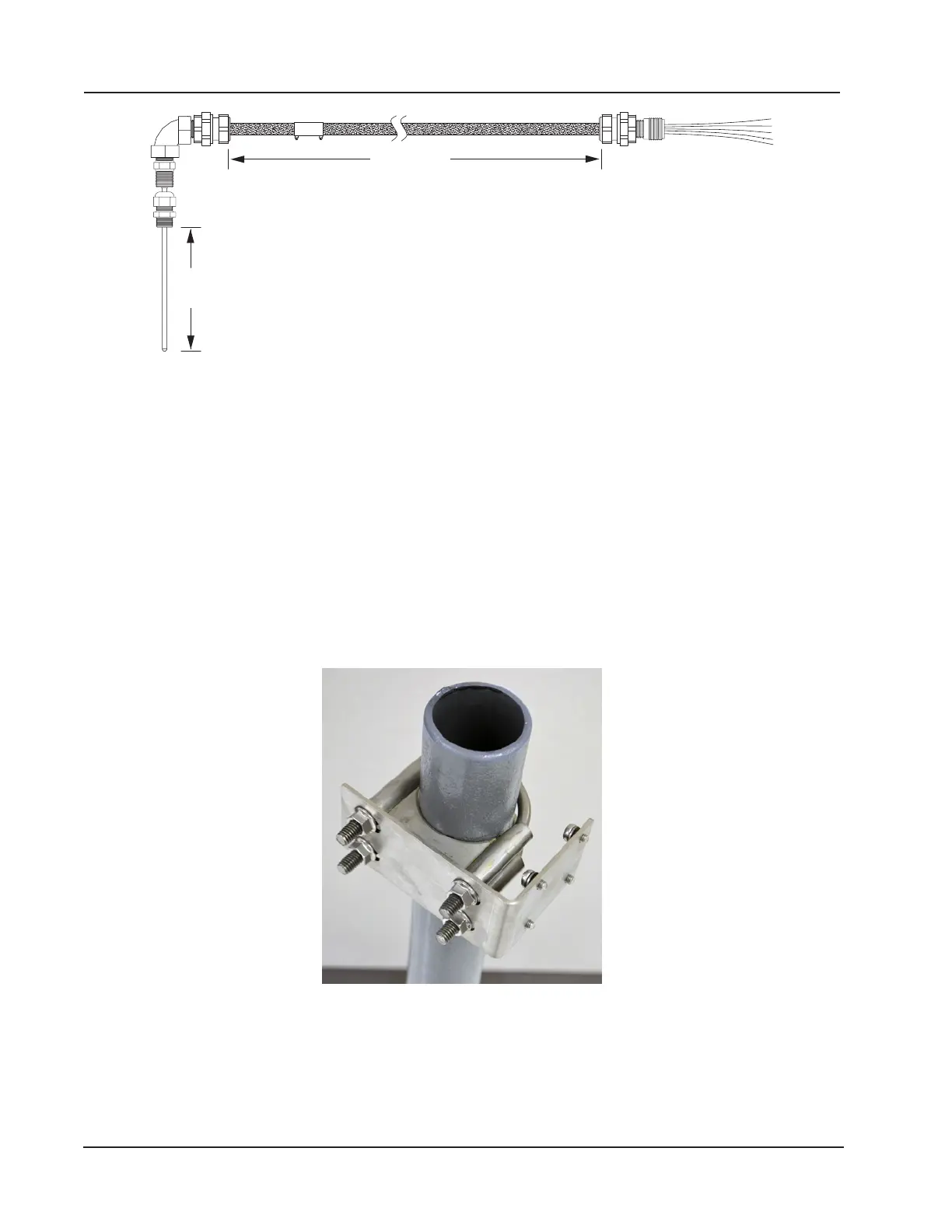

Figure 1.6—Explosion-proof (Class I, Div. 1) RTD assembly
Flameproof RTD Assembly (ATEX, Zone 1)
Cameron offers a ameproof RTD that is ATEX-certied for use in Zone 1 installations. The 4-wire, Class A sensor is
encapsulated in a stainless steel sheath long enough to accommodate line sizes from 2 to 12 inches. It is attached to a
3500-mm armoured cable. For wiring instructions, see Figure 3.6, page 59. For part numbers, see Table 7.3—RTD and
Cable Assemblies, page 89.
Pole-Mounting Kits
Cameron’s pole mounting kit (Figure 1.7) is recommended for mounting a Scanner 3100 to a 2-in. pole. The kit consists
of a stainless steel “L” mounting bracket, two U-bolts, and four 10-mm M6 screws.
The bracket bolts directly to the four mounting bosses on the side of the Scanner enclosure and the U-bolts secure the as-
sembly to the pole. For installation instructions, see Pole-Mounting the Scanner 3100, page 30. For part numbers, see
Table 7.1—Scanner 3100 EFM Parts, page 87.
Figure 1.7—Pole mounting kit
12
Section 1 Scanner 3100 EFM
