Standard Features
The Scanner 3100 features a double-ended explosion-proof enclosure with four conduit openings for inputs/outputs, a
bottom conduit opening for a sensor, a large digital display, and a four-button keypad. Removing the front windowed
cover provides access to batteries and the keypad. The rear cover is removed for eld wiring. See Section 3—Wiring the
Scanner 3100 EFM, page 55 for wiring diagrams.
Product Identication
Each device is labeled with a serial tag that identies the product by model number and serial number and identies
the maximum operating pressure, working pressure, and differential pressure of the integral MVT (Figure 1.1). The tag
content depicted illustrates the electrical protection afforded by ATEX/IECEx certication. CSA-approved products are
marked accordingly with the respective ratings and symbols.
7000 NIX DRIVE, DUNCAN, OK
SCANNER 3100 EFM
WARNING: BATTERIES MUST ONLY BE CHANGED IN A NON-HAZARDOUS LOCATION.
WARNING: DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT.
WARNING: ALL CABLE AND CABLE GLANDS MUST BE RATED FOR 80ºC.
FOR INSTALLATION AND OPERATION INFORMATION, SEE MANUAL PART NO. 2350759-01.
MODEL
SERIAL
3100-
SP/SWP
DP
IN H2O
PSIA
Ex d [ia Ga] ib IIC T5 Gb (Tamb -40°C to 70°C) or
Ex tb [ia Da] ib IIIC T100°C Db (Tamb -40°C to 70°C)
Sira 15ATEX 1122X
IECEx SIR15.0049X
INPUT POWER: 9 to 30V
@
150 mA
II 2 (1) GD
0518
Certification number
Explosion-proof marking
CE marking and number of notified body responsible
for production
Equipment Group II, Category 2
Hazardous conditions are likely to occur in normal
operation occasionally (>10<1000 hours/year);
Explosive atmosphere: Gas, Dust
Flameproof for gas and dust; temperature class

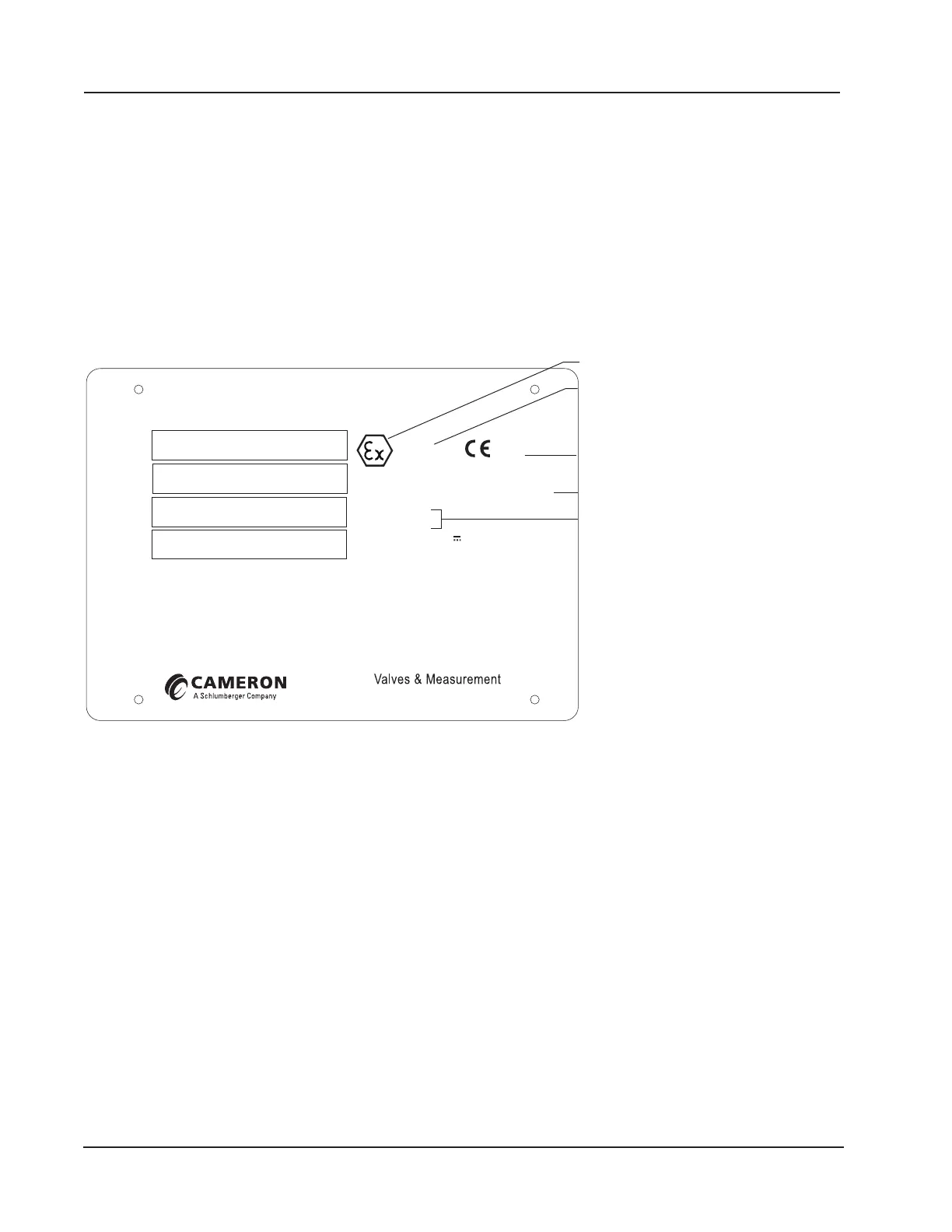

Figure 1.1—Device serial tag
Hardware Options
The following hardware options are available for customizing the Scanner 3100 to your specic needs: sensors, battery
packs, explosion-proof control switches, explosion-proof RTD assemblies, pole-mounting kits, and wireless communica-
tion components. See the sections below for details.
Sensors
The Scanner 3100 is available with no sensor or with an integral MVT (Figure 1.2, page 9). MVTs are available in
NACE and non-NACE models with bottom ports (gas measurement) or side ports (liquid measurement).
