Cameron Scanner 3100 EFM - Battery Packs; Lithium Battery Packs

MVT adapter
High pressure/
low pressure
port indicator
Integral
vent plugs
Multi-variable transmitter
(NACE-compliant MVT available)
Conduit entry
3/4-in. NPT
Ground
screw
Conduit plug
Antenna*
(available for wireless option)
Battery
packs
Mounting boss
for pole mount
hardware
Antenna*
(available for wireless option)
SCANNER 3100 (NO SENSOR)
SCANNER 3100 + OPTIONAL MVT
*Remote-mount
antenna also
available.

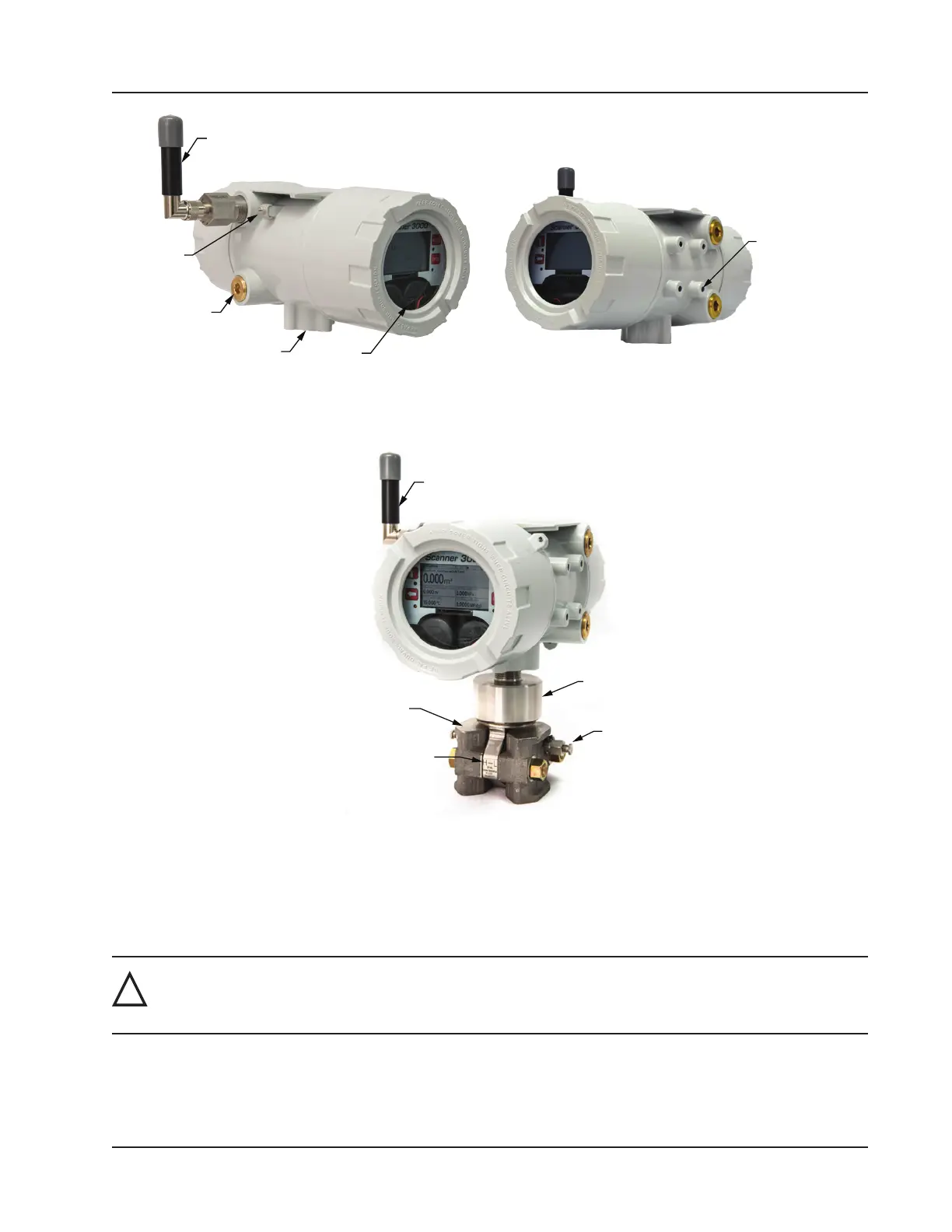

Figure 1.2—Scanner 3100 sensor options
Battery Packs
Cameron’s dual lithium battery packs (Figure 1.3, page 10) provide backup power for the Scanner 3100. Battery life
can vary signicantly depending on the input and output congurations in use. For continuous operation, an external pri-
mary power supply is required (9 to 30 VDC at 150 mA; for Mexico installations, use 9 to 24 VDC at 150 mA).
!
WARNING: EXPLOSION RISK. Housing temperature must not exceed 70 degC (158 degF). Excessive tem-
peratures, which could result from ambient conditions combined with radiated and conductive heat from
the process, could cause the internal lithium battery to ignite or explode.
Each stick-style battery pack contains two 3.6 V batteries. Together, the dual packs can autonomously power the device
for a short period (approximately 2 to 3 weeks with a default conguration) in the event of a primary power outage. With
dual packs installed, you can replace a depleted battery pack without interrupting operations even when the device is op-
erating solely on battery power.
9
Scanner 3100 EFM Section 1
