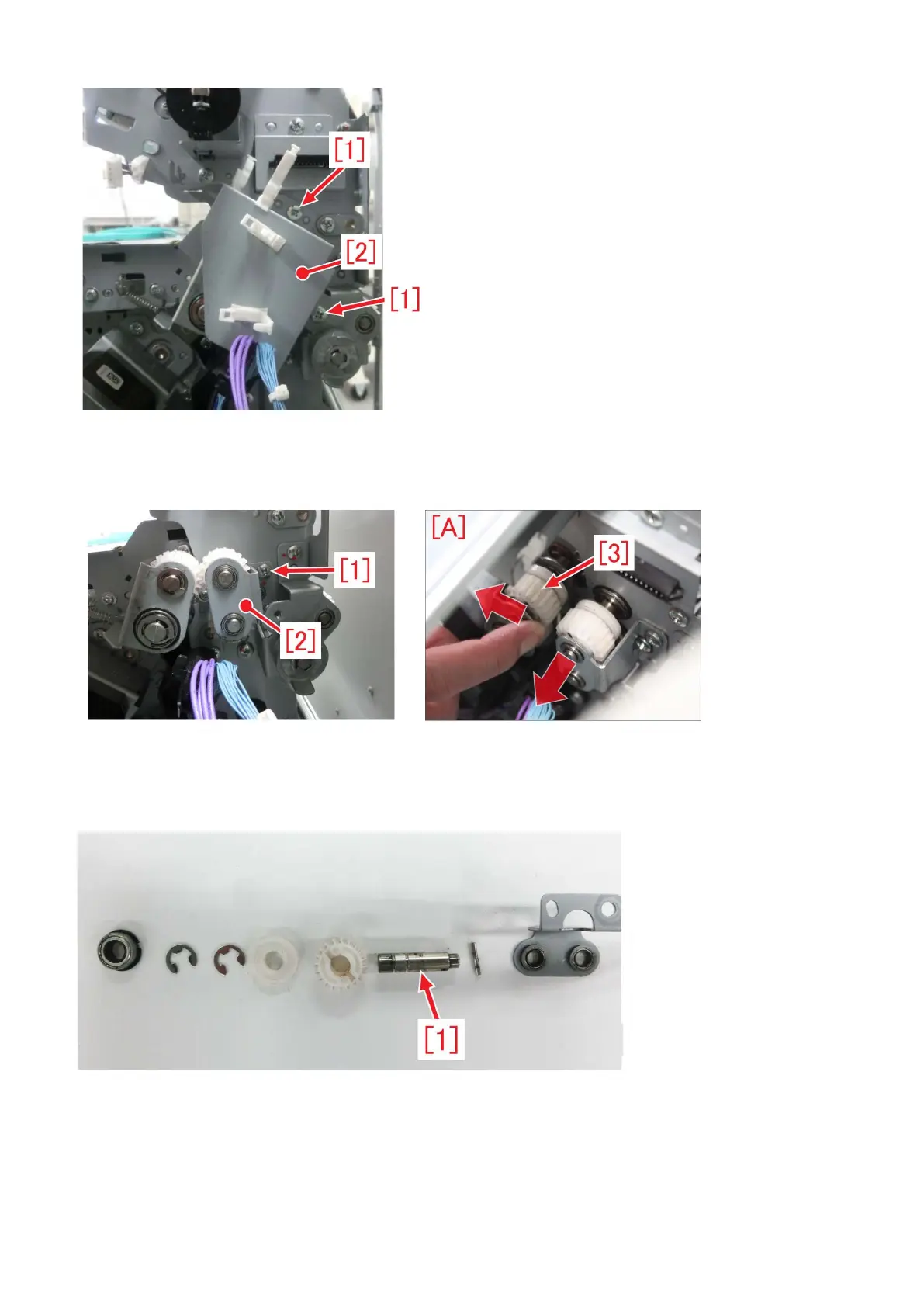

a-5) Remove the 1 screw [1] and remove the decurler drive swing plate 2 [2]. If it is not easy to remove the decurler drive swing
plate 2, remove it by pressing and separating the abutting gear [3] with a finger as shown in the photo [A].
a-6) Disassemble the decurler drive swing plate 2 removed in the step a-5), into the E-ring, the gear, the parallel pin, the ball
bearing and the decurler drive shaft [1], and replace it with the new-type decurler drive shaft (FC6-2447-010) [1] and the new ball
bearing (XG9-0520-000).
a-7) Apply the same amount of the super lube grease as a grain of rice (approx. 20mg) to the entire circumference of portion [a]
of the new-type decurler drive shaft, and then assemble the decurler drive swing plate 2 disassembled in the step a-6).
