- Decurler drive roller (FC7-1597-010): 1 pc
- Ball bearing (XG9-0856-000): 2 pcs
- E-ring: Do not reuse the removed E-ring. Prepare a new one.
- Super lube grease: FY9-6005

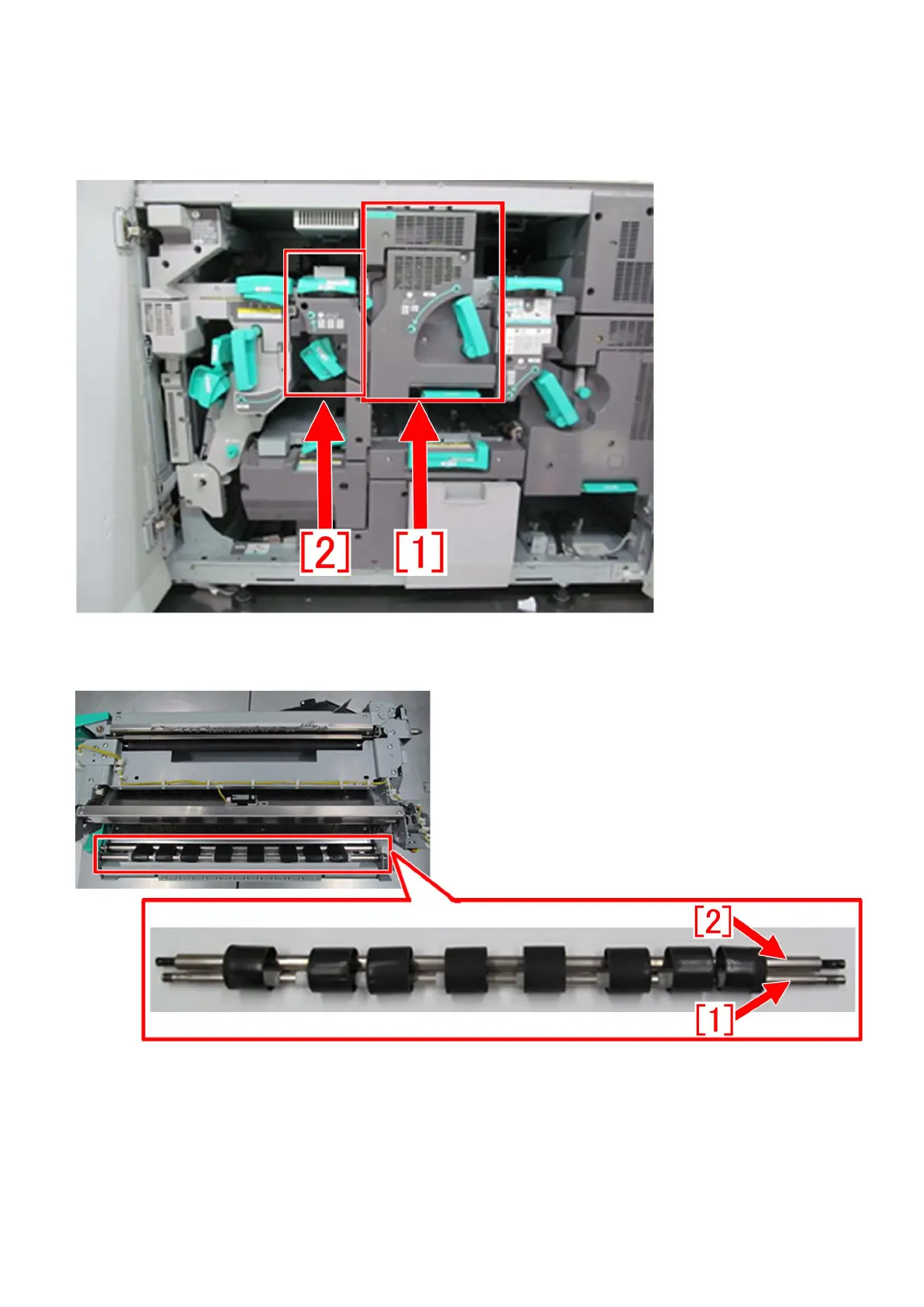

1) Remove the second fixing assembly [1], and then remove the fixing merging path unit [2].
2) Remove the driven roller/decurler drive roller from the fixing merging path unit.
[1] shows the driven roller, and [2] shows the decurler drive roller.
3) Replace the decurler drive roller with the new type.
Apply a rice-grain sized super lube grease (20 mg) to the entire circumference of the section [a] of the shaft into which the ball
bearing fits. And then, install the decurler drive roller to the fixing merging path unit by using the brand-new ball bearing and E-
ring, and the attached washer.
148
