[Reference]

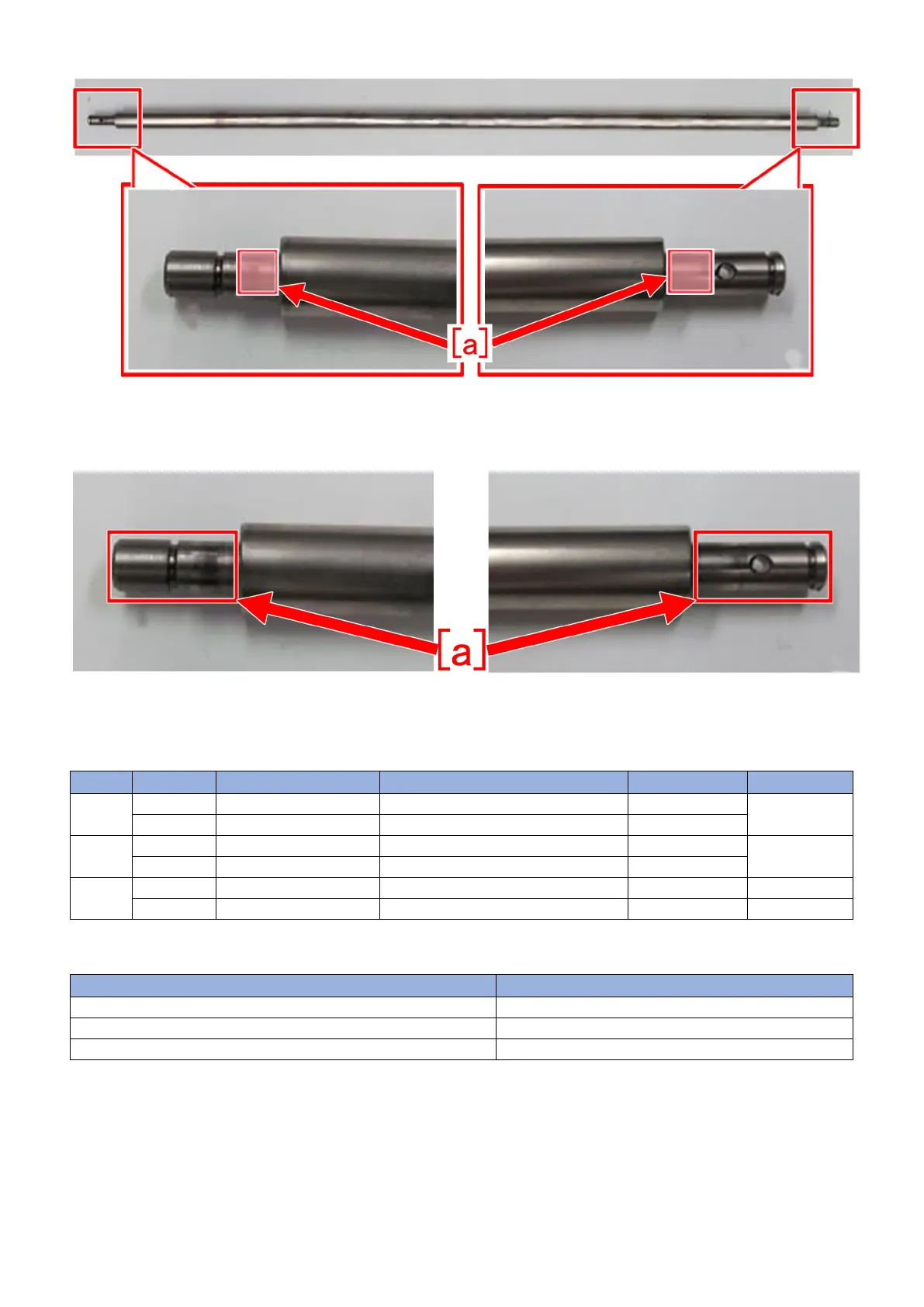

How to identify the new-type decurler drive roller: since quenching treatment is performed at the section [a], section [a] of the
new type is blacker than that of the old type. (The photo below shows the shaft before the measure is taken.)
4) Install the fixing merging path unit to the main unit.
[Service parts]
No. Part Number Description Q'ty Fig. No.
1 Old FC7-1597-000 ROLLER, DECURLER DRIVE 1 -> 0 346
New FC7-1597-010 ROLLER, DECURLER DRIVE 0 -> 1
2 Old XG9-0856-000 BEARING, BALL 2 -> 2 346
New
3 Old FY9-6005 SUPER LUBE GREASE 1 -> 1
New
[Countermeasure cut-in serial numbers in factory]
Model Serial No.
imagePRESS C10000VP series FS US/JP WBE15745
imagePRESS C10000VP series FS EUO WBF15627
imagePRESS C10000VP series FS CN WBG15055
imagePRESS C7000 Series: No implemented due to production discontinuance
imagePRESS C7000VPE Series: No implemented due to production discontinuance
imagePRESS C7011/C7010/C6011/C6010 Series: No implemented due to production discontinuance
imagePRESS C7011S/C7010S/C6011S/C6010S Series: No implemented due to production discontinuance
