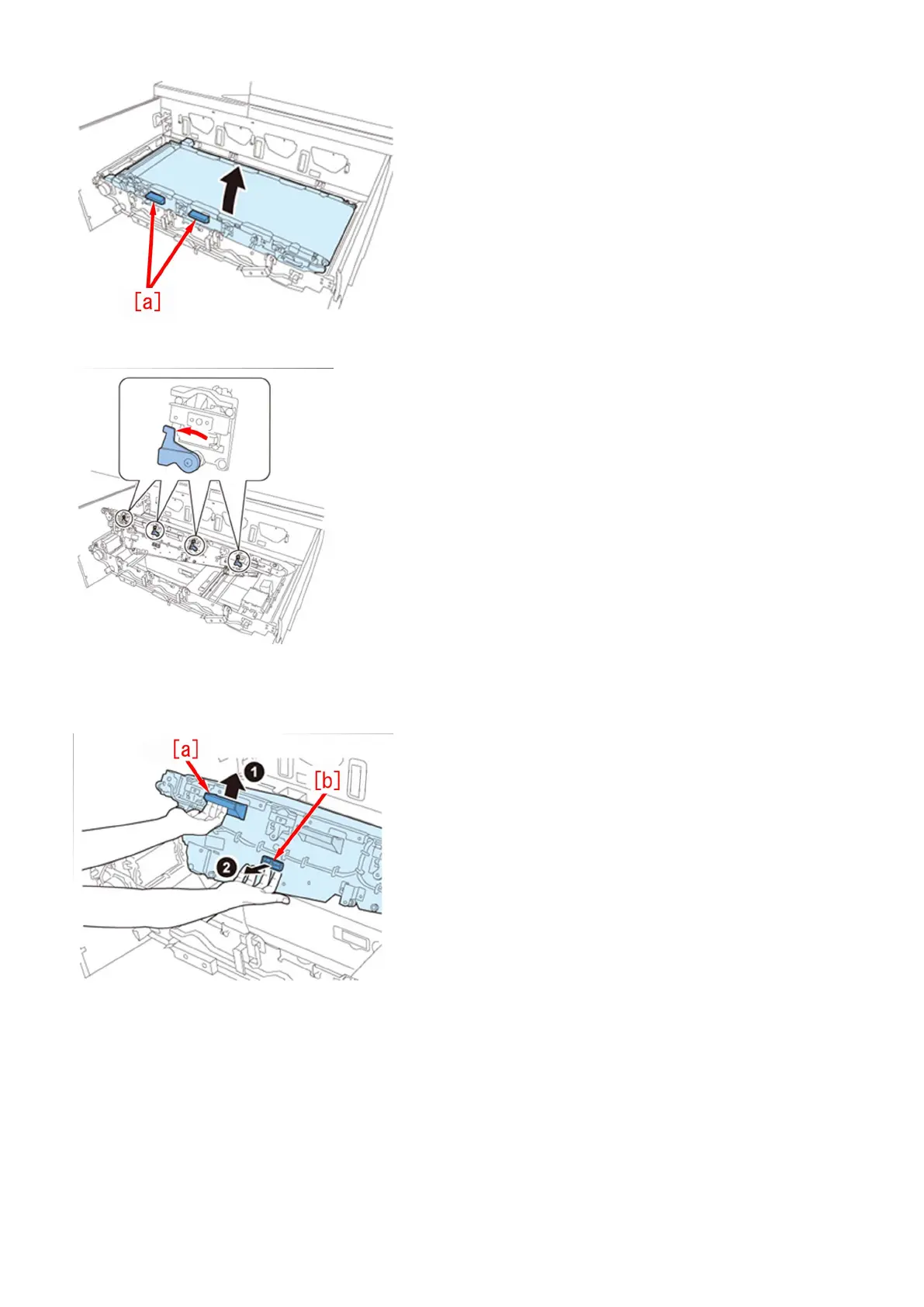

b-5) Rotate the 4 Primary Transfer Roller Pressure Release Levers anticlockwise to disengage.
b-6) Holding the grip [a], pull the Release Lever [b] until it stops while lifting the Intermediate Transfer Unit. While pulling the
Release Lever, lower the Intermediate Transfer Unit until it passes through the lock position (approx. 30 degrees), and release
both hands (the Intermediate Transfer Unit will lower slowly).
[Caution] Do not insert your hands etc. into the Intermediate Transfer Unit or Intermediate Transfer Unit Frame when lowering
the Intermediate Transfer Unit.
b-7) While pushing the 2 Lock Release Springs [a], slide the Intermediate Transfer Unit toward the rear side until the lock is
released.
