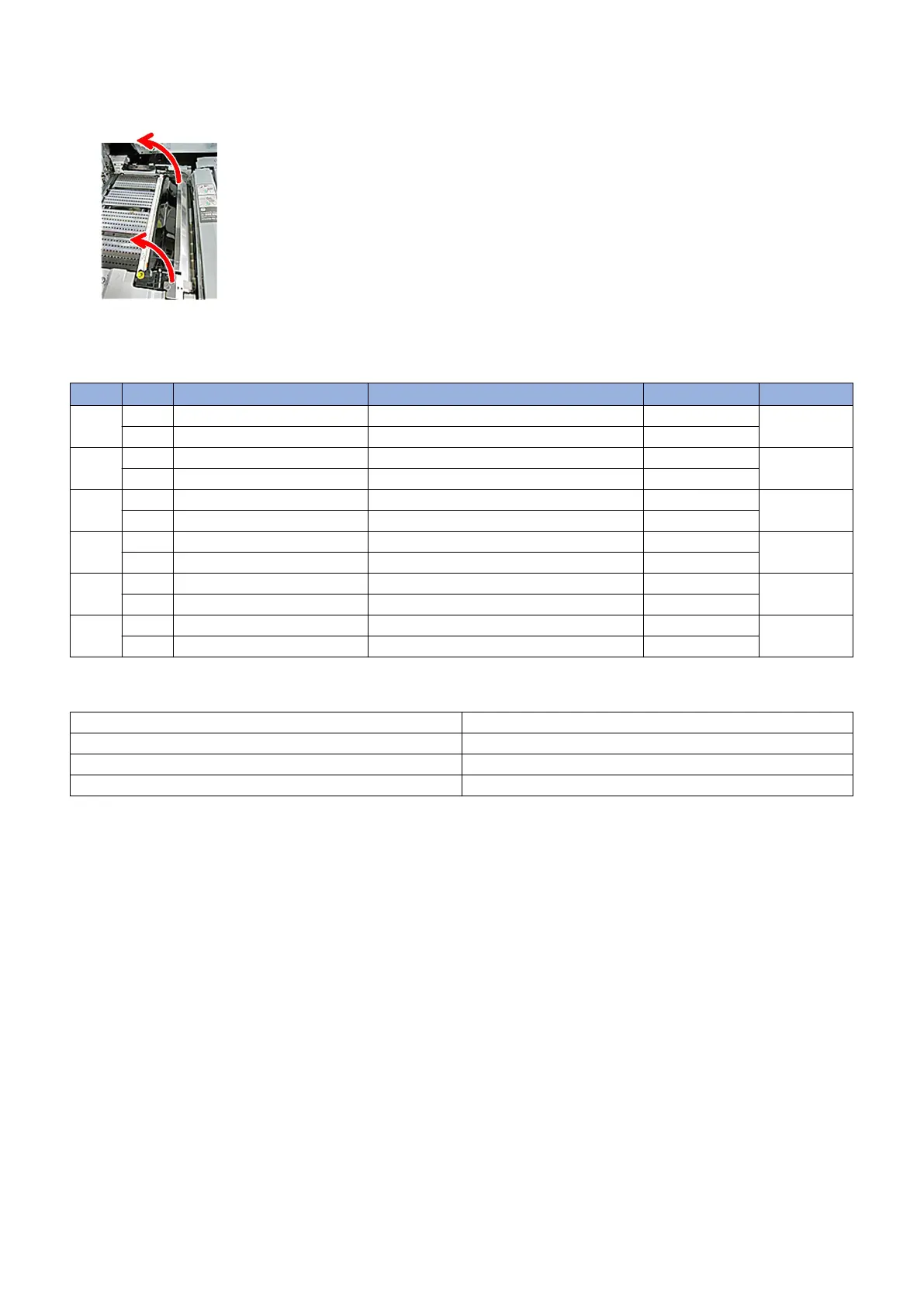

In order to correct the shift of the position between the waste toner discharge outlet and inlet, hold the 2nd transfer assembly
together with the pre-registration/feed unit, and move it up and down one time.
19) Return the pre-registration/feed unit back to the main unit, and close the door.
[Service parts]
No. Part Number Description Q'ty Fig.No.
1 Old FM1-H026-000 TRANSFER CLEANER DRIVE UNIT 1->0 333
New FM1-H026-010 TRANSFER CLEANER DRIVE UNIT 0->1
2 Old FY9-6005-000 LUBE,SUPER LUBE GREASE,(85G) 0->1
New
3 Old FE4-6162-000 SHAFT, 2 1->0 333
New FE4-6162-010 SHAFT, 2 0->1
4 Old FE4-6163-000 SHAFT, 1 1->0 333
New FE4-6163-010 SHAFT, 1 0->1
5 Old FE4-6164-000 SHAFT, 5 1->0 333
New FE4-6164-010 SHAFT, 5 0->1
6 Old FE4-6165-000 SHAFT, 6 1->0 333
New FE4-6165-010 SHAFT, 6 0->1
[Countermeasure cut-in serial number in factory]
Model Serial number
imagePRESS C10000VP Series US WBC11022
imagePRESS C10000VP Series CN WBD00571
imagePRESS C10000VP Series EUO WEJ10986
51
