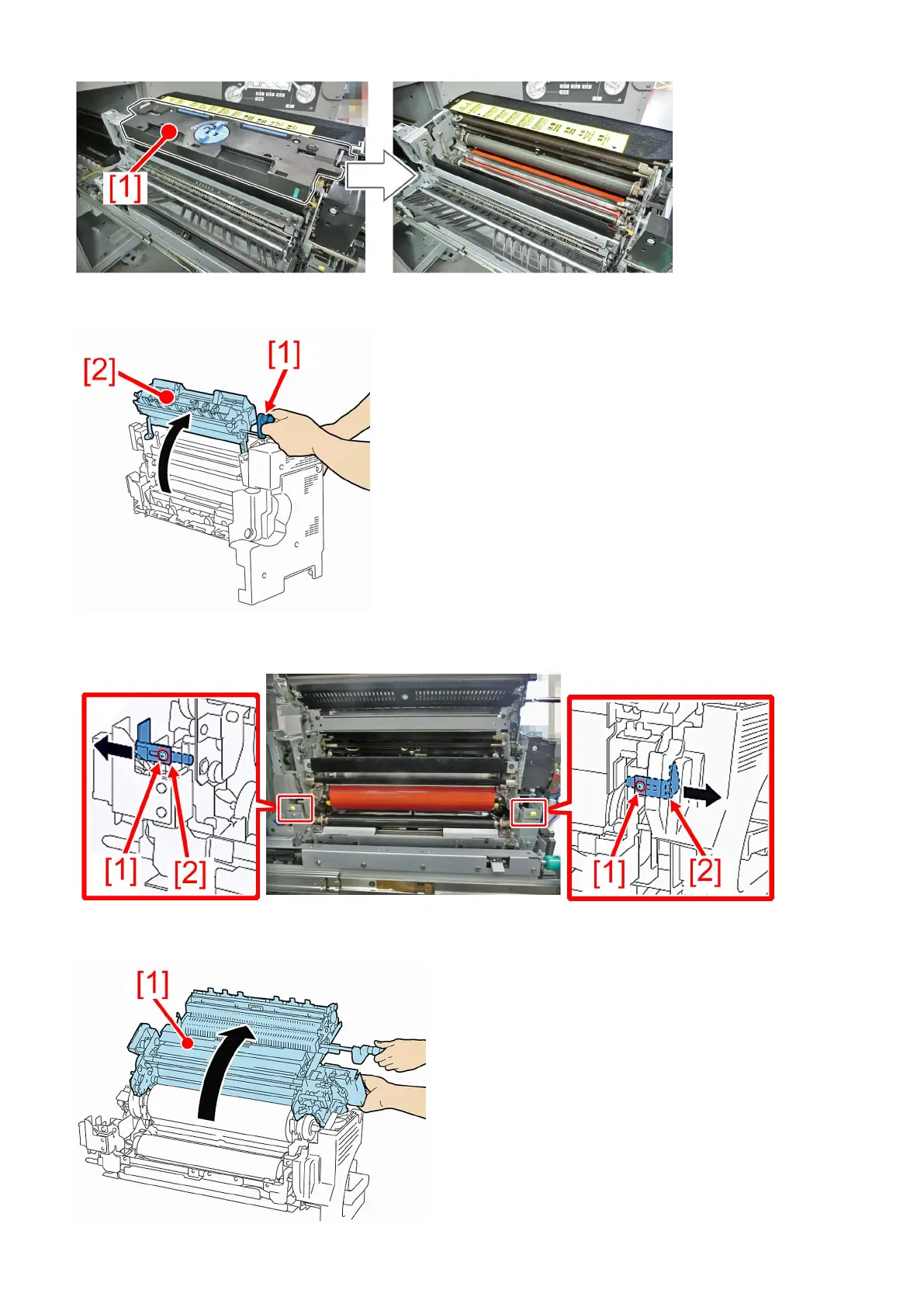

2) Lift the lever (C-A4) [1] and open the primary fixing inner delivery unit [2].
3) Loosen the 2 screws [1] and slide the fixation pins [2] in 2 locations in the arrow directions.
4) Open the upper unit [1] slowly.
