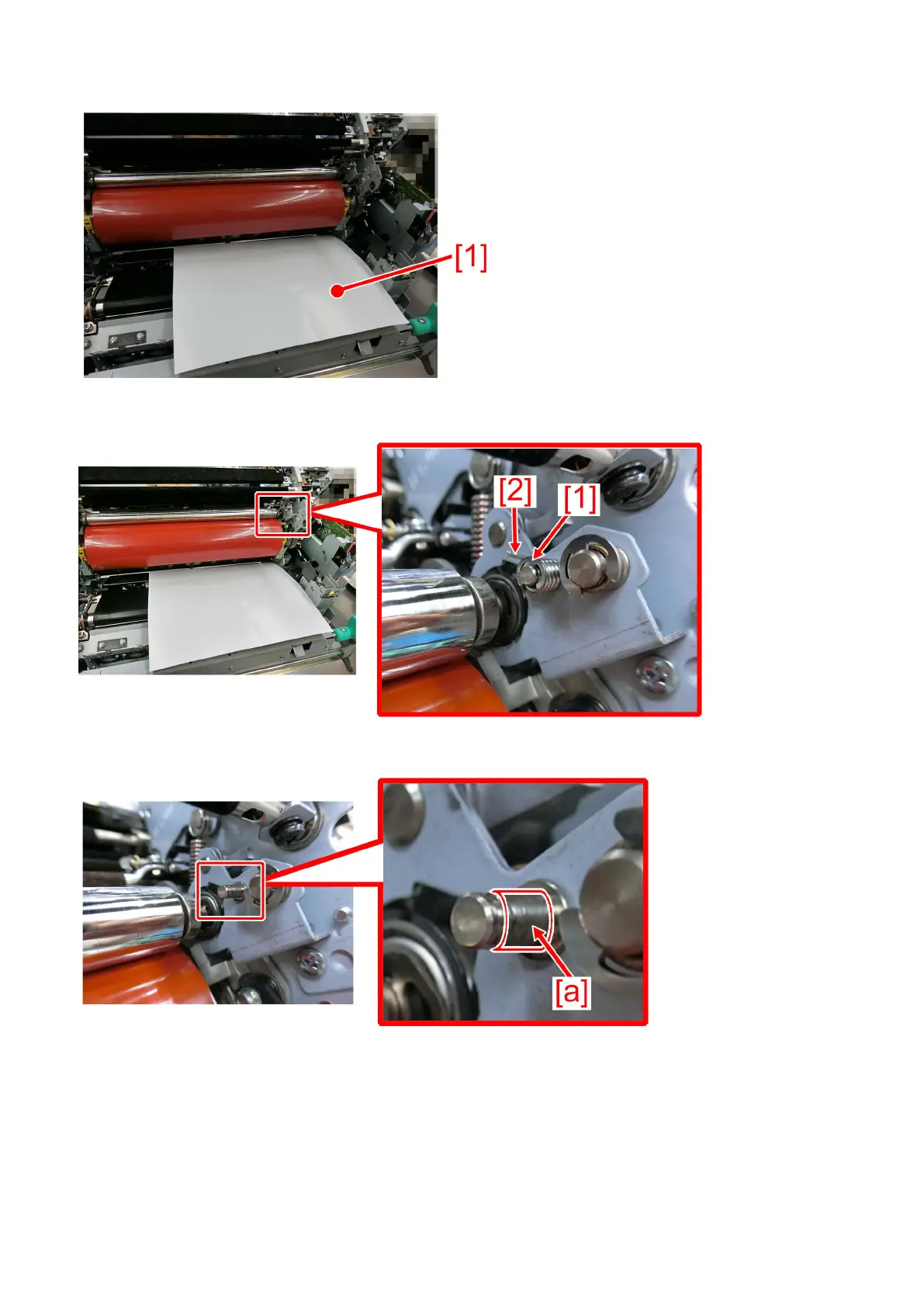

5) Place paper [1] on the fixing belt to prevent the parts from dropping as shown in the photo below.
6) Remove the E-ring [1] and remove the damaged torsion spring (front side) [2].
7) Apply the hanarl evenly to the entire circumference of the collection roller pressure shaft [a].
8) Attach the new-type torsion spring (front side) (FU2-0419-010) [1]
