Canon imagePRESS C10000VPSeries - Page 78

[Service parts]
No. Part Number Description Q'ty Fig. No.
1
Old
333
335
New FM1-U402-000 2ND TRNSFR. CLEANER GEAR SET 0 -> 1
2
Old FU2-1491-000 15T GEAR 1 -> 0
335
New FU2-2543-000 15T GEAR 0 -> 1
3
Old FU2-1492-000 21T/15T GEAR 1 -> 0
335
New FU2-2544-000 21T/15T GEAR 0 -> 1
4
Old FU2-1493-000 18T GEAR 1 -> 0
335
New FU2-2545-000 18T GEAR 0 -> 1
5
Old FU2-1494-000 17T GEAR 1 -> 0
335
New FU2-2546-000 17T GEAR 0 -> 1
6
Old FU2-1495-000 18T GEAR 0 -> 1
335
New FU2-2547-000 18T GEAR 0 -> 1
7
Old FE4-6174-000 POSITIONING ROLLER 2 -> 1
333
New FE2-A988-000 POSITIONING ROLLER 0 -> 1
8
Old
333
New FE2-B033-000 SPACER 0 -> 1
9
Old FU2-1501-000 20T GEAR 1 -> 0
333
New FU2-2548-000 20T GEAR 0 -> 1
10
Old FU2-1503-000 16T GEAR 1 -> 0
335
New FU2-2549-000 16T GEAR 0 -> 1
[Factory measures]]

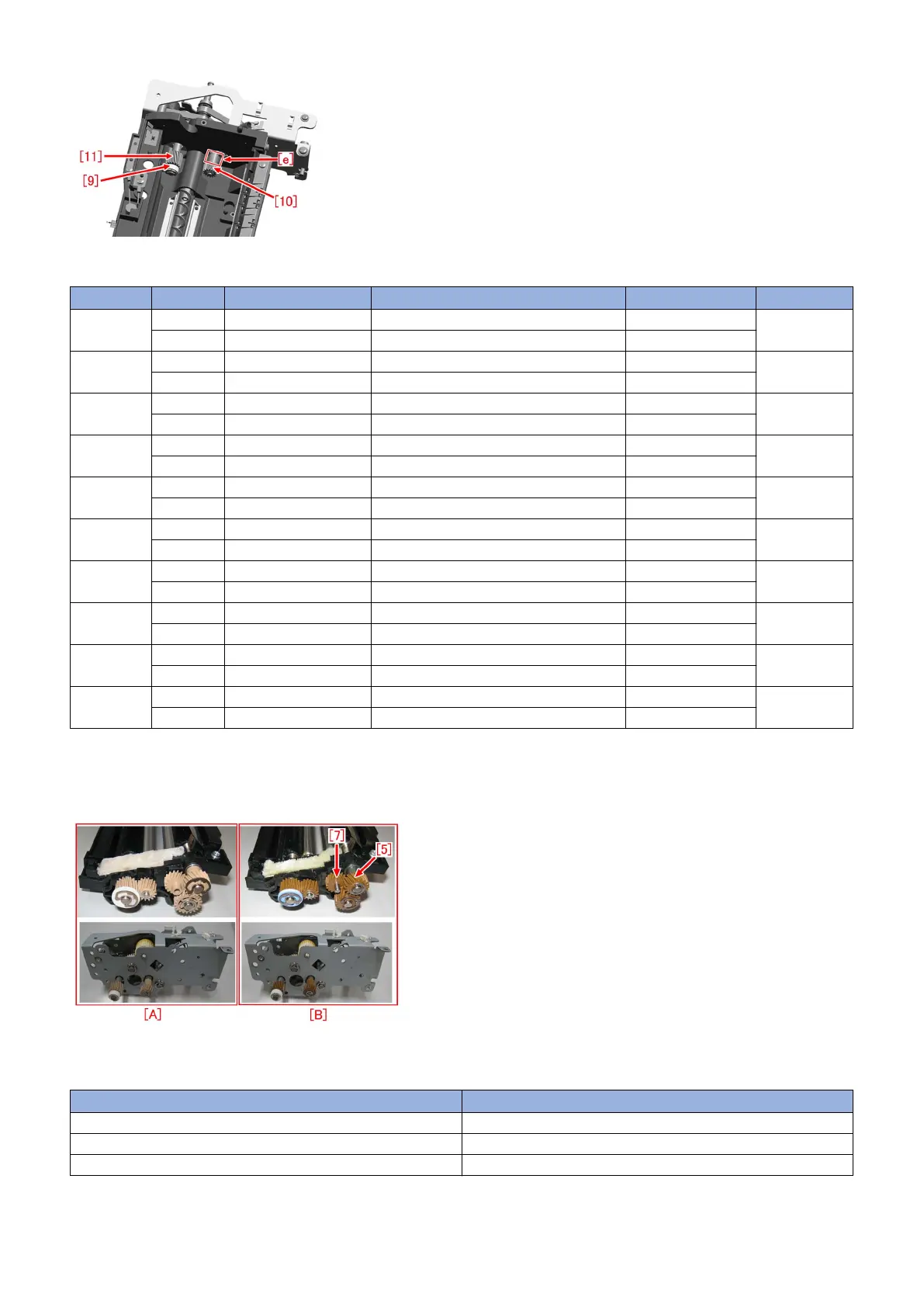

In order to increase strength, the materials of gears and positioning rollers are changed. [A] is the old type and [B] is the new type
parts. In addition, as for [5] and [7], not only the materials but also the shape is changed at the same time.
[Countermeasure cut-in serial numbers in factory]
Model Serial No
imagePRESS C10000VP Series US WBC11001
imagePRESS C10000VP Series EUO WEJ10986
imagePRESS C10000VP Series CN WBD00571
