Canon imagePROGRAF iPF765 User Manual

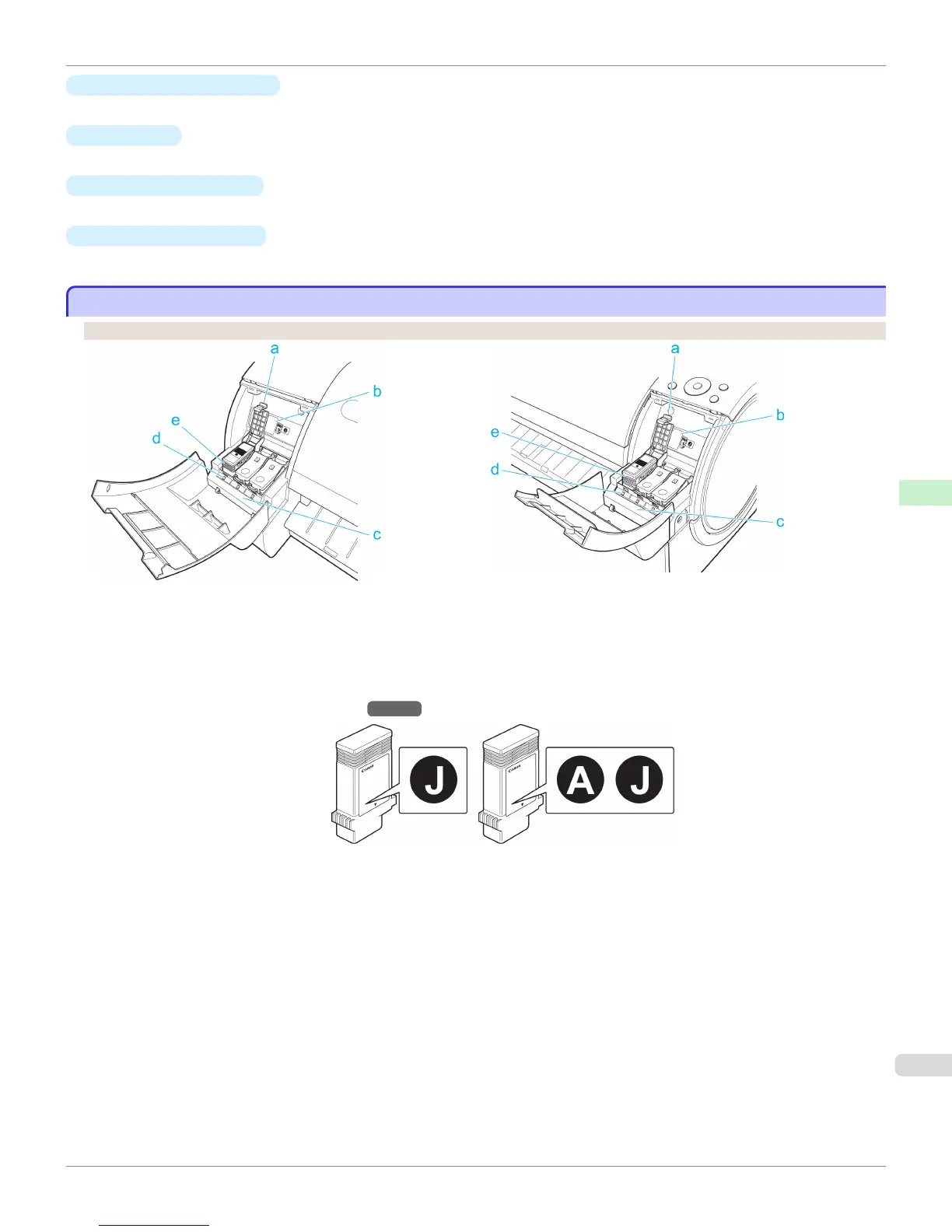

a Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
b Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d Printhead Fixer Cover
Holds the Printhead in place.
Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
Left Side Right Side
a Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink Tank.
b
Ink Set Label
An Ink Tank that can be used in the printer is labeled with a white letter [W that can be used in the printer is labeled
with a white letter J:: type="normal"J in a black circle on the side. When purchasing an Ink Tank, make sure a J is
printed on the label. (See "Ink Tanks.")
→P.620
c Ink Color Label
Load an Ink Tank that matches the color and name on this label.
d Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
• On
The Ink Tank is installed correctly.
• Off
No Ink Tank is installed, or the ink level detection function has been released.
• Flashing Slowly
Not much ink is left.
• Flashing Rapidly
There is no ink left.
iPF765
Ink Tank Cover (Inside)
User's Guide
Printer Parts Printer parts
523

Canon imagePROGRAF iPF765 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Storage media	HDD
Internal storage capacity	250 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
