Canon imagePROGRAF iPF765 - Printer parts

Printer parts
Printer parts
Front ................................................................................................................................................................... 518
Side .................................................................................................................................................................... 520
Top Cover (Inside) ............................................................................................................................................. 521
Roll Cover (Inside) .............................................................................................................................................. 522
Carriage ............................................................................................................................................................. 522
Ink Tank Cover (Inside) ...................................................................................................................................... 523
Stand .................................................................................................................................................................. 524

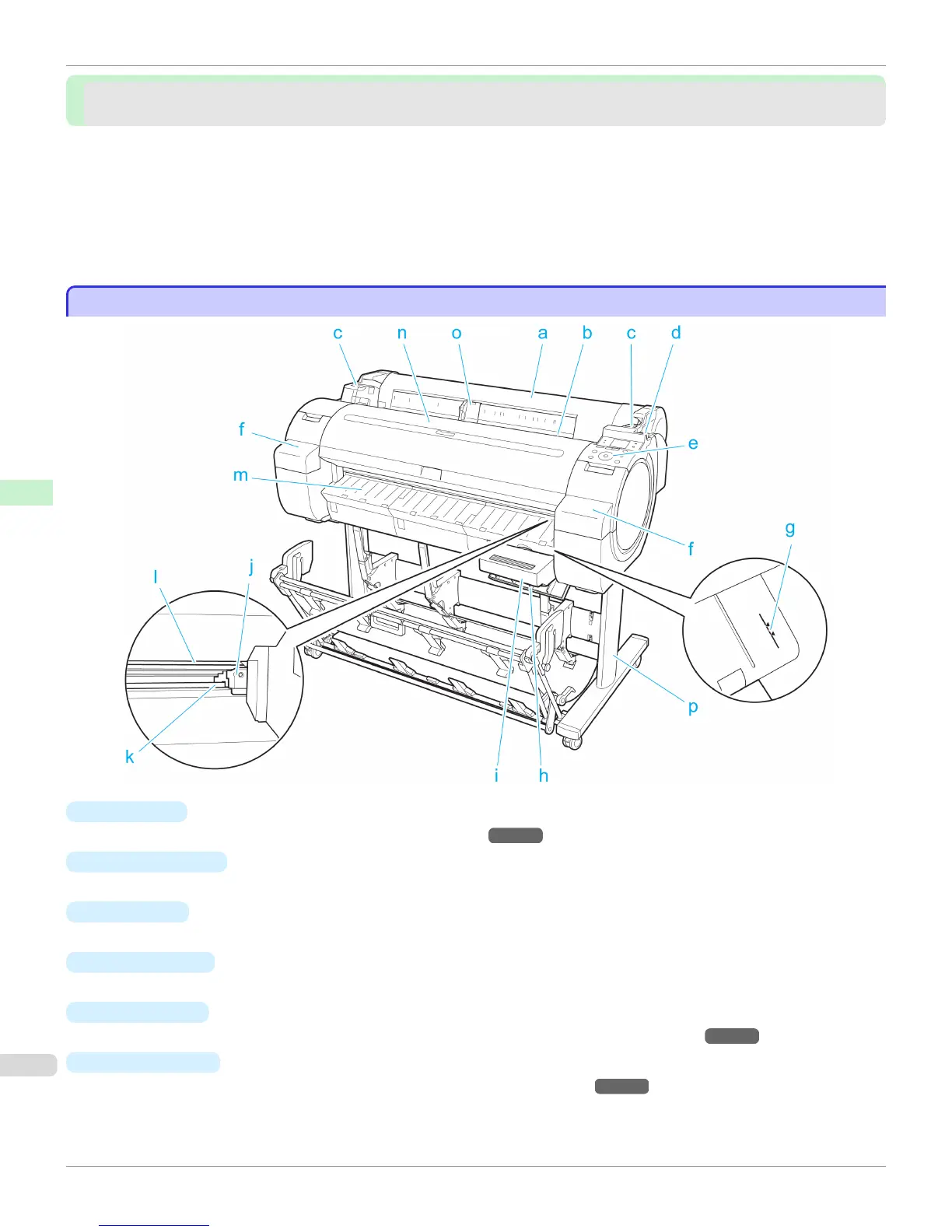

Front
Front
a Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).") →P.522
b Paper Feed Slot
When loading paper, insert it here.
c
Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") →P.478
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") →P.523
Front
iPF765
User's Guide
Printer Parts Printer parts
518
