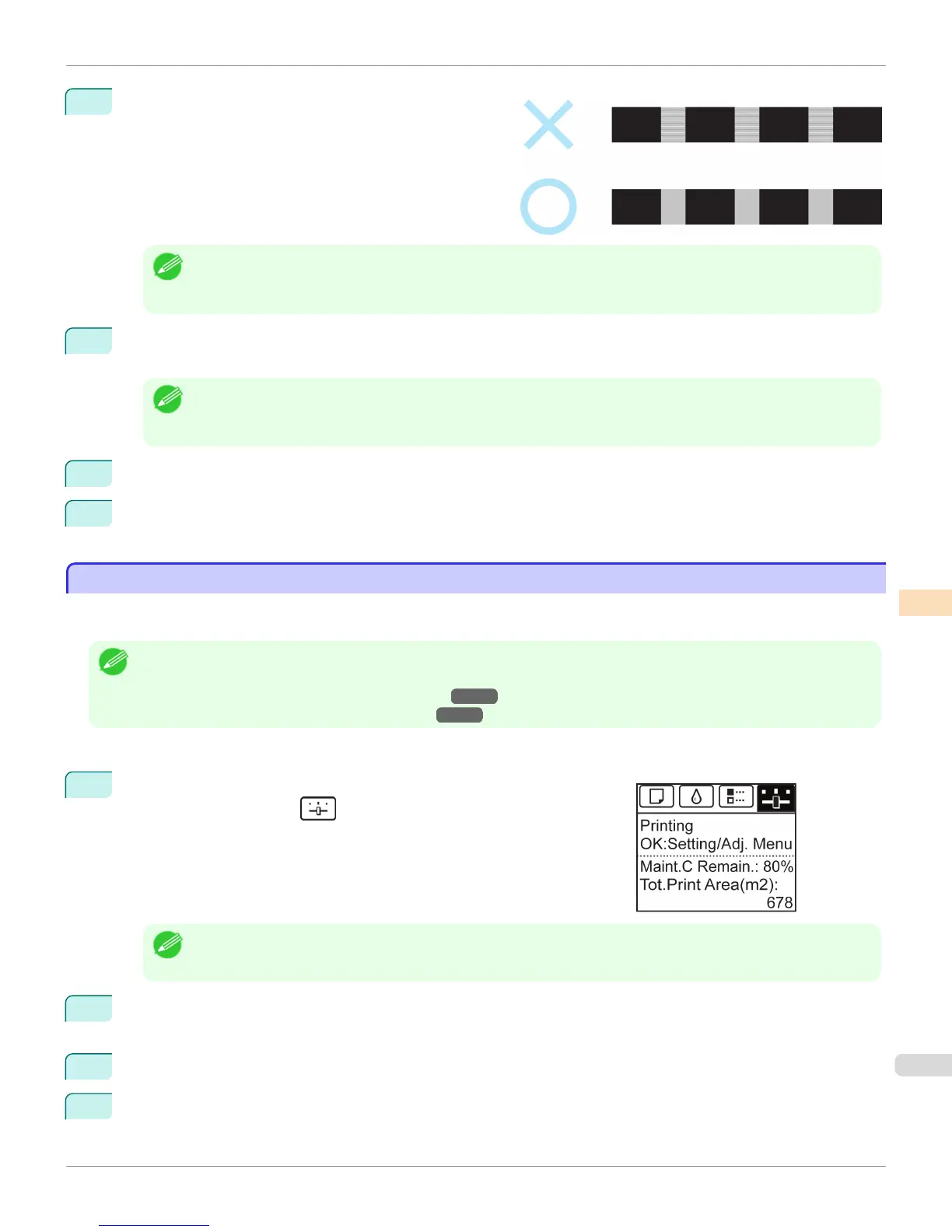

Examine test pattern A for adjustment. Determine the
pattern in which banding is least noticeable.
Note
• If banding seems least noticeable in two patterns but you cannot decide which one is better, choose an intermediate
value.
For example, choose 11 if you cannot decide whether pattern 10 or 12 is better.
9
Press
▲ or ▼ to select the pattern number you have decided, and then press the OK button.
Test pattern B is printed for adjustment.
Note
• If you printed test pattern A on a sheet, follow the instructions on the Display Screen and use another sheet of the
same type of paper.
Additionally, after test pattern B is printed, follow the instructions on the Display Screen and remove the sheet.
10 Examine test pattern B for adjustment. Determine the pattern in which banding is least noticeable.
11 Press ▲ or ▼ to select the pattern number you have decided, and then press the OK button.
The adjustment value is now registered, and adjustment is complete.
Fine-Tuning the Paper Feed Amount (Adj. Fine Feed)
Fine-Tuning the Paper Feed Amount (Adj. Fine Feed)
If the contrast is uneven or banding in different colors appears at 50 mm (2.0 in) intervals in printed documents, try
executing Adj. Fine Feed during printing to fine-tune the feed amount.
Note
• Always execute Adj. Quality before Adj. Fine Feed.
Once you execute Adj. Quality, the Adj. Fine Feed value will revert to 0.
(See "Automatic Banding Adjustment (Adj. Quality).") →P.612
(See "Manual Banding Adjustment (Adj. Quality).")
→P.613
Perform adjustment as follows.
1
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to se-
lect the Settings/Adj. tab ( ).
Note
• If the Tab Selection screen is not displayed, press the Menu button.
2 Press the OK button.
The Set./Adj. Menu is displayed.
3 Press ▲ or ▼ to select Adj. Fine Feed, and then press the OK button.
4 Press ▲ or ▼ to select a setting value in the range -5 to +5, and then press the OK button.
The setting is now applied.
iPF765 Fine-Tuning the Paper Feed Amount (Adj. Fine Feed)
User's Guide
Adjustments for Better Print Quality Adjusting the feed amount
615
