Canon imagePROGRAF iPF765 User Manual

Printheads
Printheads
Printhead ............................................................................................................................................................ 627
Checking for Nozzle Clogging ........................................................................................................................... 627
Cleaning the Printhead ....................................................................................................................................... 628
Replacing the Printhead ..................................................................................................................................... 629
Printhead
Printhead
A replacement Printhead.
• Printhead PF-04
Note
• For instructions on replacing the Printhead, see "Replacing the Printhead." →P.629

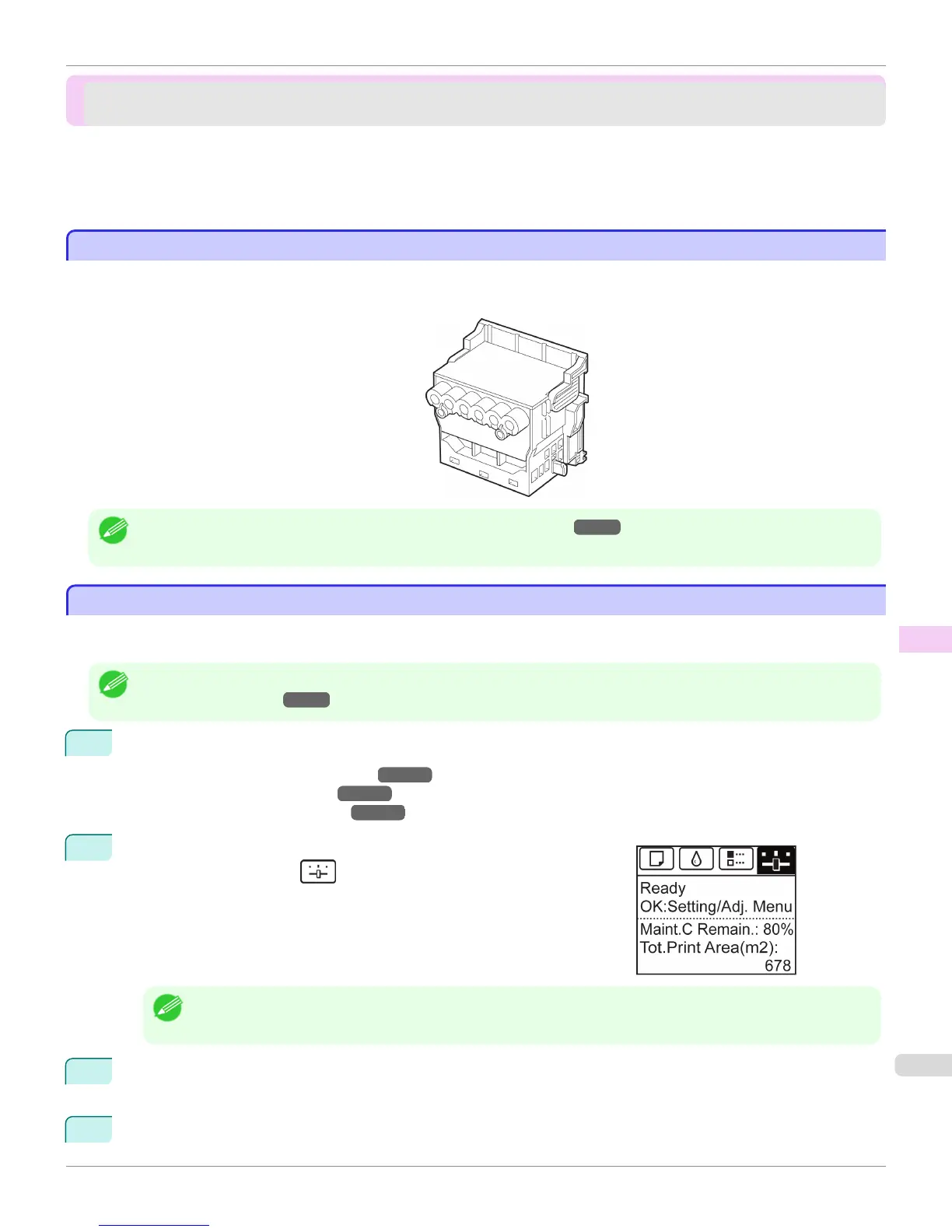

Checking for Nozzle Clogging
Checking for Nozzle Clogging
If printing is faint or affected by banding in different colors, make sure the Printhead nozzles are clear by printing a test
pattern to check the nozzles.
Note
• Nozzles are periodically checked to ensure they are clear. Configure the settings on the Control Panel menu in Nozzle Check.
(See "Menu Settings.") →P.500
1 Load unused paper.
• Attaching the Roll Holder to Rolls →P.443
• Loading Rolls in the Printer →P.446
• Loading Sheets in the Printer →P.465
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to se-
lect the Settings/Adj. tab (
).
Note
• If the Tab Selection screen is not displayed, press the Menu button.
3 Press the OK button.
The Set./Adj. Menu is displayed.
4 Press ▲ or ▼ to select Test Print, and then press the OK button.
iPF765 Printhead
User's Guide
Maintenance and Consumables Printheads
627
