Note
• To recover from Sleep mode, any button can be pressed except the Power button.
Control Panel Display
Control Panel Display
After the printer starts up, the Tab Selection screen is displayed.
Each of the four tabs presents status, menus, and error information related to the particular tab.
Types of tabs

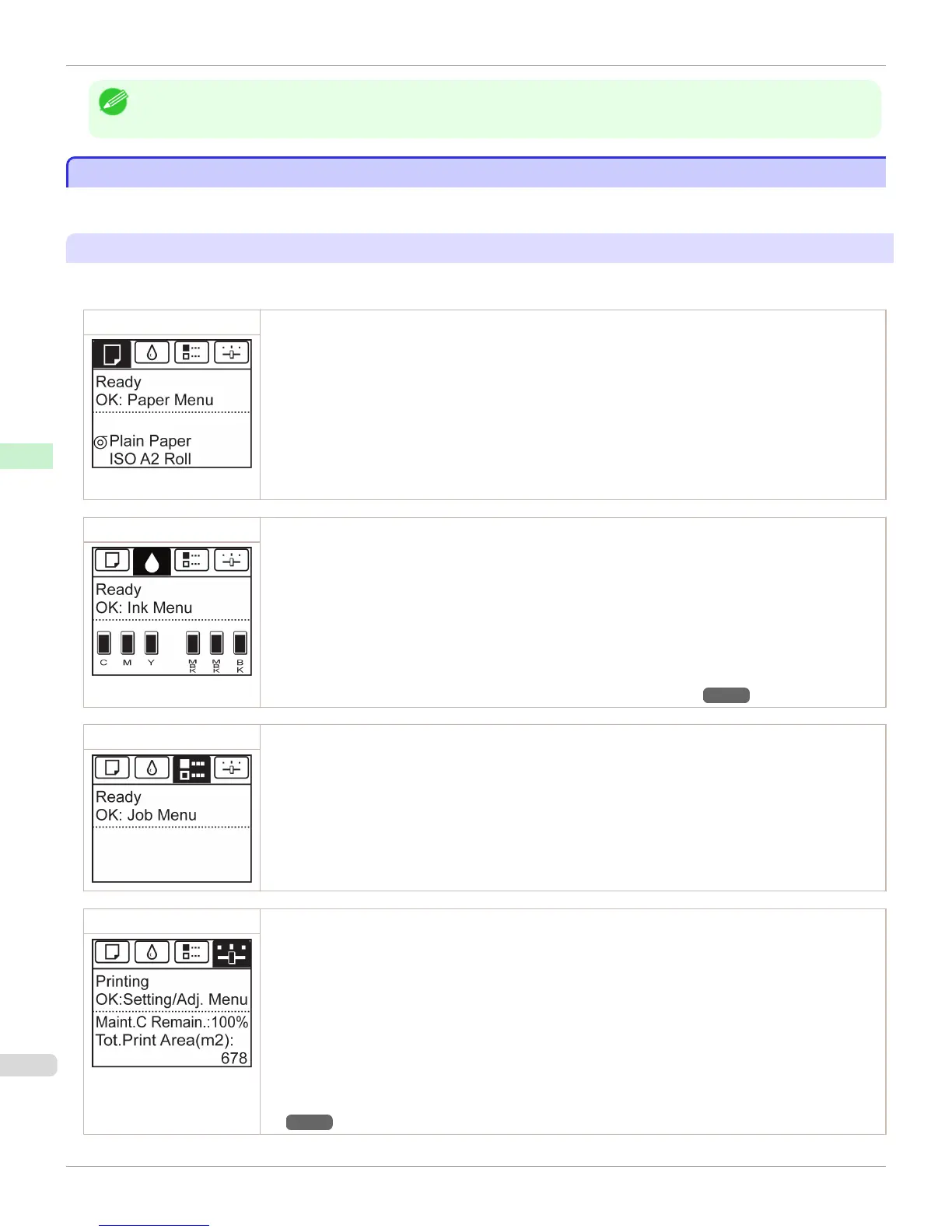

The Tab Selection screen presents four tabs. Each tab is represented by an icon in the top row. Press the ◀ or ▶
button to access other tabs.
Paper tab A tab indicating status and showing menus related to paper. Pressing the OK button when this tab is highlighted
will display the Paper Menu.
• Top line displayed
The paper icon is highlighted.
• Middle line displayed
Indicates the printer status and shows menu names.
• Bottom line displayed
The first and second lines display the paper type and size.
Ink tab A tab indicating status and showing menus related to ink. Pressing the OK button when this tab is highlighted
will display the Ink Menu.
• Top line displayed
The ink icon is highlighted.
• Middle line displayed
Indicates the printer status and shows menu names.
• Bottom line displayed
Here, the remaining ink level is indicated. (See "Checking Ink Tank Levels.") →P.624
Job tab A tab indicating status and showing menus related to print jobs. Pressing the OK button when this tab is high-
lighted will display the Job Menu menu.
• Top line displayed
The job icon is highlighted.
• Middle line displayed
Indicates the printer status and shows menu names.
Settings/Adj. tab A tab indicating status and showing menus related to settings and adjustment. Pressing the OK button when
this tab is highlighted will display the Set./Adj. Menu.
• Top line displayed
The settings/adjustment icon is highlighted.
• Middle line displayed
Indicates the printer status and shows menu names.
• Bottom line displayed
The remaining Maintenance Cartridge capacity is shown on the first line and Tot.Print Area on the second.
The display unit for Tot.Print Area can be specified in the Length Unit menu. (See "Menu Settings.")
→P.500
Control Panel Display iPF765
User's Guide
Control Panel Operations and Display Screen
480

Canon imagePROGRAF iPF765 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Storage media	HDD
Internal storage capacity	250 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
