Canon PC430 - Fixing Assembly; Construction; Detaching the Fixing Assembly

A. Fixing Assembly
1. Construction
Note:
1. The fixing film is made of
special material; do not touch it
or leave dust on it.
2. The pressure exerted by the
lower roller is controlled by the
pressure spring built into the
bushing.
3. The copier does not have an
adjustment mechanism for roller
pressure.
COPYRIGHT © 1998 CANON INC. CANON PC400/420/430,FC200/220 REV.0 JAN.1998 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6 FIXING SYSTEM
6-7
➀
➁
➀➁
➂
➂
➃
➃
Fixing heater
Fixing film
Inlet guide
Presure roller
(lower roller)

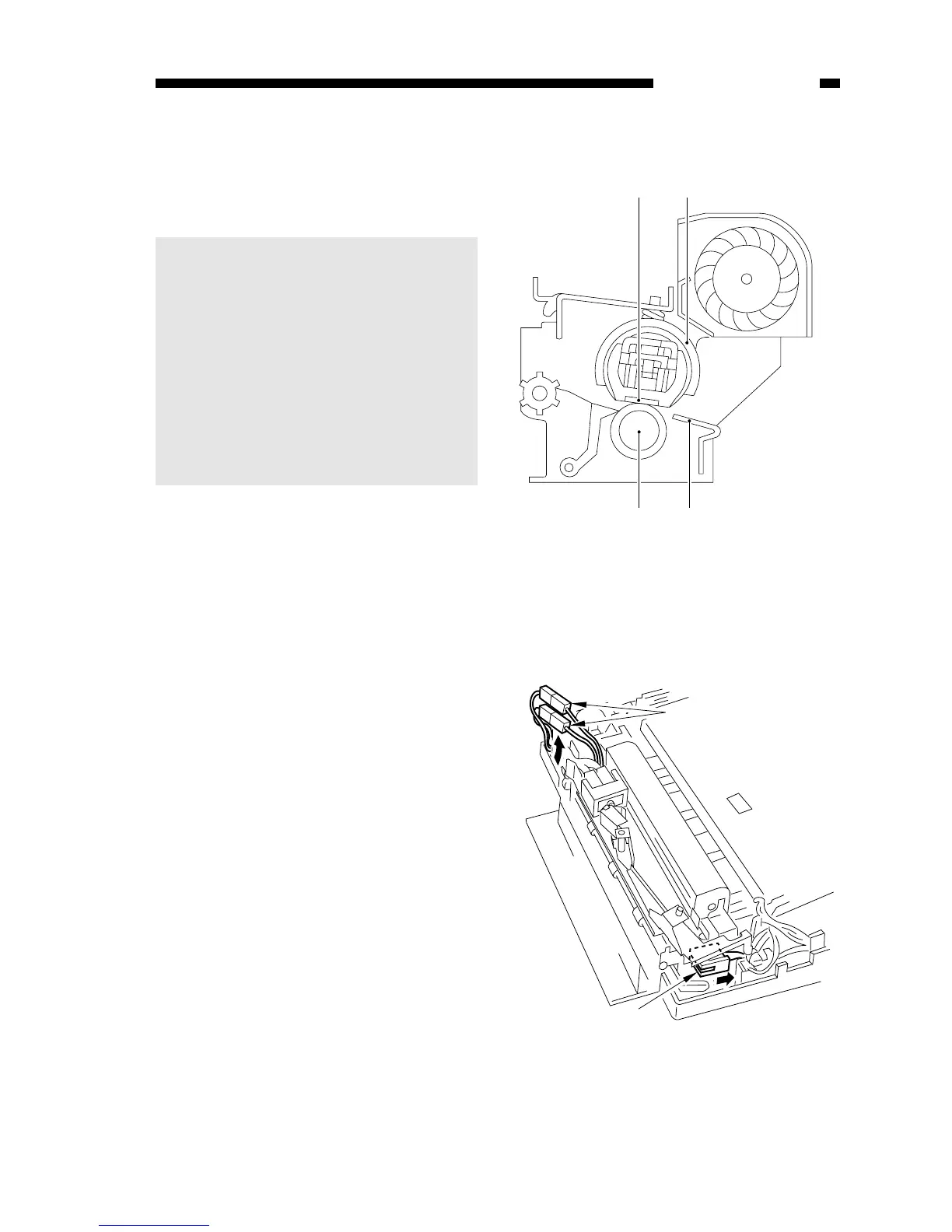

Figure 6-201A
➀
➀
Figure 6-202A
2. Detaching the Fixing Assembly
1) Detach the body cover.
2) Disconnect the three connectors
q.
