FIGURE
&
KEY NO.
PART NUMBER
R
A
N
K
Q’
T
Y
DESCRIPTION SERIAL NUMBER / REMARKS
1
3
5
4
NOTE:This assembly does not include the part shown with key No.2.
2
370 -
FG5 - 9612 - 000
1
DELIVERY COVER ASSEMBLY
WHITE
FG5 - 9613 - 000
1
DELIVERY COVER ASSEMBLY
GRAY
1
FB2 - 5016 - 000
3
ROLLER
2
FB2 - 9653 - 000
1
LABEL, "CAUTION, HIGH TEMP."
SEE NOTE JAPANESE
ENGLISH/FRENCH
FB4 - 0365 - 000
1
LABEL, "CAUTION, HIGH TEMP."
SEE NOTE GERMAN
SPANISH/ITALIAN
FB4 - 0370 - 000
1
LABEL, "CAUTION, HIGH TEMP."
SEE NOTE CHINESE
FC2 - 5845 - 000
1
LABEL, "CAUTION, HIGH TEMP."
SEE NOTE KOREAN
3
FB4 - 0309 - 000
1
LEVER, RELEASE
4
FS5 - 2796 - 000
3
SPRING, TENSION
5
FS6 - 2169 - 000
1
SPRING, TENSION

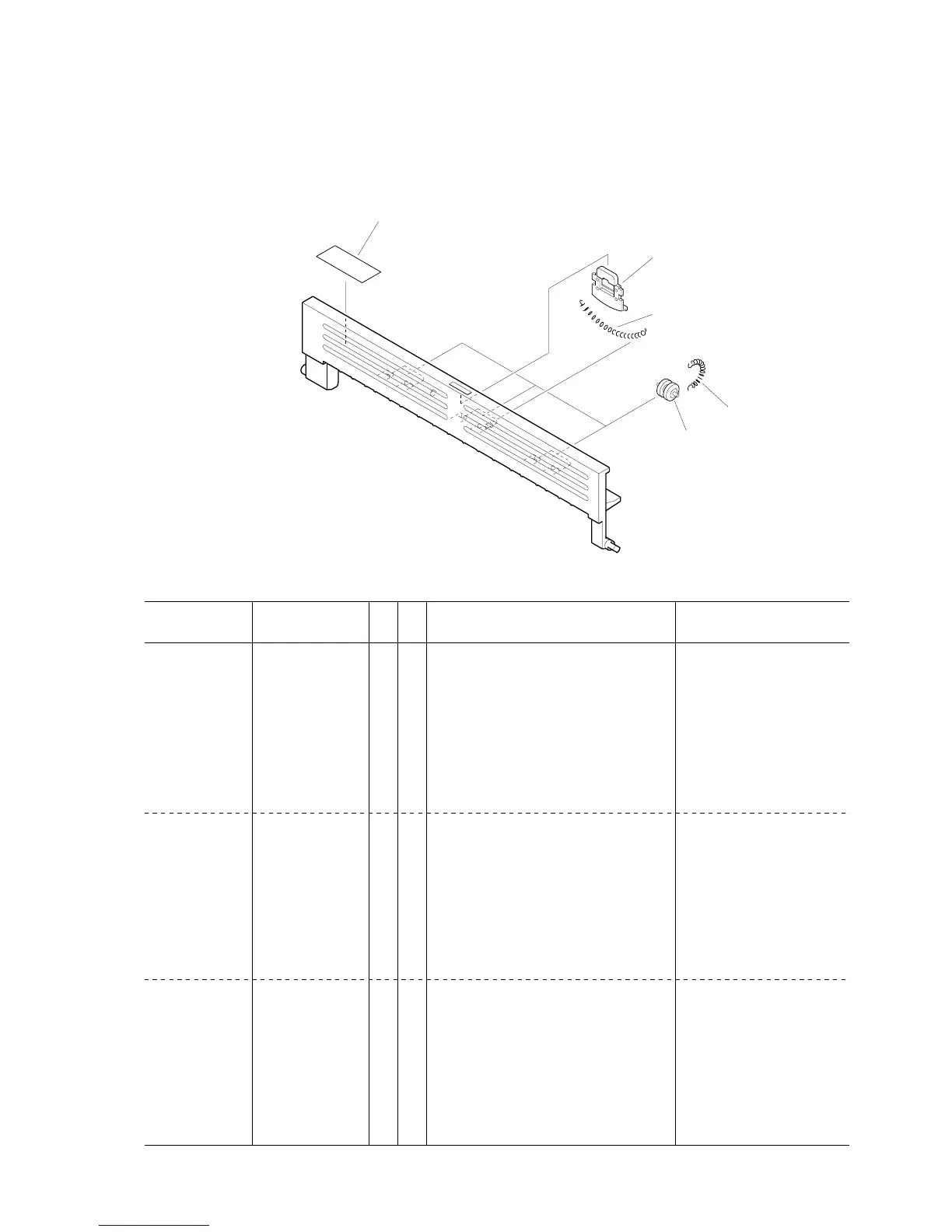

FIGURE 370
DELIVERY COVER ASSEMBLY
COPYRIGHT © 1998 CANON INC. CANON FC220/PC420/430/FC200/PC400 REV.0 JAN. 1998 PRINTED IN JAPAN [IMPRIME AU JAPON]
