CHAPTER 1 GENERAL DESCRIPTION
1-17
V. IMAGE FORMATION
A. Outline

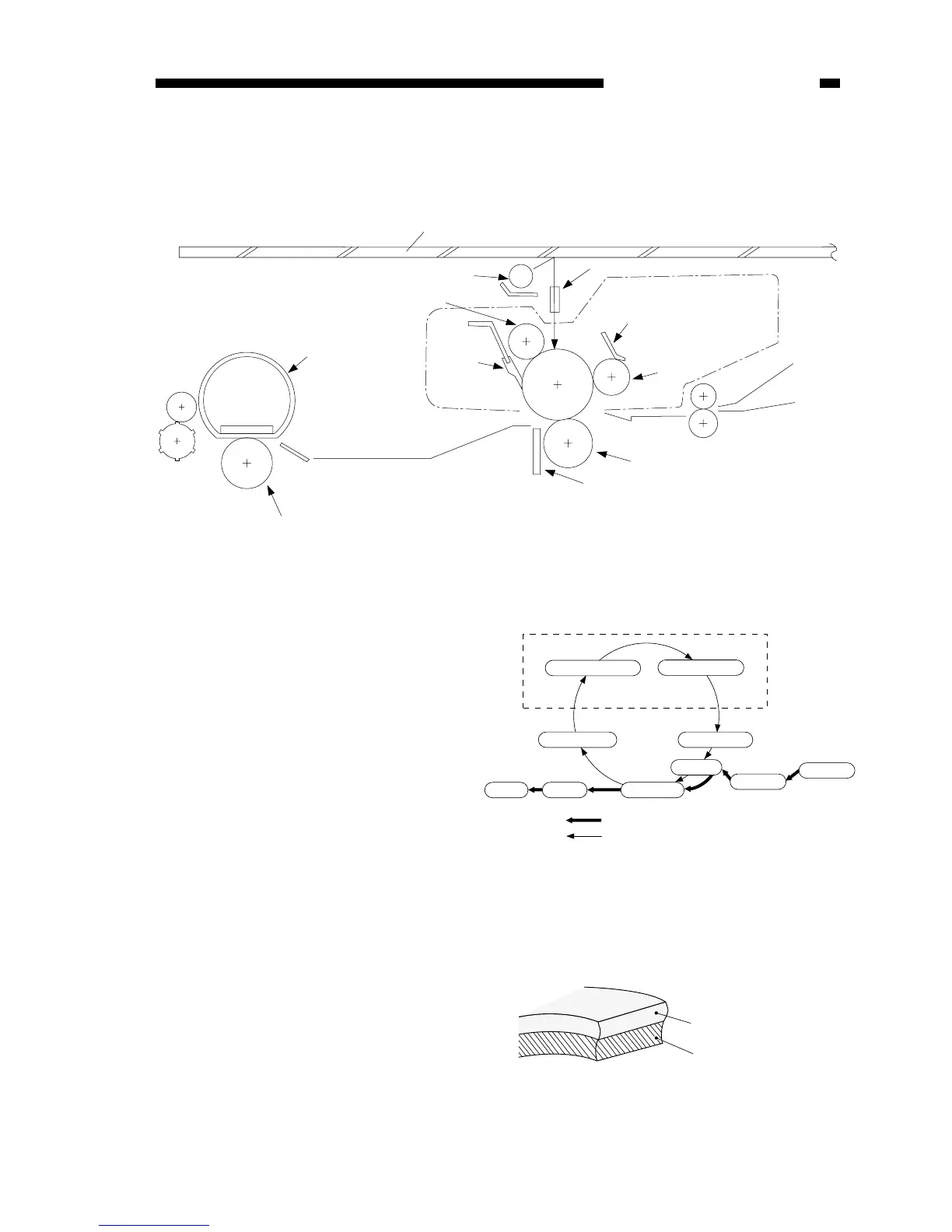

Figure 1-501A
The copier is an indirect photorepro
graphic system constructed as shown in
Figure 1-501A.
The image formation process con
sists of seven steps as discussed below.
Step 1 : Primary charging (negative)
Step 2 : Image exposure
Step 3 : Development (AC and DC bias)
Step 4 : Transfer (negative)
Step 5 : Separation
Step 6 : Fixing
Step 7 : Drum cleaning
Figure 1-502A
The photosensitive drum has a layer
construction: the photoconductive layer
on the outside and the conductive alu
minum base, inside.
Figure 1-503A
Delivery
: Flow of copy paper
: Rotation of drum
4. Transfer
Latent static Image Formation
2. Image exposure
3. Development
7. Drum cleaning
Registration
Multifeeder
6. Fixing
5. Separation
1. Primary charging
Photoconductive layer
Aluminum base
