Canon PC430 - Of Electrical Parts; Sensors and Solenoids

COPYRIGHT © 1998 CANON INC. CANON PC400/420/430,FC200/220 REV.0 JAN.1998 PRINTED IN JAPAN (IMPRIME AU JAPON)
10-34
CHAPTER 10 TROUBLESHOOTING
VI. ARRANGEMENT AND FUNCTIONS OF
ELECTRICAL PARTS
A. Sensors and Solenoids

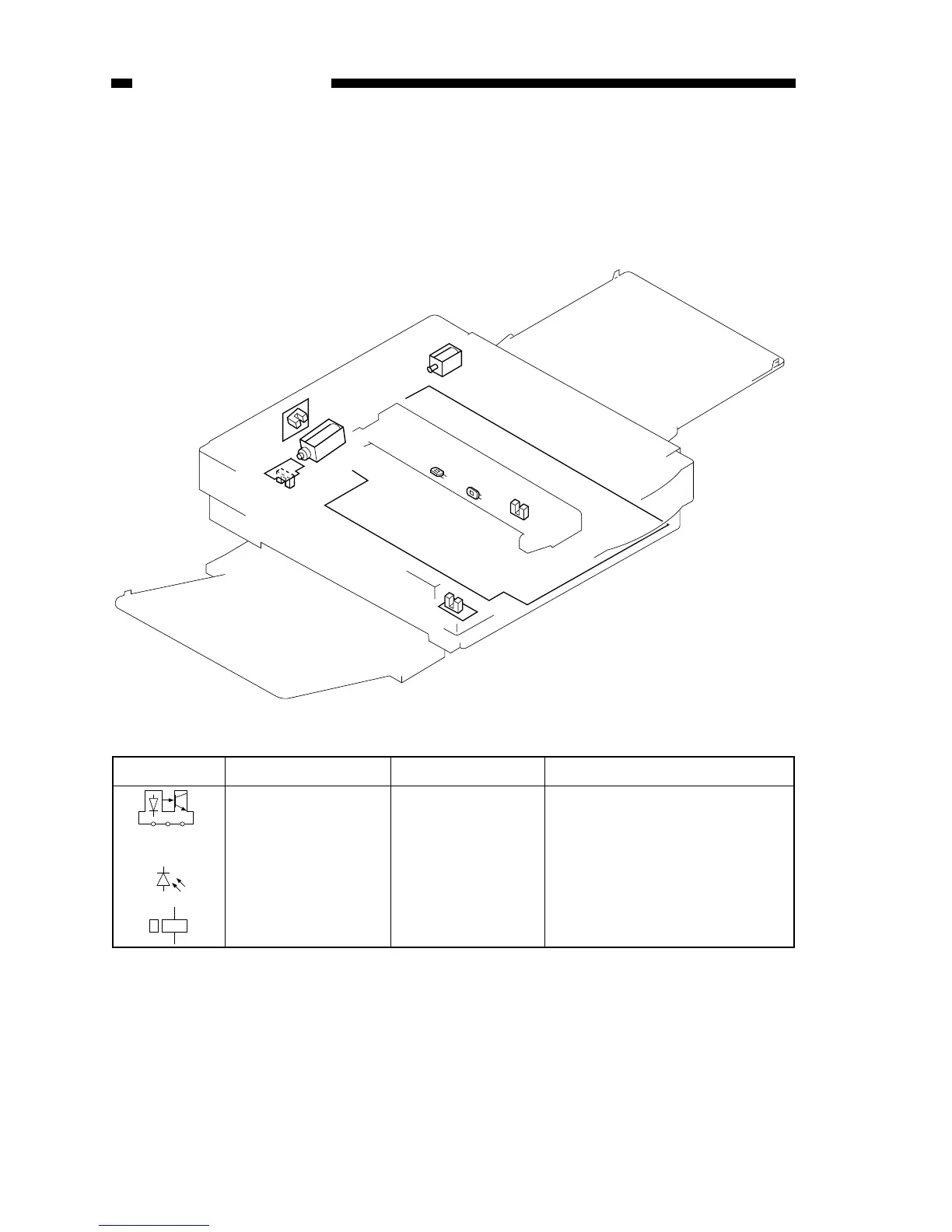

Figure 10-601A
Q902
SL2
Q901
Q801
Q131
PD601
PD602
SL1
Symbol Name Notation Description
Photointerrupter
Photodiode
Solenoid
Q131
Q801
Q901
Q902
PD601
PD602
SL1
SL2
Pick-up assembly paper sensor
Delivery assembly paper sensor
Motor rotation sensor
Copyboard position sensor
Intensity sensor
AE sensor
Pick-up/registration solenoid
Copyboard drive solenoid
