2. Lens Array

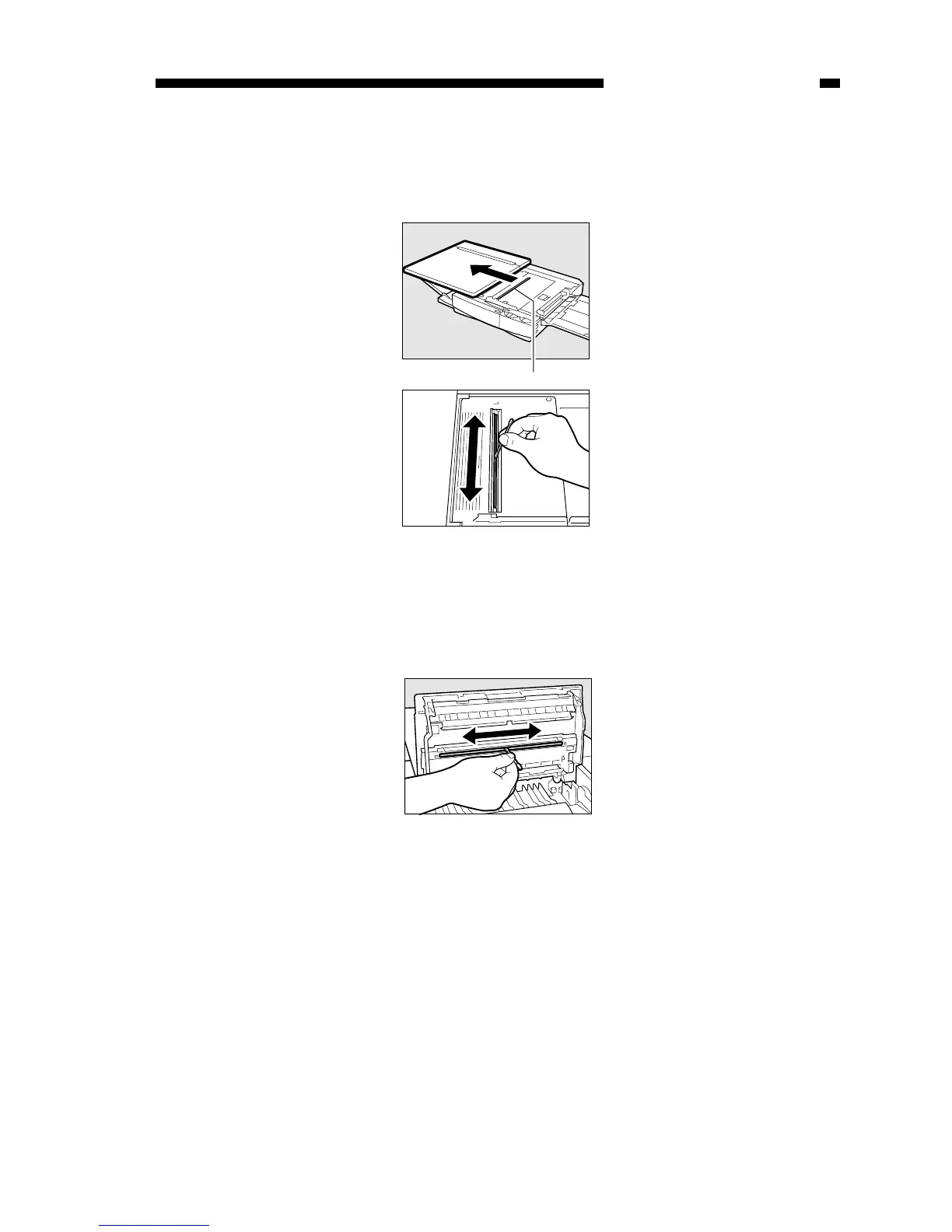

1) Move the copyboard to the left until it stops.
2) Put a cotton wad in the lens array groove, and move it back and forth lightly.
Fiber lens (face side)
Figure 1-401G
3) Open the upper cover, and remove the cartridge.
4) Put a flat-tipped cotton wad in the lens array (rear) groove, and move it back and
forth.
Figure 1-402G
