CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-1
I. OUTLINE
The pick-up roller starts to rotate when the Copy Start key is pressed in the case of
the PC420/430/FC220 and when paper is inserted, i.e., in response to the activation of
the pick-up sensor (Q131), in the case of the PC400/FC200.
The copy paper is controlled by the registration roller so that its leading edge
matches that of the image on the photosensitive drum; the paper is then moved to the
transfer, separation, and fixing assemblies before it reaches the copy tray.
The delivery of copy paper is monitored by the delivery sensor (Q801); if copy paper
fails to reach or move past the sensor, the copier identifies the condition as a jam and
flashes ‘Jam’ on the control panel.

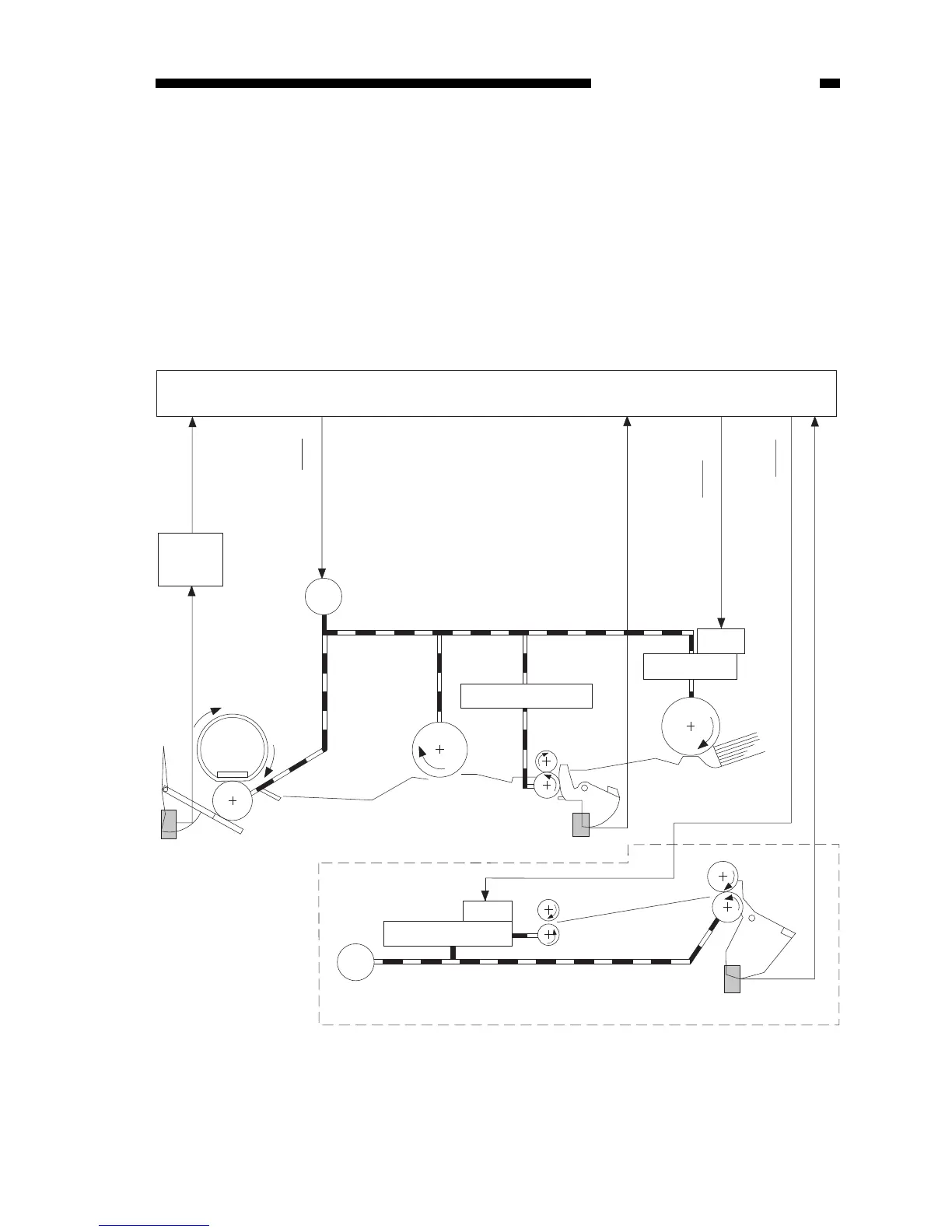

Figure 5-101
Registration solenoid drive command (RGSD)
Pick-up sensor signal
M1
M1
DC controller/DC power supply PCB
Control
panel
PCB
Pick-up
solenoid
SL1
SL1
Main motor
Delivery
sensor
(Q801)
Fixing
assembly
Photo-
sensitive
drum
Pick-up sensor
(Q131)
Registration
roller
Pick-up clutch*
Pick-up
roller
Registration clutch*
Pick-up
roller
Main motor
Registration
solenoid
Registration roller
Pick-up sensor (Q131)
(PC400/FC200)
*Spring clutch
Main motor drive command (MMD)
Pick-up solenoid drive command (PUSD)
Delivery sensor signal
Pick-up sensor signal
Registration clutch*
