Canon PC430 - Control Panel Assembly

FIGURE
&
KEY NO.
PART NUMBER
R
A
N
K
Q’
T
Y
DESCRIPTION SERIAL NUMBER / REMARKS
5
2
4
1
3
6
6
6
6
130 - FG5 - 9553 - 000
1
CONTROL PANEL ASSEMBLY FC220,PC420,430
WHITE
FG5 - 9554 - 000
1
CONTROL PANEL ASSEMBLY FC220,PC420
GRAY
1
FB4 - 0035 - 000
1
KEY TOP, COPY
2
FB4 - 0036 - 000
1
KEY TOP, PLUS
3
FB4 - 0037 - 000
1
KEY TOP, CLEAR
4
FB4 - 0038 - 000
1
KEY TOP, AE SETTING WHITE
FB4 - 0318 - 000
1
KEY TOP, AE SETTING GRAY
5
FB4 - 0039 - 000
1
PANEL, CLEAR
6
FB4 - 0325 - 000
4
SPRING, COMPRESSION

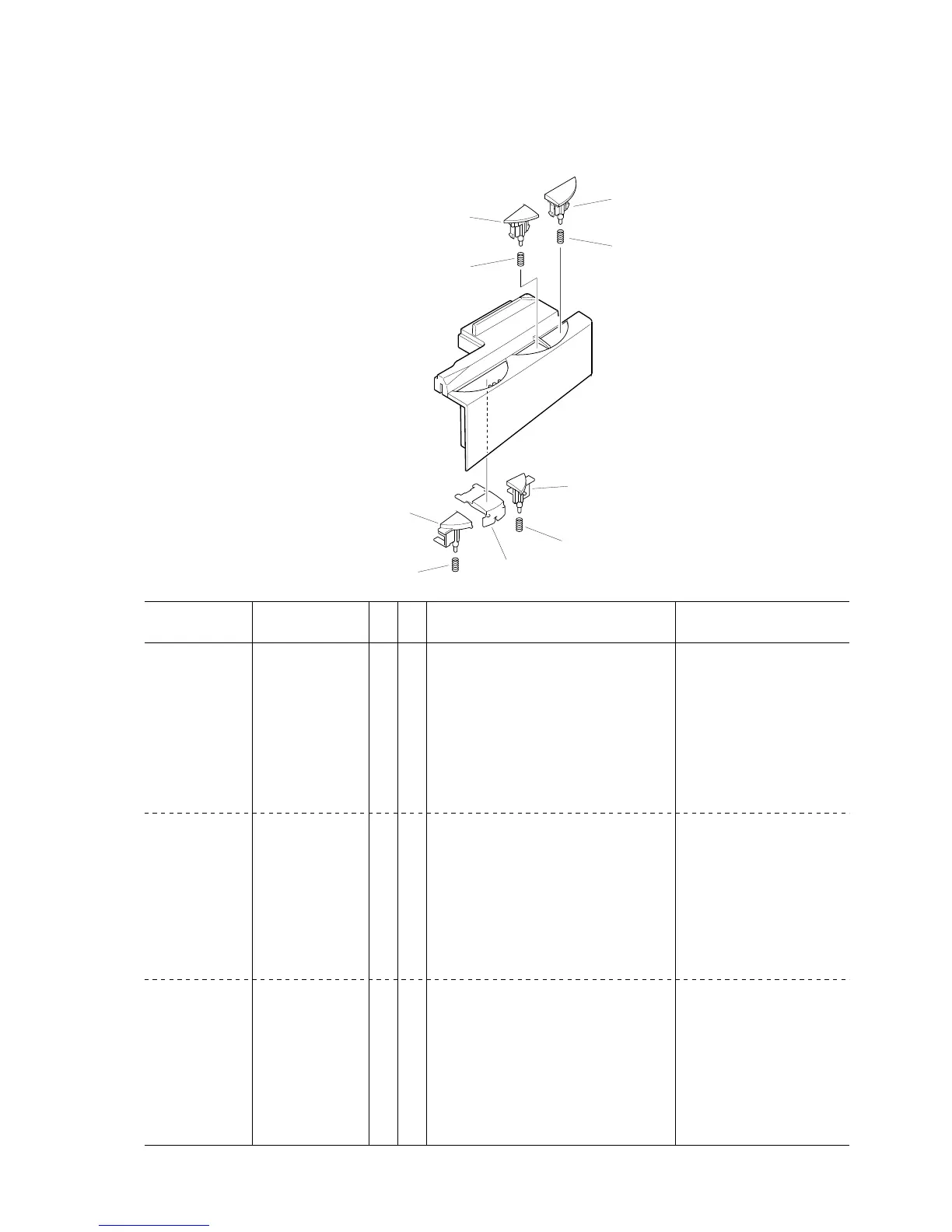

FIGURE 130
(FC220,PC420,PC430)
CONTROL PANEL ASSEMBLY
