Canon PC430 - Copyboard Drive Assembly

FIGURE
&
KEY NO.
PART NUMBER
R
A
N
K
Q’
T
Y
DESCRIPTION SERIAL NUMBER / REMARKS
7
7
2
3
1
6
4
8
501
502
5
(J905)
240 - FG5 - 9534 - 000
1
COPYBOARD DRIVE ASSEMBLY
1
FB1 - 7356 - 000
1
LINK, REGISTRATION, 1
2
FB2 - 9639 - 000
1
PLATE, GEAR SUPPORT
3
FB2 - 9645 - 020
1
LINK, REGISTRATION, 2
4
FB4 - 0353 - 000
1
LINK, REGISTRATION, 4
5
FG5 - 4800 - 000
1
COPYBOARD POSITION SENSOR PCB J905
6
FS5 - 2347 - 000
1
SPRING, TENSION
7
FS6 - 0355 - 000
2
GEAR, 16T
8
FS6 - 2728 - 000
1
SPRING, TENSION
501
XB1 - 2300 - 409
10
SCREW,MACH.,TRUSS HEAD,M3X4
502
XB6 - 7300 - 409
2
SCREW,TP,M3X4

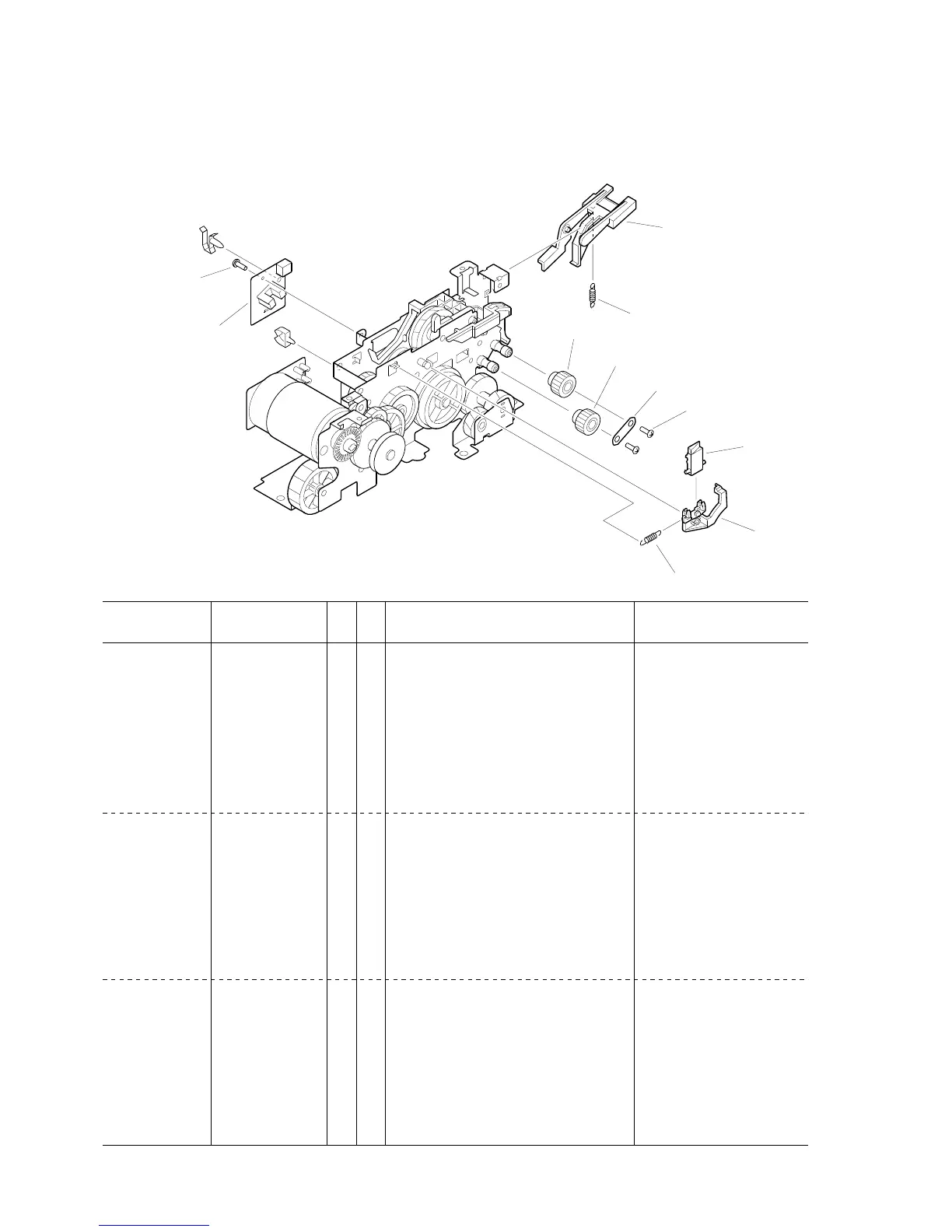

FIGURE 240
COPYBOARD DRIVE ASSEMBLY
