CHAPTER 6 ARRANGEMENT AND FUNCTIONS OF ELECTRICAL PARTS
6-1
CHAPTER 6 ARRANGEMENT AND FUNCTIONS OF
ELECTRICAL PARTS
A. Sensors and Solenoids
Q902
SL2
Q901
Q801
Q131
PD601
PD602
SL1
6

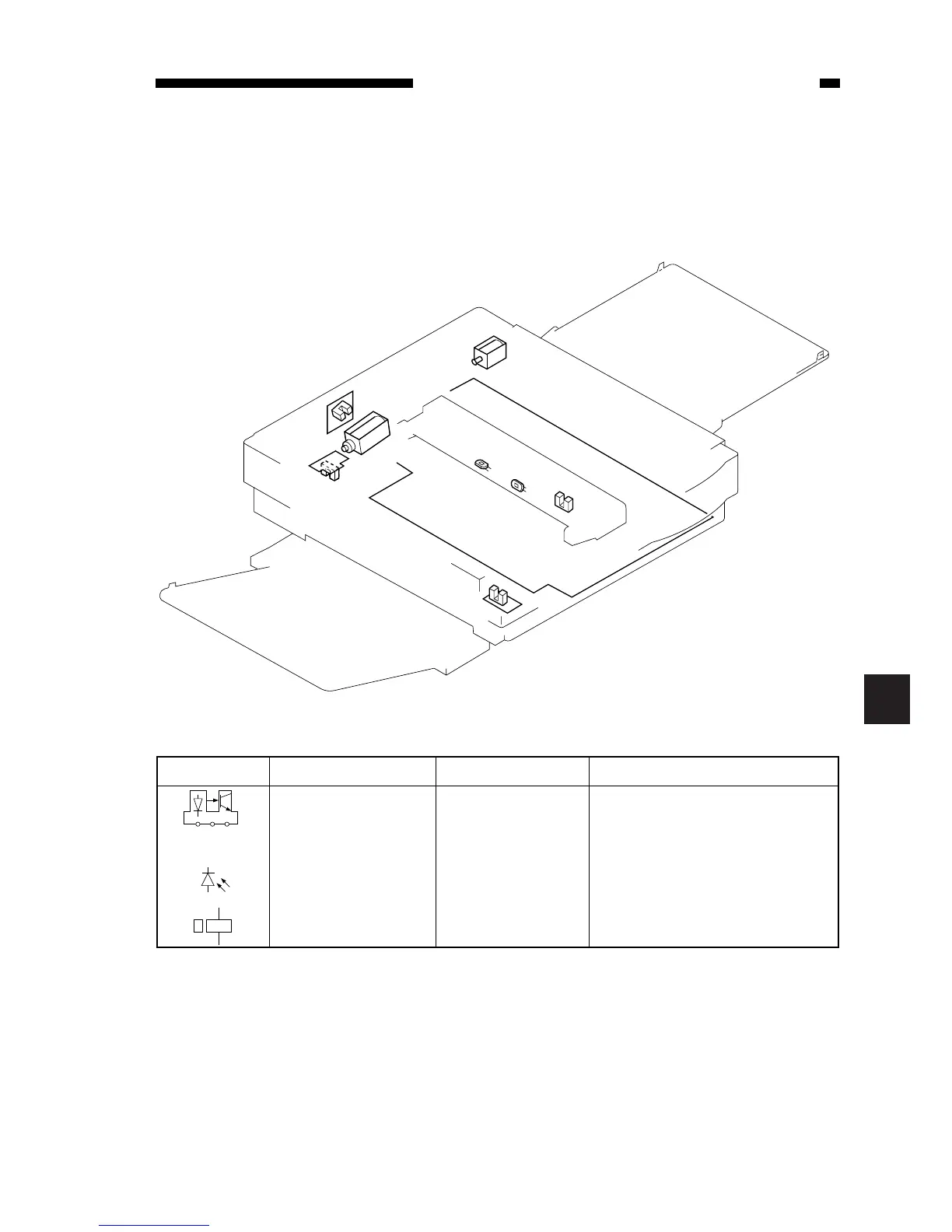

Figure 6-1A
Symbol Name Notation Description
Photointerrupter
Photodiode
Solenoid
Q131
Q801
Q901
Q902
PD601
PD602
SL1
SL2
Pick-up assembly paper sensor
Delivery assembly paper sensor
Motor rotation sensor
Copyboard position sensor
Intensity sensor
AE sensor
Pick-up/registration solenoid
Copyboard drive solenoid
