A.Pick-Up Roller Assembly
1. Detaching the Pick-Up Roller
a. PC420/430/FC220
1) Detach the body cover.
2) Disengage the hook
q, and detach
the solenoid w.

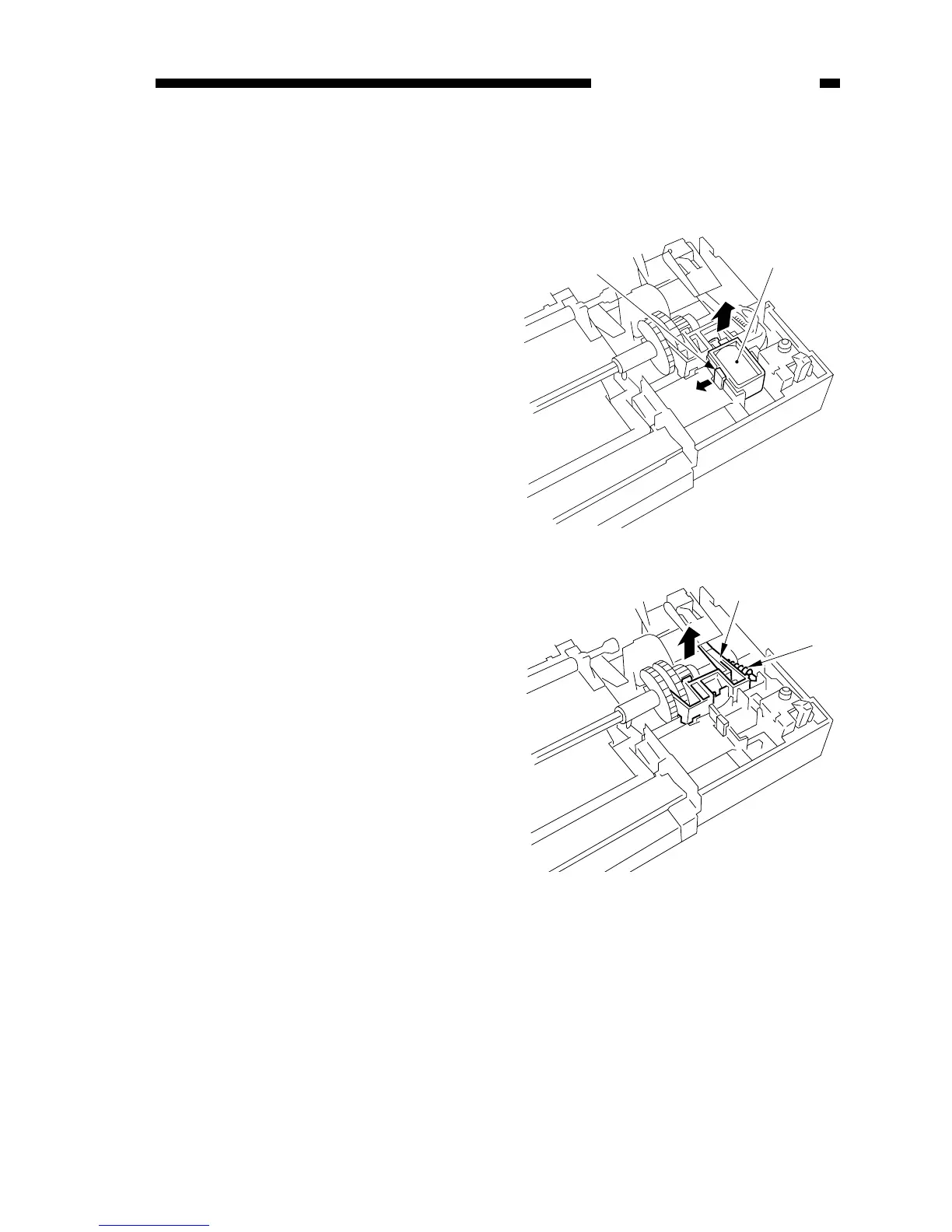

Figure 5-501A (right rear view)
Figure 5-502A
3) Remove the spring e, and detach
the claw r of the control ring by
pulling it up.
➀
➁
➂
➃
