COPYRIGHT © 1998 CANON INC. CANON PC400/420/430,FC200/220 REV.0 JAN.1998 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 EXTERNALS/AUXILIARY MECHANISMS
7-11
C. DC Controller/DC Power
Supply PCB
1. Detaching the DC Controller/DC
Power Supply PCB
1) Detach the body cover.
2) Remove the drive release arm q.
3) Remove the screw w, and discon-
nect the two connectors e.
4) Disconnect the four fastons r.
5) Detach the bottom cover.

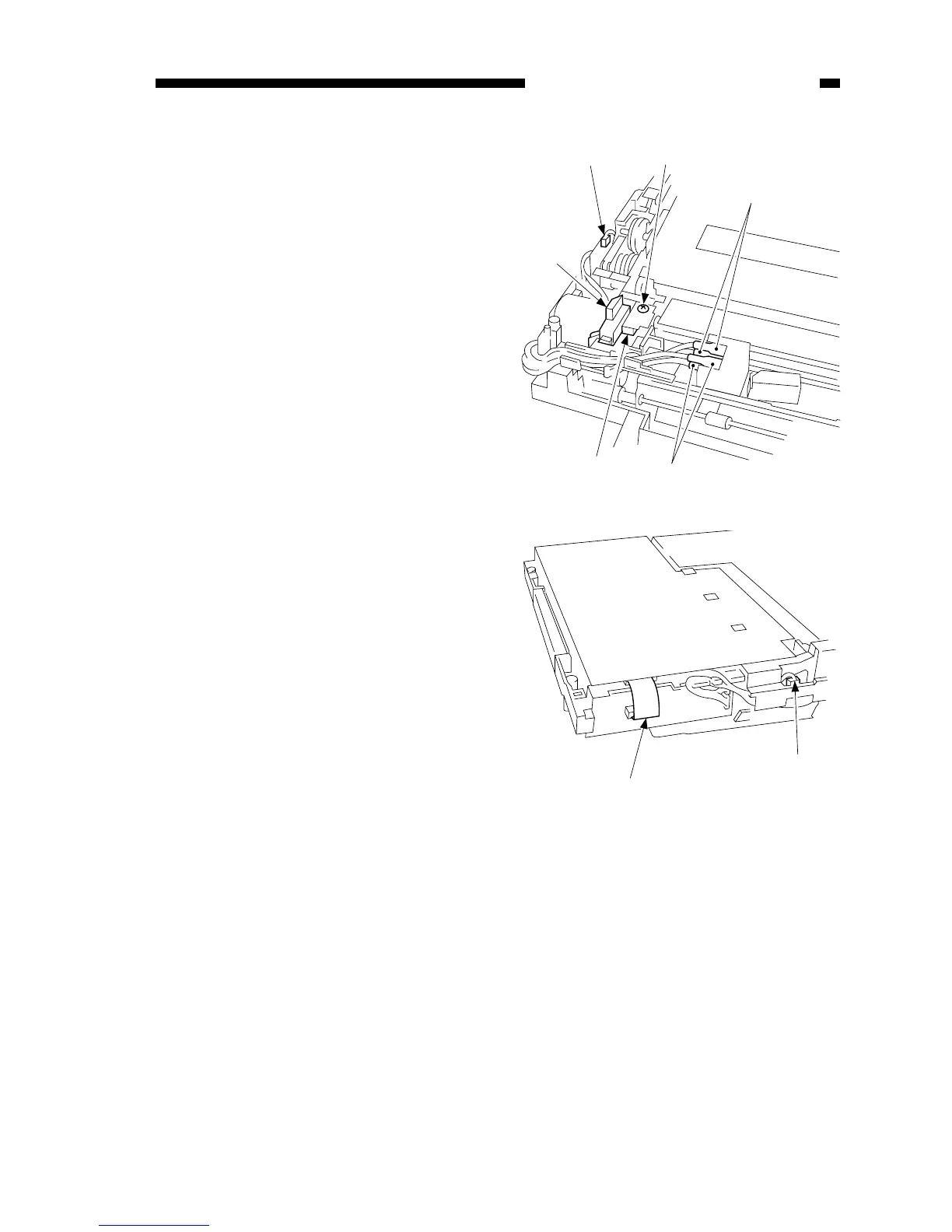

Figure 7-201C
6) Hold the flat cable t with both
hands, and detach them from the
connector by lifting them straight up.
7) Disconnect the connector y.
Figure 7-202C (front)
To Next Page
