CHAPTER 10 TROUBLESHOOTING
10-35

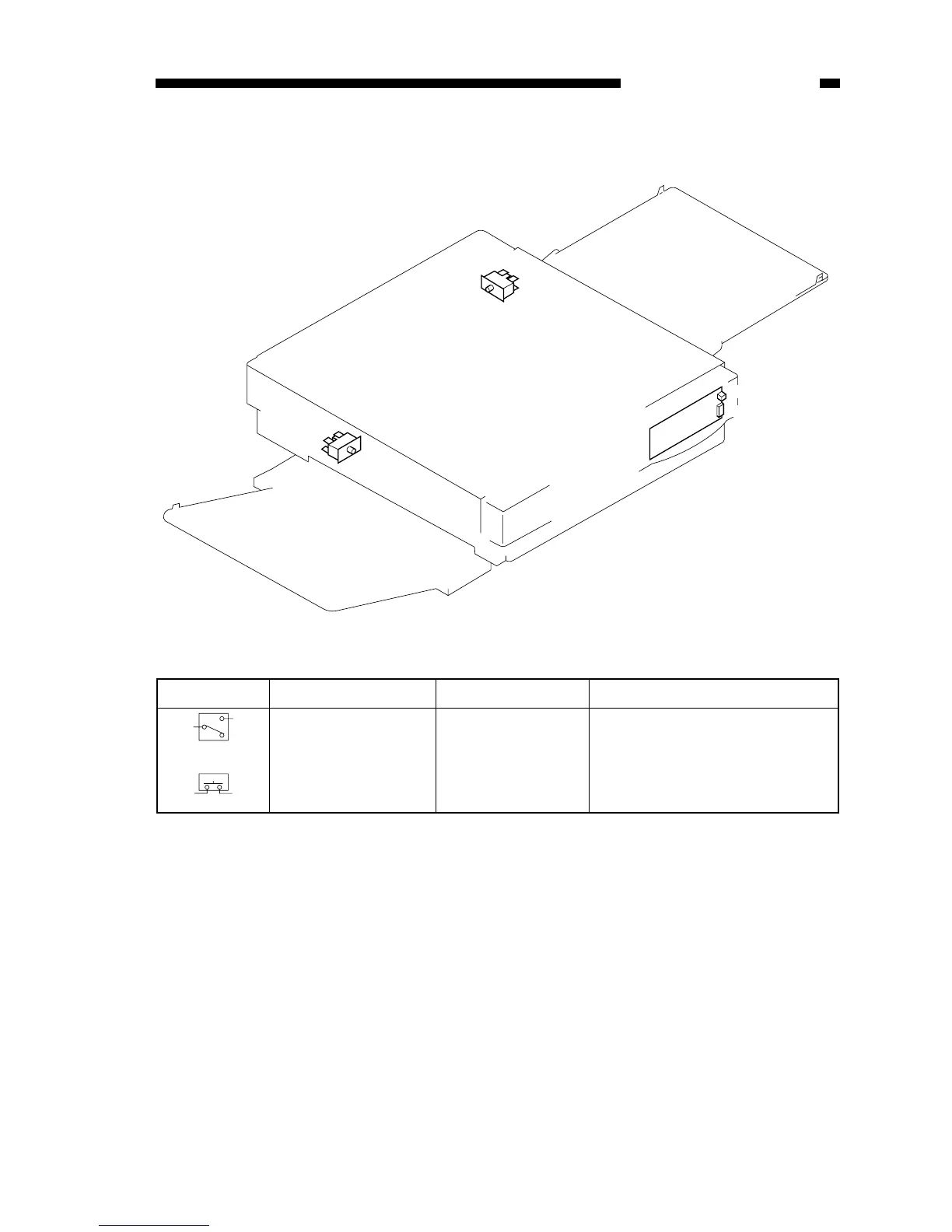

Figure 10-601B
SW2
SW604
SW606
SW1
Symbol Name Notation Description
Switch
Switch
SW1
SW2
SW604
SW606
Top cover switch
Delivery assembly door switch
Power switch
Density 3-setting switch
B. Switches
