Canon PC430 - Lamp, Heater, Motor, and Others

CHAPTER 6 ARRANGEMENT AND FUNCTIONS OF ELECTRICAL PARTS
6-3
C. Lamp, Heater, Motor, and Others
M1
FU2
TH1
H1

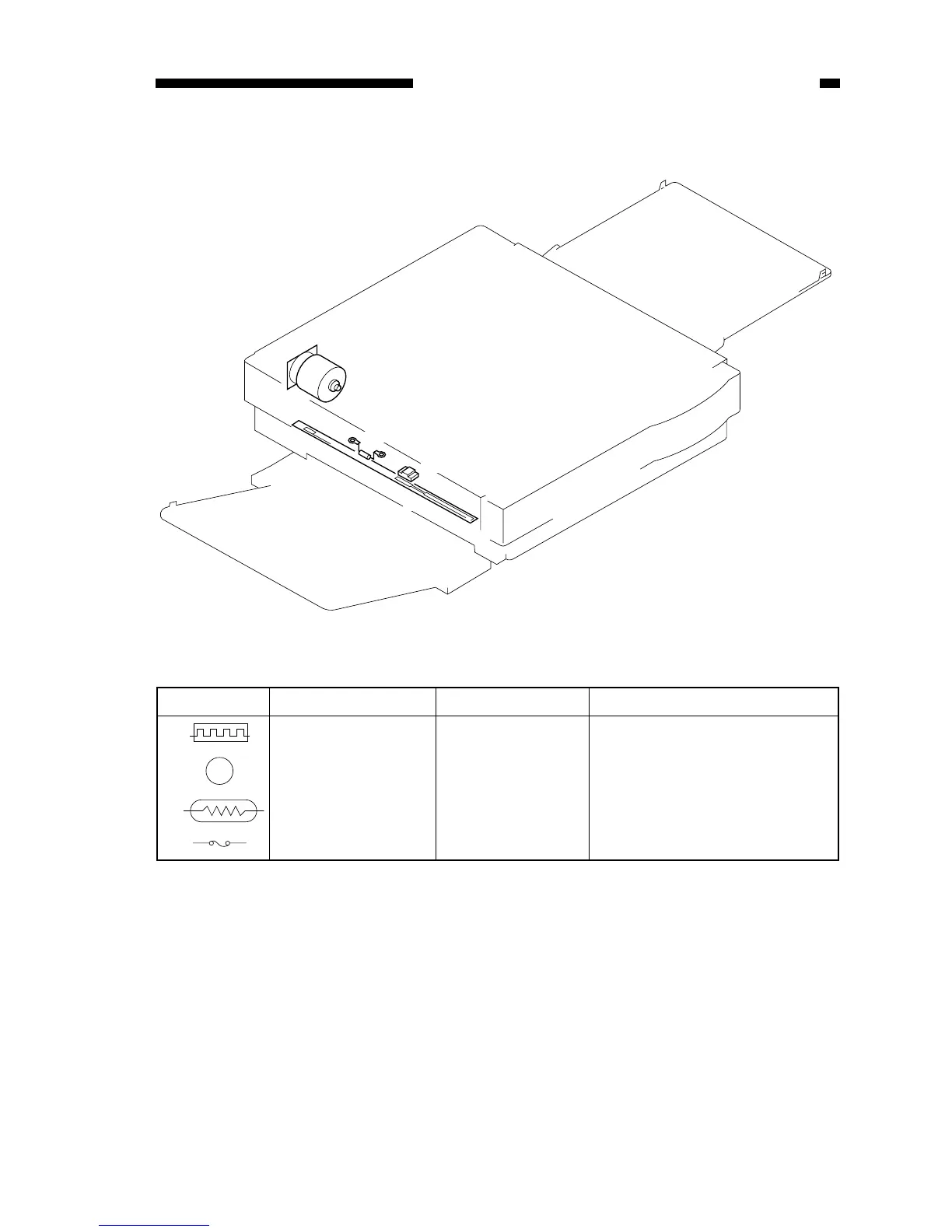

Figure 6-1C
Symbol Name Notation Description
Heater
Motor
Thermistor
Thermal fuse
H1
M1
TH1
FU2
Fixing heater
Main motor
Fixing heater temperature detection
Fixing heater overheating detection
M
